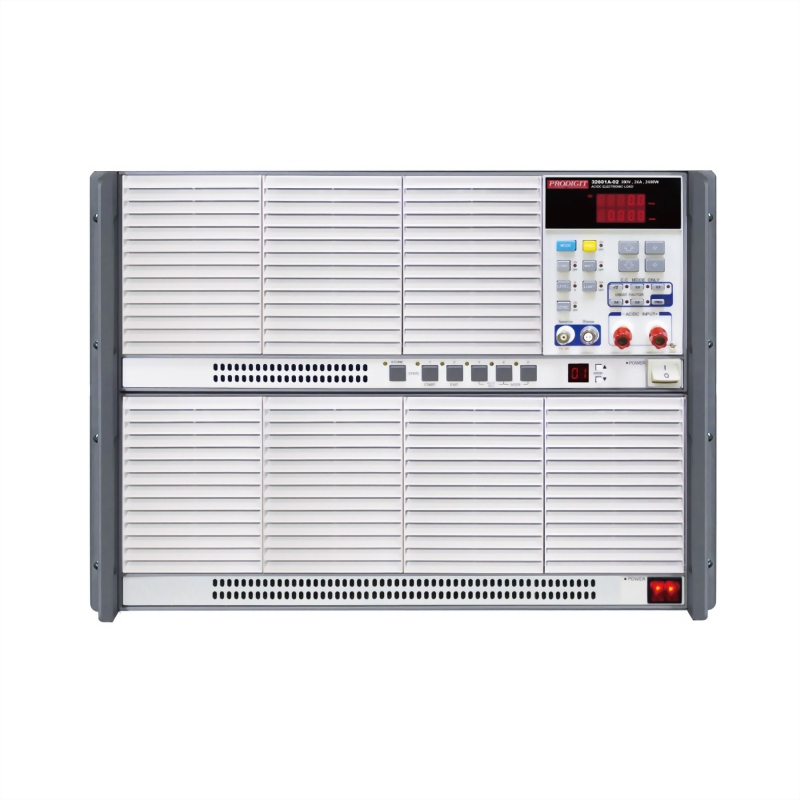

32601A-02 AC & DC Electronic Load 380V , 24A , 2400W
380V , 24A , 2400W
Model :
32601A-02
- The 3260A Series is a 300V High power AC and DC Load in one unit, it provides an ideal testing solution for UPS, AVR, D/A inverter, especially for step or square waveform UUT
- Each High power Series AC&DC Load has it own control and display panel, and with 5 states Recall / Store memory which provides load set-up more efficiently
- Adjustable power factor setting (PF, Range: 1, 0.85 ~ -0.85) extends the simulation of test environment
- Built-in GO/NG meter check function offers brief test result diagnosis for production, QC test throughput
- Voltage, Current, Watt and VA vaule display.
- CC、Linear CC、CR, and Crest Factor mode.
- GPIB/RS232 Interface and 5 states Recall/Store Memory.
- Power factor (PF) adjustable : 1, 0.85 ~ -0.85.
- Threshold Upper/Lower limit capability.
- Protections against V, I, W, and ℃.
- Dual 4 1/2 Meter Display for Voltage, Current, Watt and VA.
- Suitable for Sine, Square, Step wave.
