• 3300G is a 4 Channels 1200W Mainframe which accepts up to four 3310G / 3310F series Load Module.
  • 3300F is a 4 Channels 1200W Mainframe which accepts up to four 3310F series Load Module.
  • 3300C is a 4 Channels 1200W Mainframe which accepts up to four 3310D / 3250A / 3330A series Load Module.
  • 3301A is a 4 Channels 1200W Mainframe which accepts up to four 3320 series Load Module.

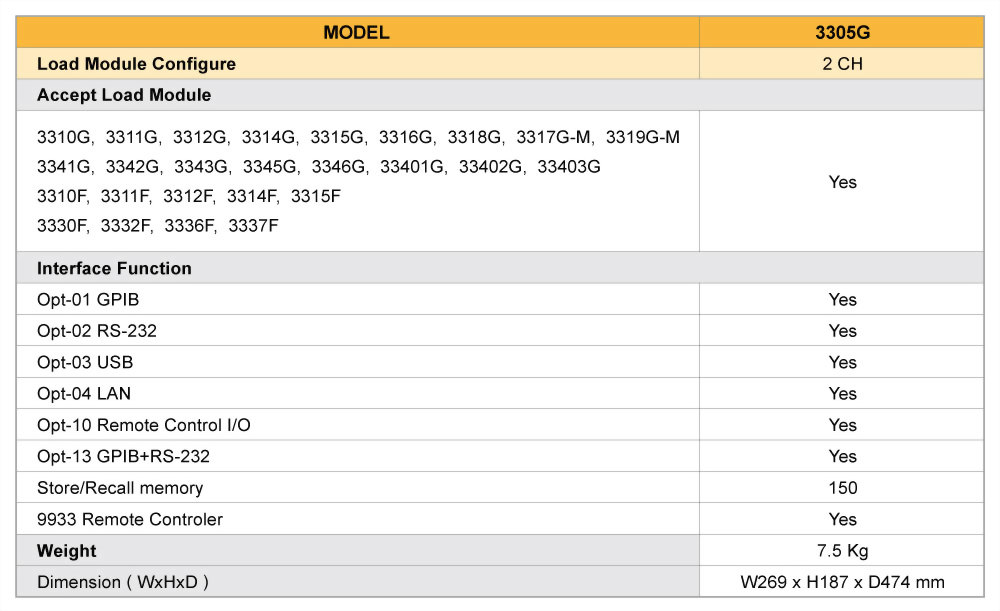

  • 3305G is a 2 channels 600W Mainframe which accepts up to two 3310G / 3310F series Load Module.
  • 3305F is a 2 channels 600W Mainframe which accepts up to two 3310F series Load Module.
  • 3302G is 300W Mainframe which accepts any single 3310G / 3310F series Load Module.
  • 3302F is 300W Mainframe which accepts any single 3310F series Load Module.
  • 3302C is 300W Mainframe which accepts any single 3310D / 3320 / 3250A / 3330A series Load Module.
  • 3300G and 3300F and 3300C include the built-in 150 states Store/Recall key or an Optional Remote controller provide user friendly one key operation for quick recall of previous stored data from all Load Modules. GPIB, RS-232, USB, LAN address is needed to control all Modules remotely.





  • Accept 3310G Series DC Electronic Load Module
  • Accept 3310F Series DC Electronic Load Module
  • Flexible Load Module configuration
  • include 150 states Store / Recall Memory
  • External Recall key
3300G  Four Channel Mainframe3305G  Two Channel Mainframe
3302G  Single Channel Mainframe3300F  Four Channel Mainframe
3305F  Two Channel Mainframe3302F  Single Channel Mainframe
3302C  Single Channel Mainframe3302C-01  Single Channel Mainframe (with GPIB Interface)
3300C  Four Channel Mainframe3300C-01  Four Channel Mainframe(with GPIB Interface)
3301A  Four Channel Mainframe(with GPIB Interface, Listen Only)3301A-01  Four Channel Mainframe
9923 Optional function:programmable DC load current waveformOptional feature: NTC Simulator
GPIB CardRS-232 Card
USB CardLAN Card
