1000A Precision Current Shunt

1μA~1000A
Lab Current Standard 1uA-1000A
Current Range AC & DC Current Shunt AC & DC Current Meter

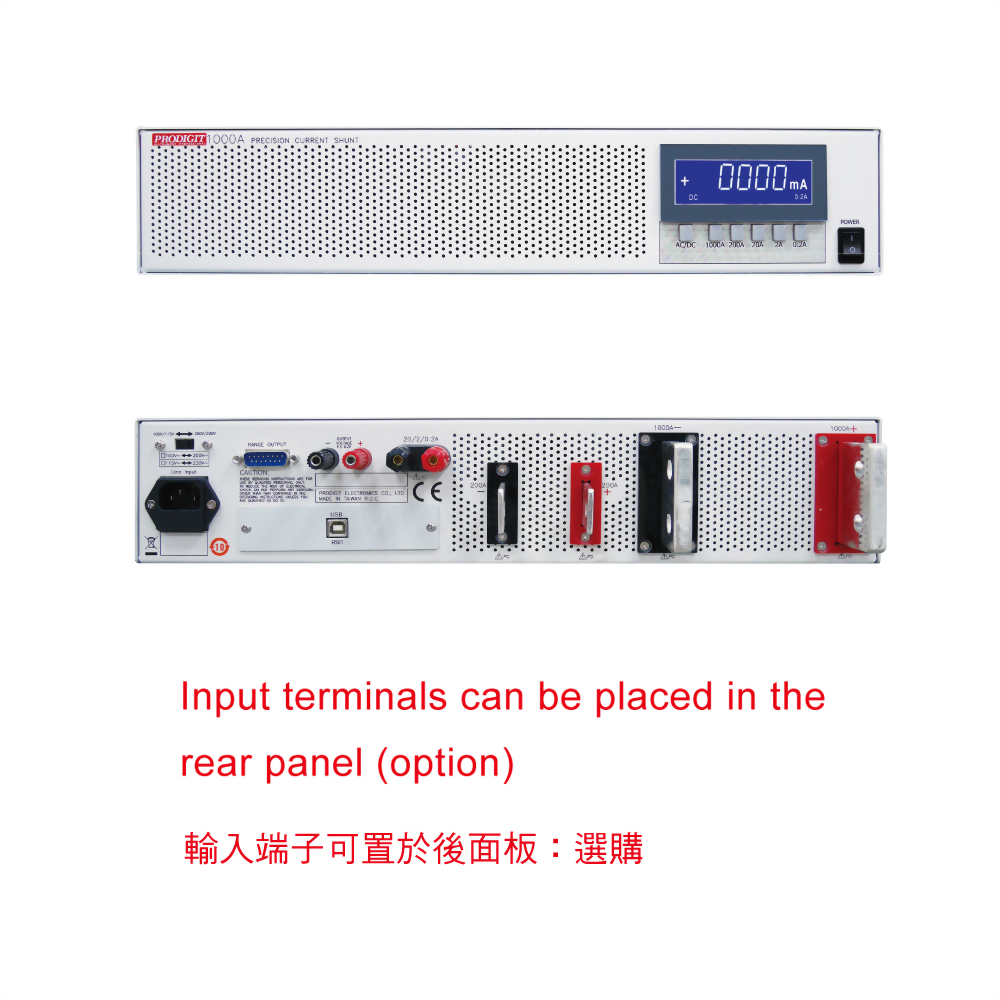

Input terminals can be placed in the rear panel (option)
Model : 1000A

  • Model 1000A has five precision selectable Ultra stable Current Shunts which ranges from 0.0001 to 1Ω. The Shunt T/C is less than 10ppm, and the internal current meter will measure from 1μA to 1000Amps.
  • The five shunts selector and internal 5 1/2 Digit AC & DC Current Meter displays the respective shunt current. Connect an external DVM into output (with 5 1/2 digit higher) will increase both resolution and current reading accuracy.
  • Current range can be set and current value readback by optional interface.

  • 0.01% High Accuracy
  • 5 1/2 Digit AC & DC Current Meter
  • Built-in Over Current Protection
  • Less than 10ppm / ∘C ( Range 1000A：less than 50ppm ℃)
  • High Stability & Reliability
  • Input terminals can be placed in the rear panel (option)
  • Optional Interface : GPIB、RS232、USB、LAN.

  • AC & DC Current Meter
  • AC & DC Current Sensor
  • AC & DC Power Supply
  • AC & DC Electronic Load
  • AC & DC Power Meter
1000A Precision Current Shunt1000A-R Precision Current Shunt （Input terminals placed in the rear panel ）
GPIB CardRS-232 Card
USB CardLAN Card
