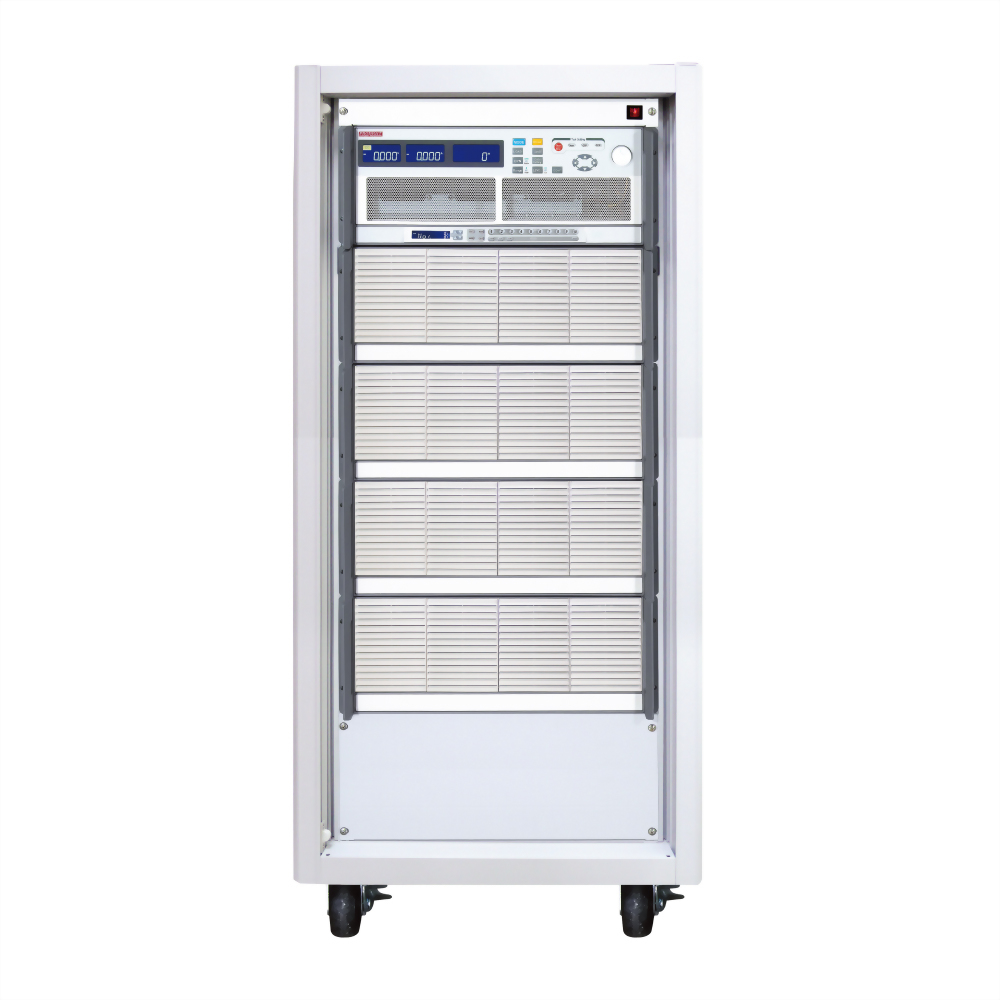

• 33674F High Voltage DC Electronic Load 500V,60A,9000W

33674F High Voltage DC Electronic Load 500V,60A,9000W

500V, 60A, 9000W
Model : 33674F

  • 3360F has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB, RS232,USB and LAN interface.
  • SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
  • Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
  • Single key for OCP ,OPP test function will be more efficiency and accuracy on OCP,OPP testing.
  • Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” +  “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.
  • 150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.
  • Maximum Voltage up to 500V that provides an ideal testing solution for Power Factor Correction testing.
3360f-series-high-voltage-dc-electronic-load_specification01_e.jpg3360f-series-high-voltage-dc-electronic-load_specification02_e.jpg3360f-series-high-voltage-dc-electronic-load_specification03_e.jpg

  • 5 digit V/A/W Meter.
  • High-speed measurement and communication transmission.
  • Large LCD Display、setting values can be adjusted by rotary knob or push button.
  • Voltage,Current and Watt value can be displayed simultaneously.
  • 150 sets Store/Recall memory.
  • Power Factor Correction (PFC) Test.
  • OCP,OPP test function.
  • Power ON status can be set.
  • CC, CR, CV, CP, Dynamic and Short operation mode.
  • SHORT time setting.
  • Protections against V,I,W, and ℃.
  • Voltage meter display the polarity positive（”＋”）or negative（”－”）is selectable.
  • Optional Interface：GPIB、RS232、USB、LAN.
  • New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads

  • Voltage / Current source
  • SMPS transient response
  • CV/Current limit testing and battery emulation
  • Battery charger
  • Battery discharge
  • R&D Quality Control
  • ATE system
  • Production testing
  • Power Factor Correction (PFC) Test
3360F  High Voltage DC Electronic Load  500V,20A,600W3361F High Voltage DC Electronic Load  500V,40A,1200W
3362F  High Voltage DC Electronic Load  500V,60A,1800W3367F High Voltage DC Electronic Load  500V,12A,1800W
33611F  High Voltage DC Electronic Load  500V,80A,2400W33611F High Voltage DC Electronic Load  500V,80A,2400W（Desktop）
33621F High Voltage DC Electronic Load  500V,120A,3600W33621F High Voltage DC Electronic Load  500V,120A,3600W（Desktop）
33671F  High Voltage DC Electronic Load 500V,24A,3600W33671F High Voltage DC Electronic Load  500V,24A,3600W（Desktop）
33622F  High Voltage DC Electronic Load  500V,180A,5400W33672F High Voltage DC Electronic Load 500V,36A,5400W
33623F  High Voltage DC Electronic Load 500V,240A,7200W33624F High Voltage DC Electronic Load 500V,300A,9000W
33674F  High Voltage DC Electronic Load 500V,60A,9000W33625F High Voltage DC Electronic Load 500V,360A,10800W
33626F  High Voltage DC Electronic Load 500V,420A,12600W33675F High Voltage DC Electronic Load 500V,72A,10800W
33627F  High Voltage DC Electronic Load 500V,500A,14400W3360F-05 High Voltage DC Electronic Load 600V , 20A , 600W
3362F-06 High Voltage DC Electronic Load 600V , 60A , 1800W33622F-05 High Voltage DC Electronic Load 80V , 120A , 6000W
33622F-06 High Voltage DC Electronic Load 600V , 180A , 5400WGPIB Card
RS-232 CardUSB Card
LAN CardOptional function：BMS protection function test
9923 Optional function：programmable DC load current waveform
