• 2 sets of U.U.T can be tested at the same time to improve test efficiency and save test time and cost

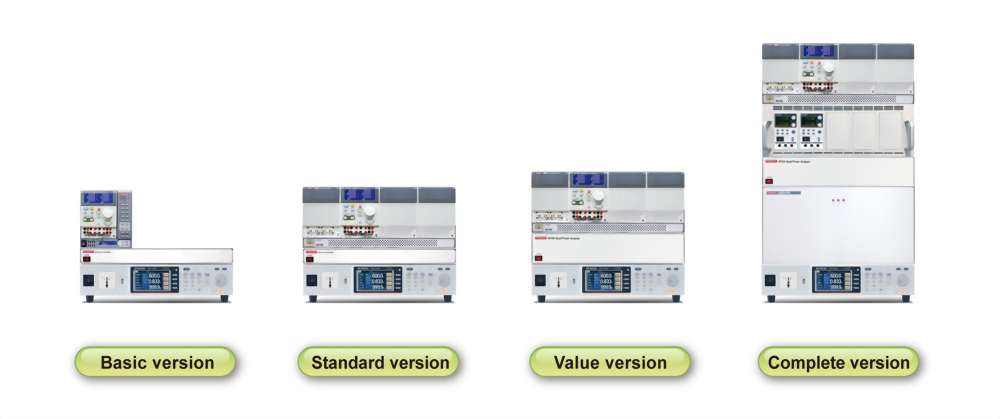

• Select the required device configuration version ( Basic / Standard / Value / Complete version ) according to product testing requirements
• Multi - function test capability for charger, adapter, LED driver power
• Highly cost-effective, fully functional modular design test system
• Operating environment of Windows 7 or higher (included)
• Accept customized
• Open architecture software platform

1. Support related hardware expansion

2. Edit test item function

3. Edit test program function

4. Edit statistical analysis report function

5. Online instrument control function

6. User authorization settings

7. Support Bar Code Reader

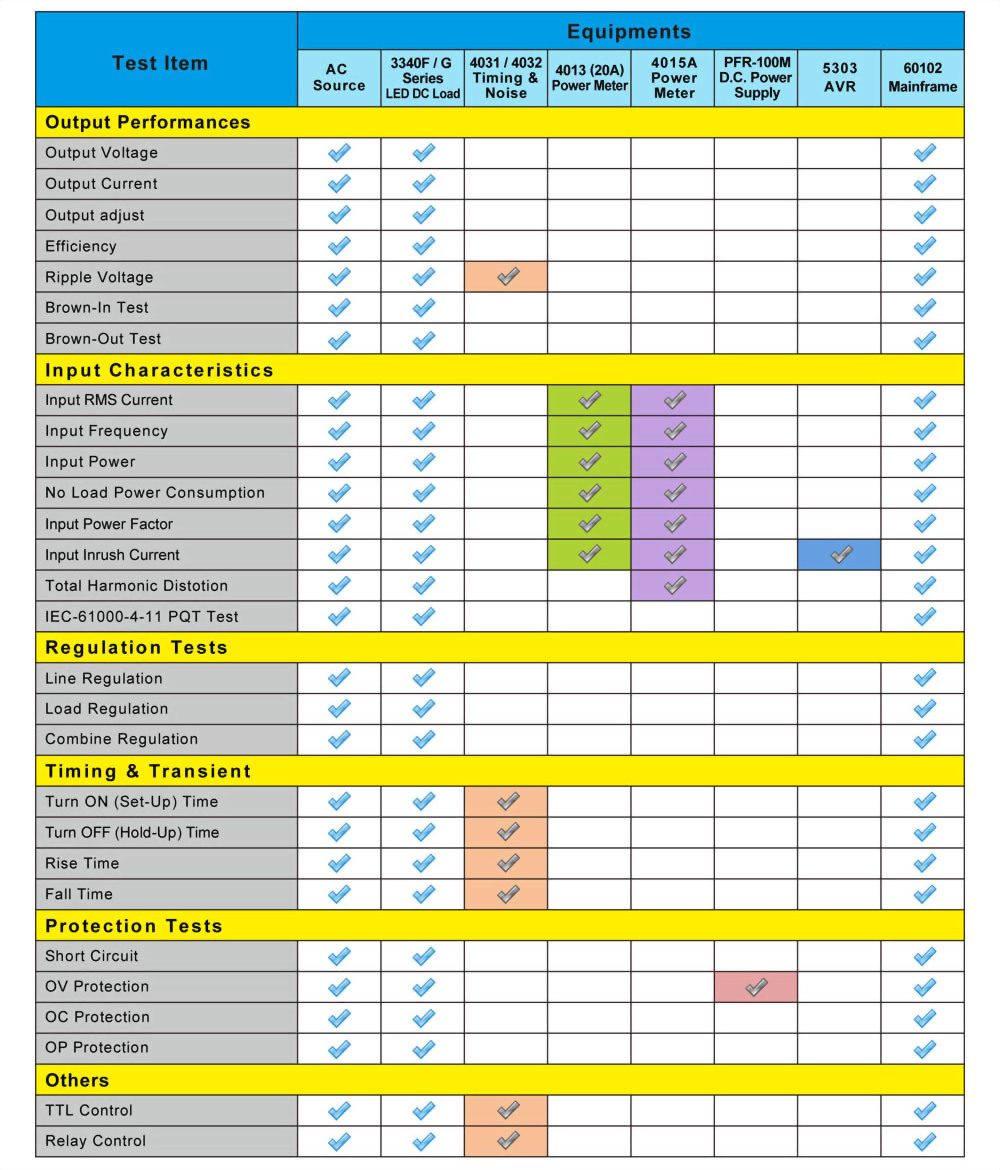

6010 Charger/Adapter/LED Driver Test item and equipment list

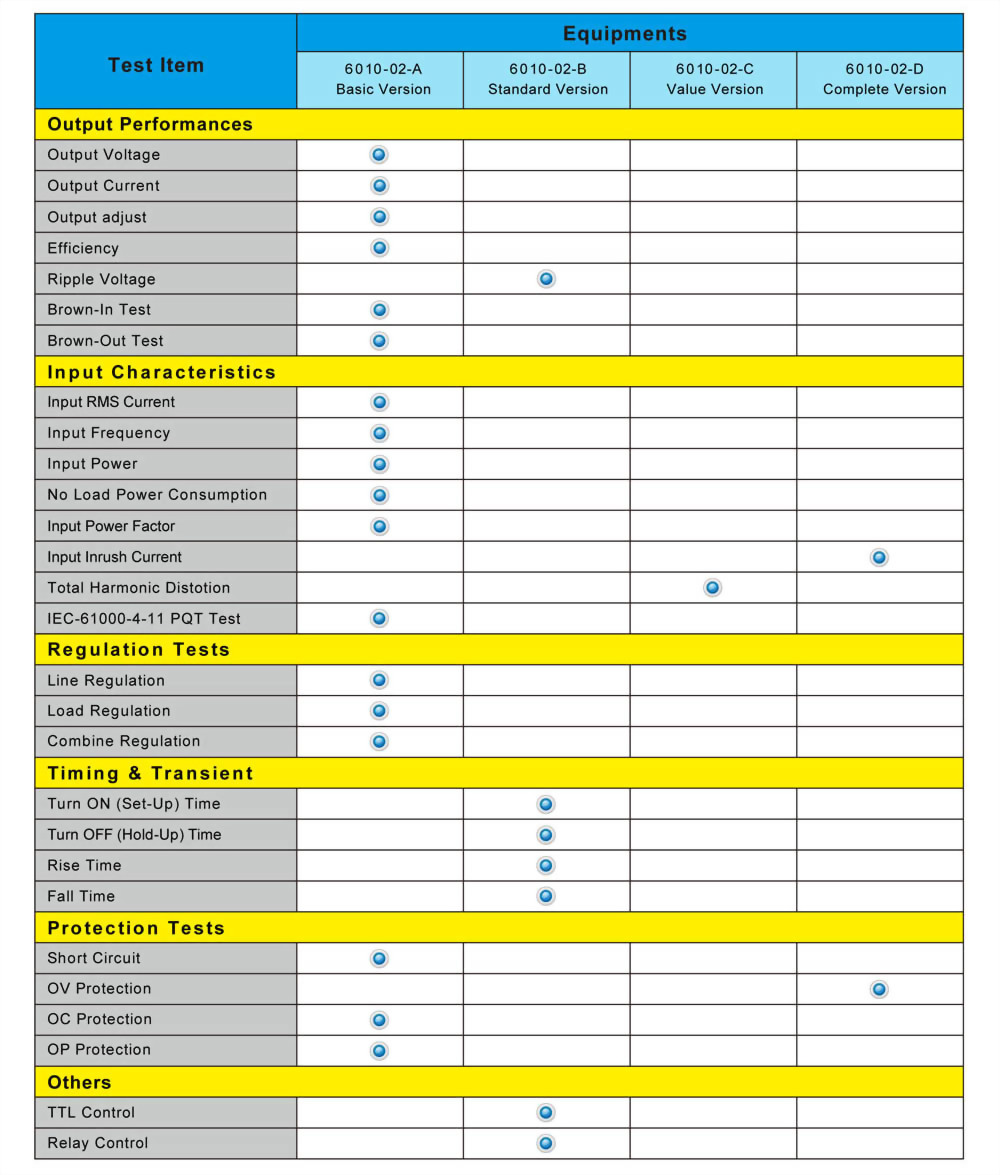

6010-02 2 Channel Test System Quickly Selection Table

6010-02-A 2 Channel LED Driver test system Basic version configure need to   APS-7000 series AC Power Sources, Dual Channel Power Meter and Dual Channel DC Load (33401G Series), The Configure Diagram as below

6010-02-A  2 Channel Test System Basic Version System Diagram

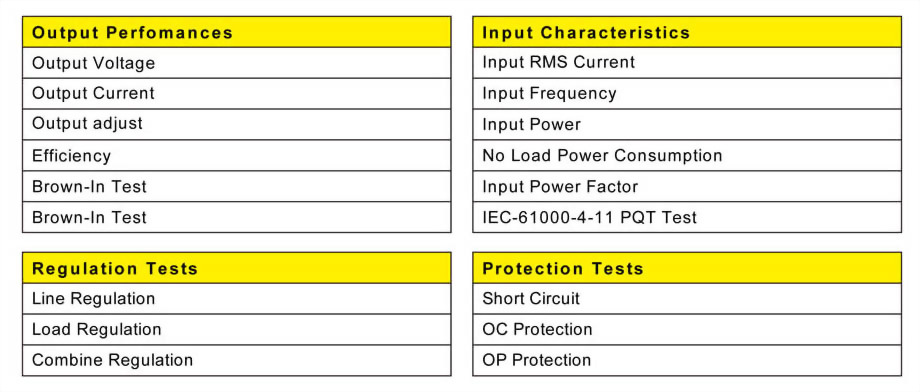

6010-02-A  2 Channel Test System Basic Version test item list

6010-02-A  2 Channel Test System Basic version equipment list

6010-02-B  2 Channel Standard Version (Basic Version + 4032 Noise & Timing Analyzer), The Configure Diagram as below

6010-02-B 2 Channel Test System Standard Version System Diagram

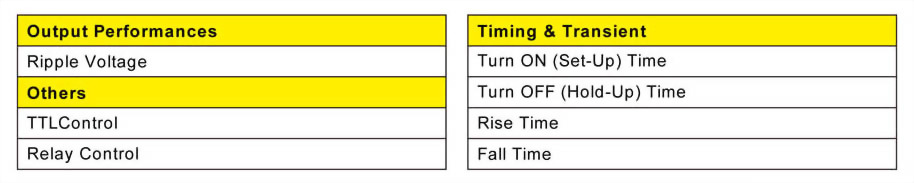

6010-02-B  2 Channel Test System Standard Version added test item list

6010-02-B  2 Channel Test System Standard version equipment list

6010-02-C  2 Channel Value Version (Standard Version + 4013A-2 Change to 4015A-2 Power Meter with Harmonic)

The Configure Diagram as below

6010-02-C  2 Channel Test System Value Version System Diagram

6010-02-C  2 Channel Test System Value Version added test item list

6010-02-C  2 Channel Test System Value version equipment list

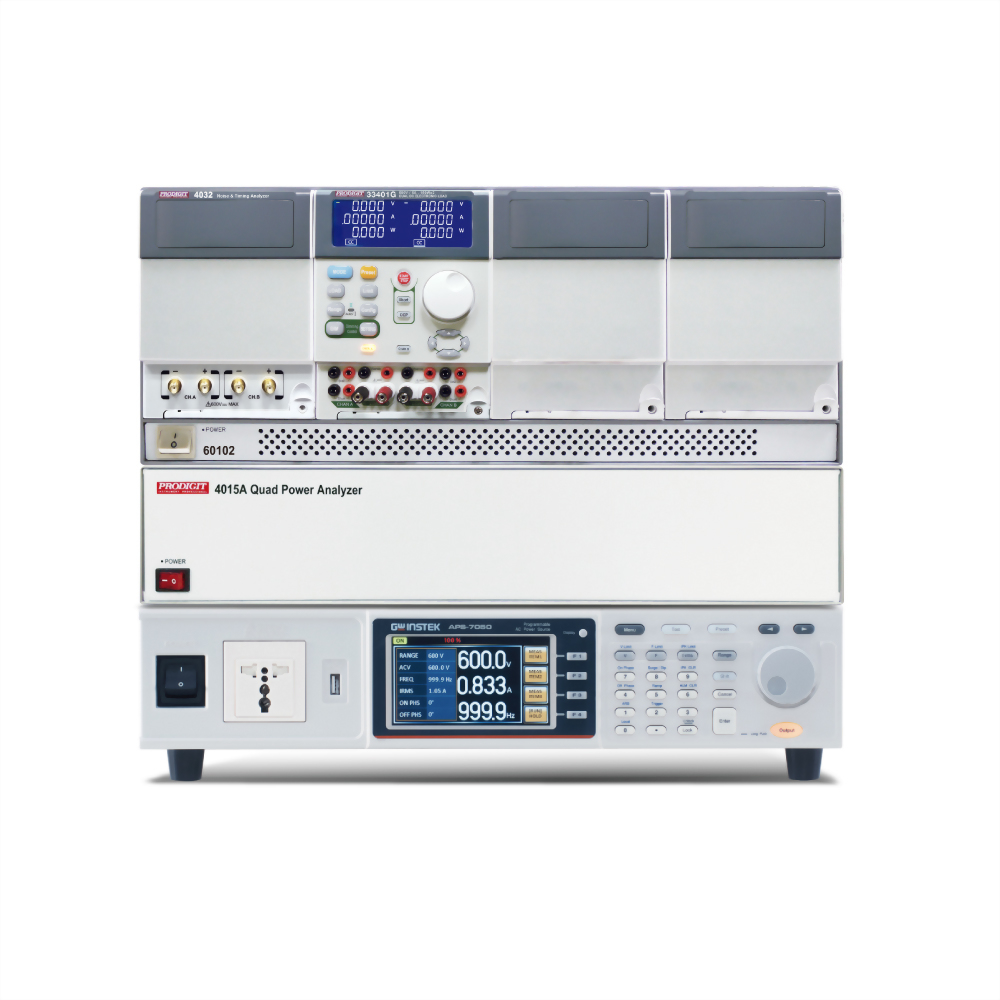

6010-02-D  2 Channel Complete Version (Value Version +  PFR-100M D.C. Power Supply  & 5303 Inrush Source)

 The Configure Diagram as below

6010-02-D 2 Channel Test System Complete Version System Diagram

6010-02-D  2 Channel Test System Complete Version added test item list

6010-02-D  2 Channel Test System Complete version equipment list
