6050-2（3332F）USB PD Dual-channel Test System
APS-7000 Series Programmable Linear AC Power Sources Suitable test item & Specifications
For IEC-61000-4-11
3332F Dual DC E-Load List of Specification and applicable features
4013A-2 List of Specification and applicable features
4015A-2 List of Specification and applicable features
4032-PD List of Specification and applicable features
5303 AVR Suitable test item & Specifications
PFR-100L/100M Suitable test item & Specifications
99094-2 List of Specification and applicable features
- 2 sets of U.U.T can be tested at the same time to improve test efficiency and save test time and cost

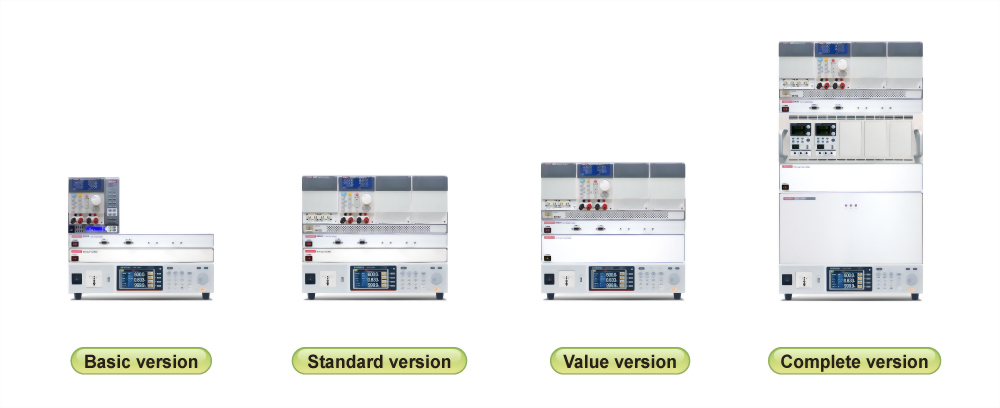

- Select the required device configuration version ( Basic / Standard / Value / Complete version ) according to product testing requirements
- In addition to supporting USB PD, also supports QC2.0 / QC3.0 / PE+ / PE+2.0
- Highly cost-effective, fully functional modular design test system
- Operating environment of Windows 7 or higher (included)
- Open architecture software platform
1. Support related hardware expansion
2. Edit test item function
3. Edit test program function
4. Edit statistical analysis report function
5. Online instrument control function
6. User authorization settings
7. Support Bar Code Reader
6050-2（3332F）USB PD DUAL-CHANNEL TEST SYSTEM

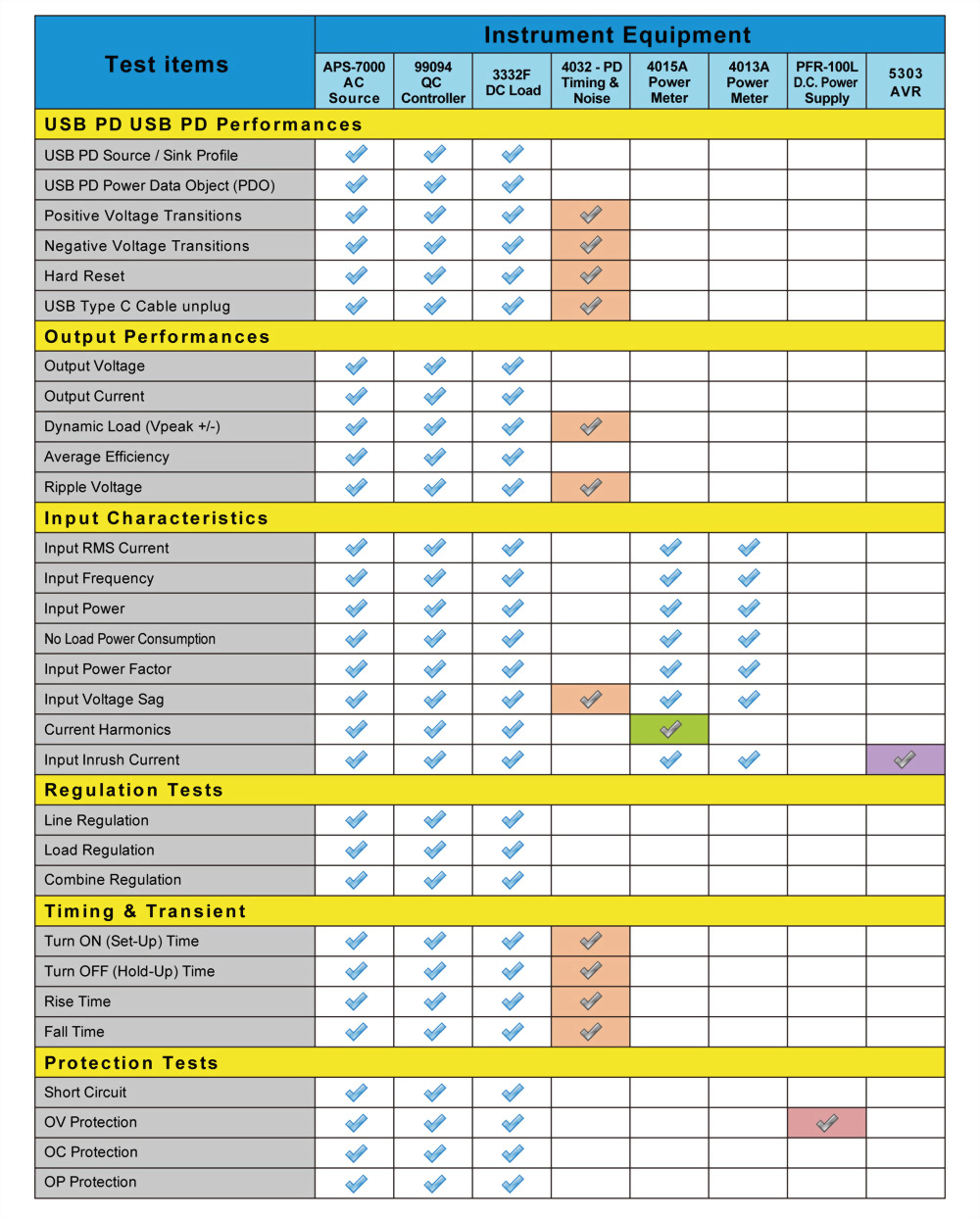

USB PD Test items and equipment configuration table

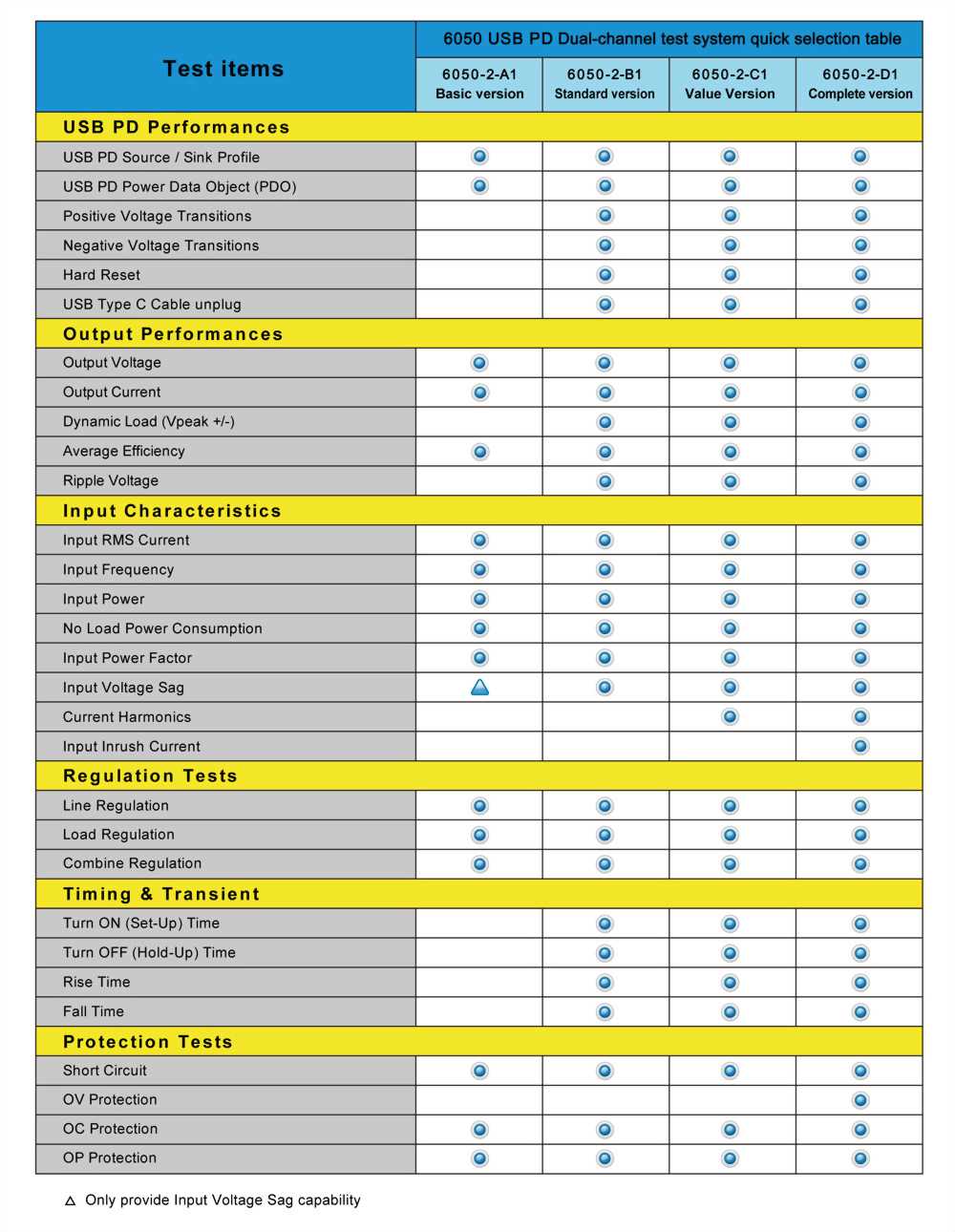

USB PD Dual-channel test system quick selection table

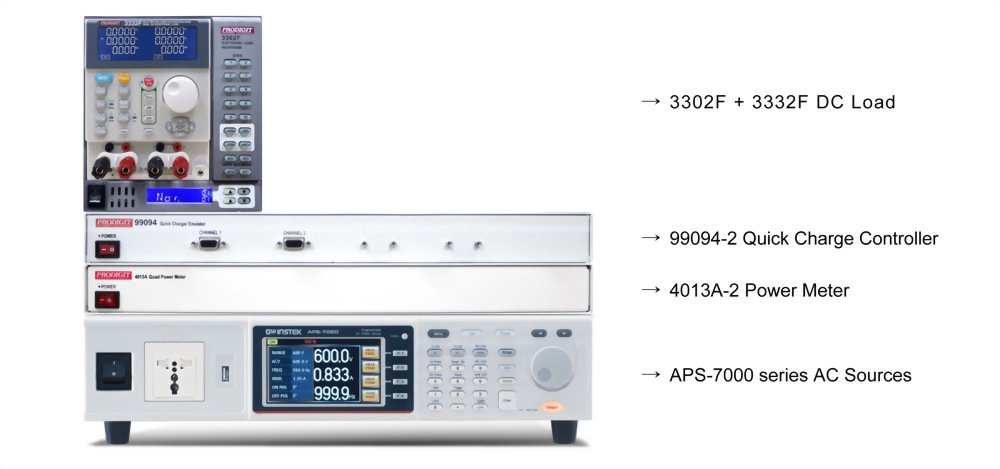

the dual-channel test system configuration is as shown in the table, just needs APS-7000 series AC Source, 3302F + 3332F series and 99094-2 Quick Charge Controller and 4013A-2 Power Meter.
The basic version system configuration is shown below.

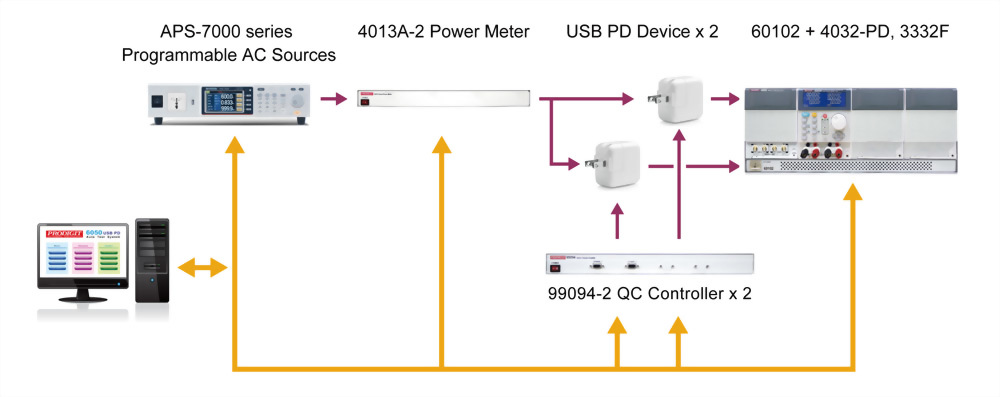

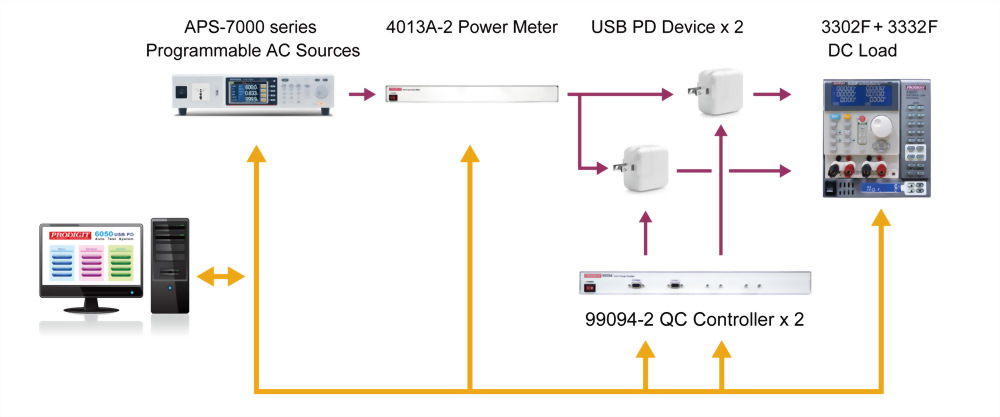

6050-2-A1 Basic version dual- channel test system block diagram
6050-2-A1 Dual Channel Test System Configuration

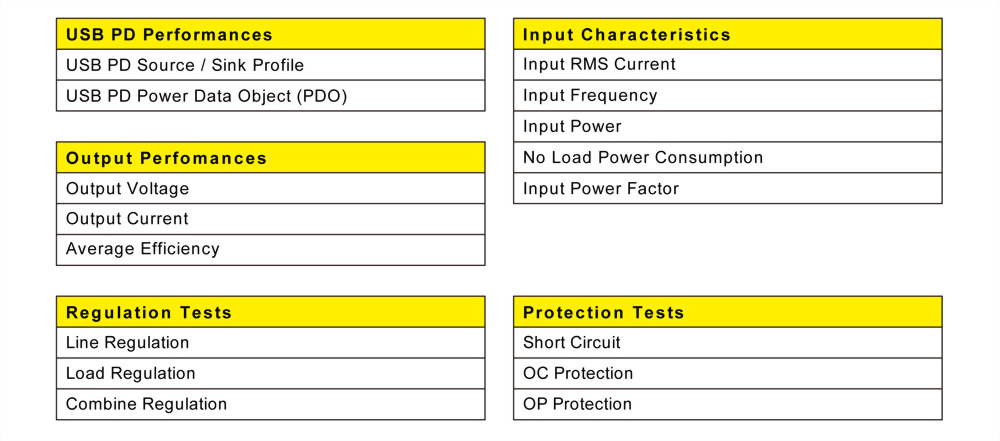

6050-2-A1 Basic version dual- channel test system test items are as follows

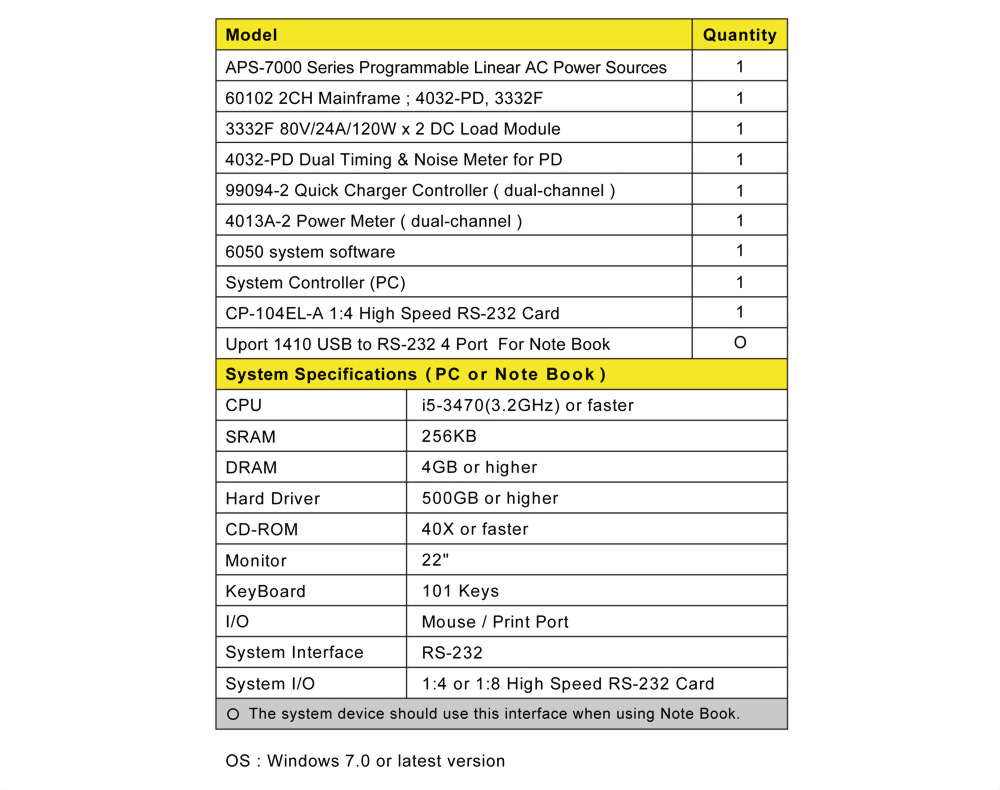

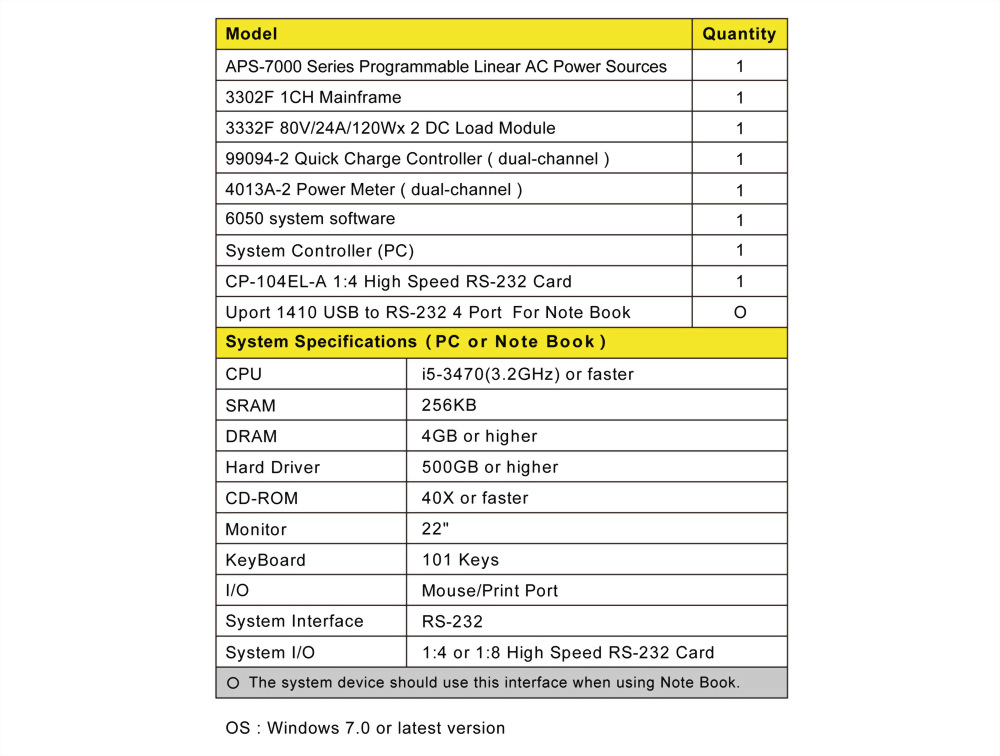

6050-2-A1 Basic version dual- channel test system equipment configuration table

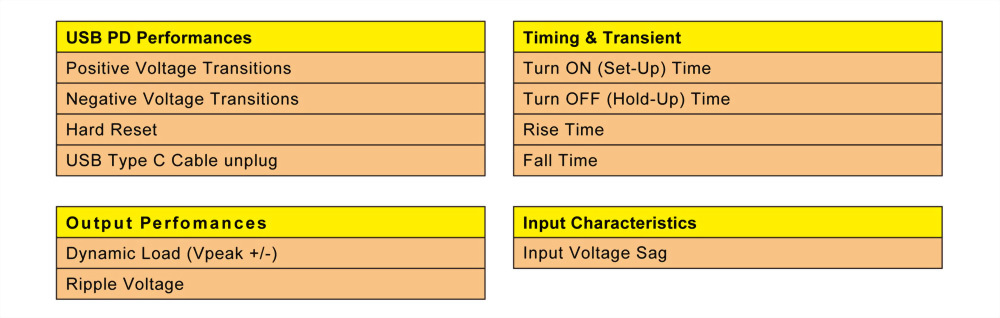

by adding 4032-PD Dual Timing & Noise Meter can increase USB PD characteristics and timing and transient testing
The standard version system configuration is shown below.
6050-2-B1 Standard version dual-channel test system block diagram
6050-2-B1 Dual Channel Test System Configuration
6050-2-B1 Standard version by adding 4031-PD x 2 and 99094-2 two channels
Quick Charger Controller can increase the test items as shown in the block below.
6050-2-B1 Standard version dual-channel test system equipment configuration table
Changing 4013A-2 to 4015A-2 power meter with Harmonic can increase the current harmonic Harmonics test.
The value version system configuration is shown below.

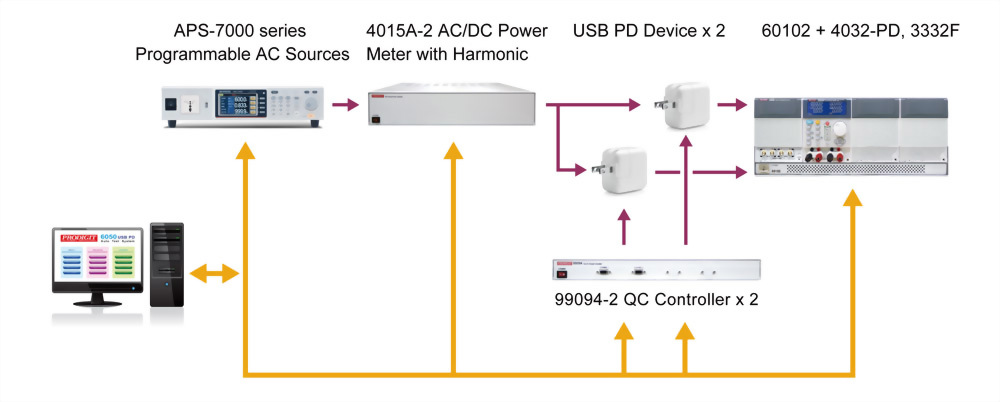

6050-2-C1 Value version dual-channel test system block diagram
6050-2-C1 Dual Channel Test System Configuration
6050-2-C1 Value version dual-channel test system : Changing 4013A-2 to 4015A-2

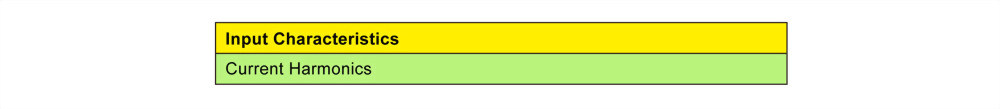

power meter can increase the test items as shown in the following green block
6050-2-C1 Value version dual-channel test system equipment configuration table

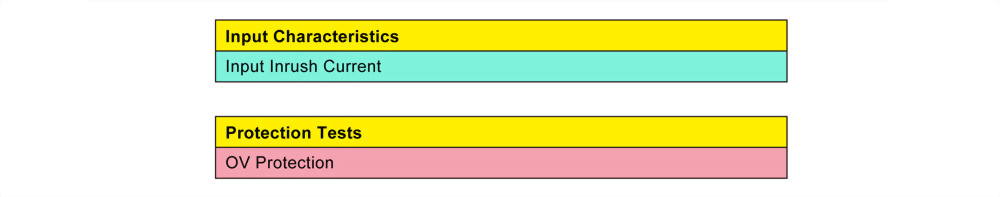

dual-channel test system : adds 5303 AVR and PFR-100L two channels OVP Source to increase Input Inrush Current and over voltage protection tests.
The Complete version system configuration is shown below.

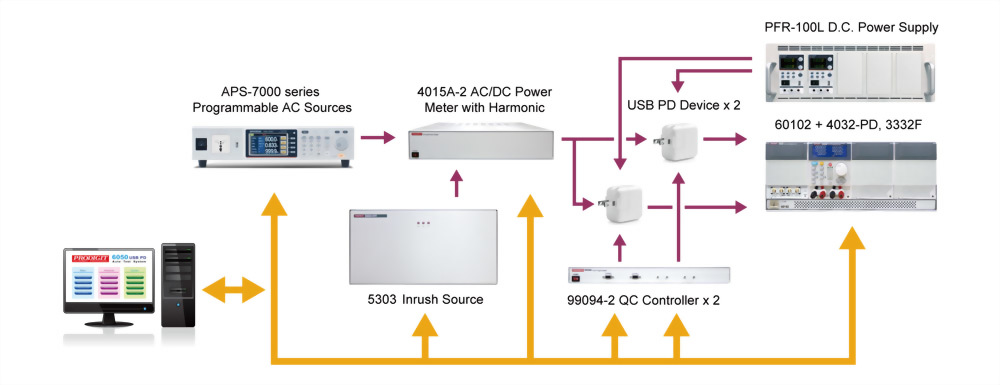

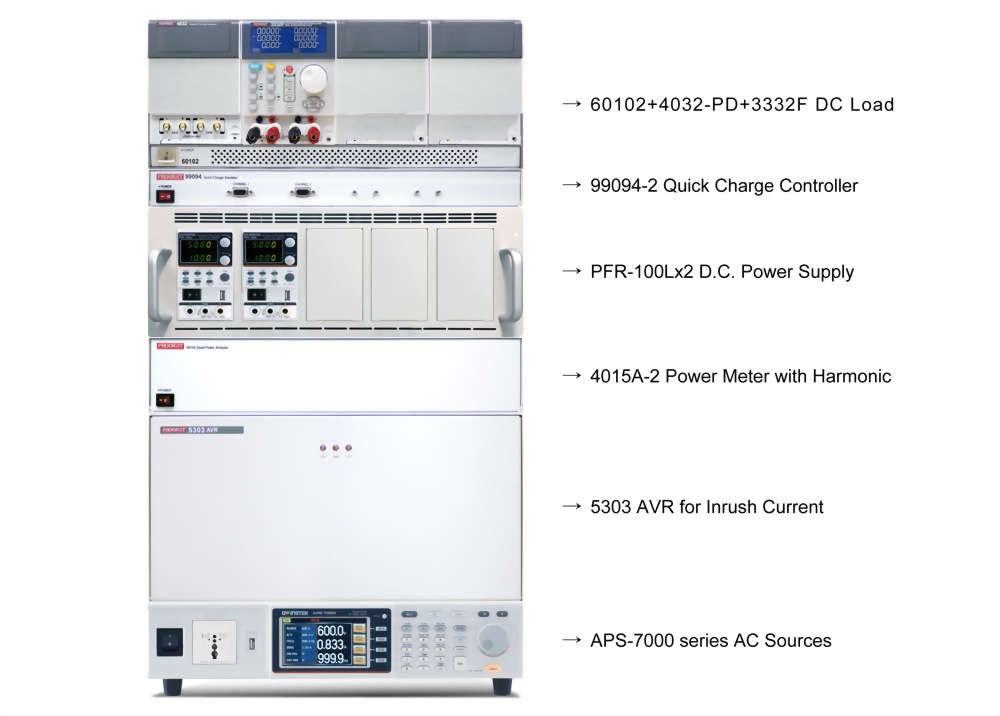

6050-2-D1 Complete version dual-channel test system block diagram
6050-2-D1 Dual Channel Test System Configuration
6050-2-D1 Complete version by adding 5303 and PFR-100L, the following items can be added to the test item

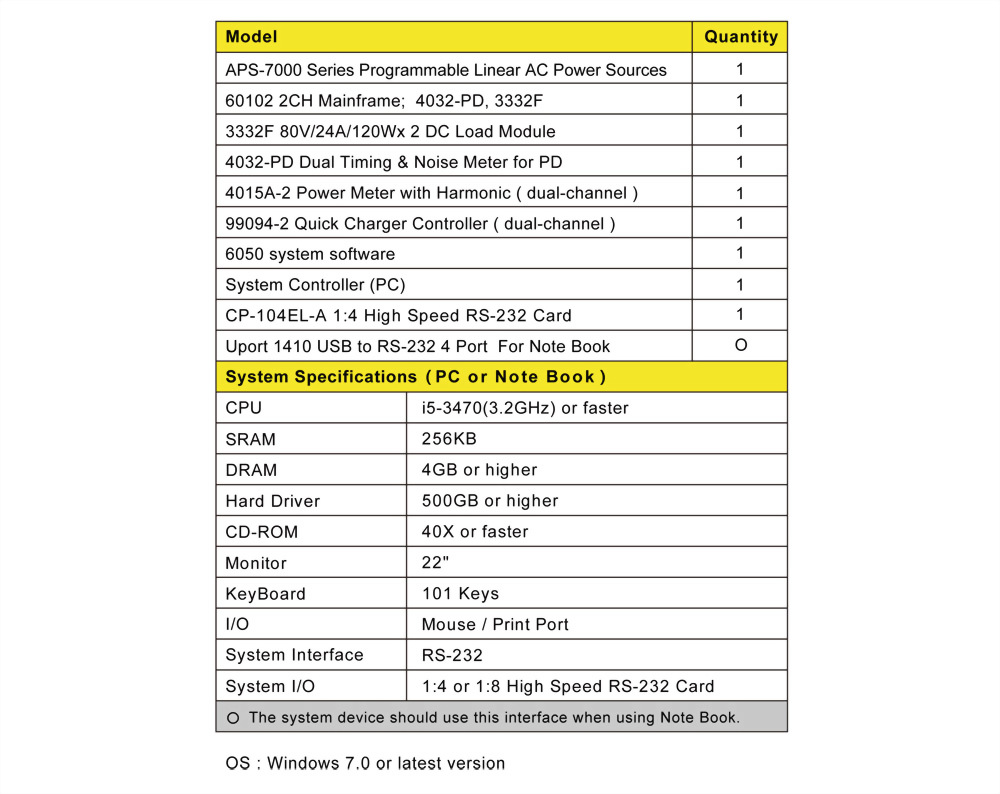

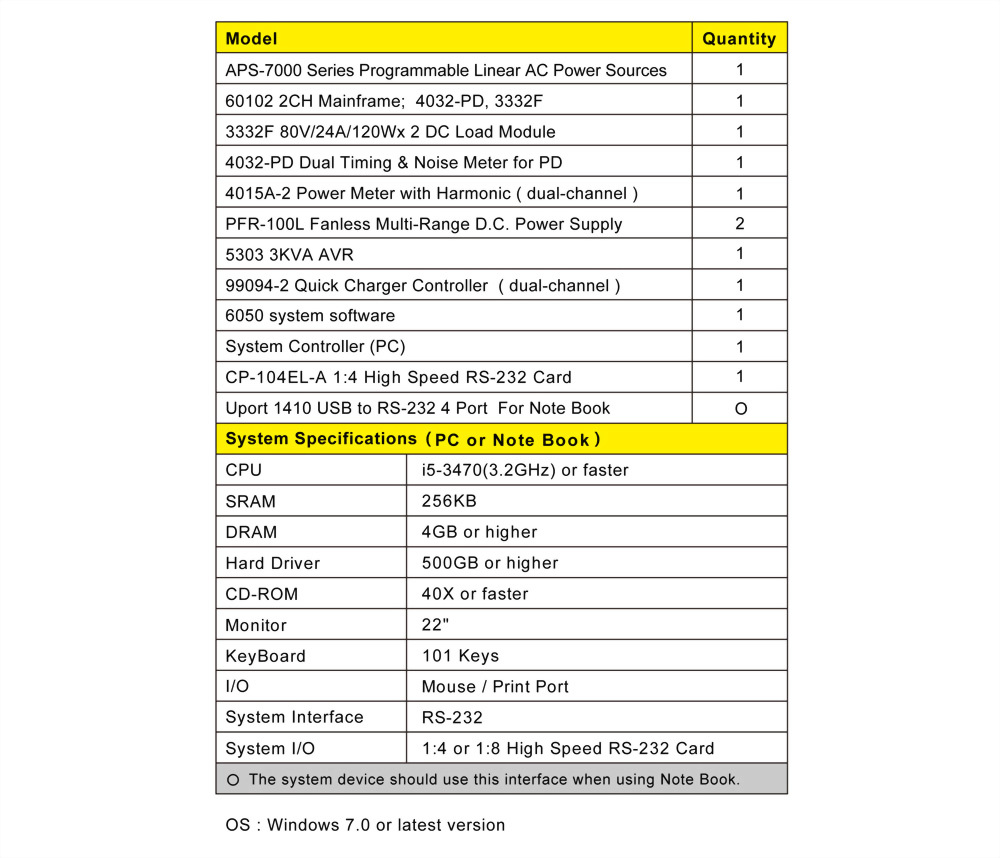

6050-2-D1 Complete version dual-channel equipment configuration table
6050-2-C1（3332F）USB PD Dual-channel Test System（Value version） 6050-2-D1（3332F）USB PD Dual-channel Test System（Complete version）
