• Provide user define Test Step
• Easy user interface
• Measure Voltage, Current, Power, KWH, AH, Temperature, Reference Voltage
• Accuracy Measure Time
• Easy to see now test progress
• Can cycle test
• Provide Charge, Discharge, Suspend, FOR, LOOP Mode Select
• When Charging,  set the stop current to stop charging when fully charged so as to avoid overcharging that will damage the battery. When Discharge, set the stop voltage to stop discharge when discharging to lowest so as to avoid over-discharging that will damage the battery.
• The test result will be stored to ACCESS data
• The test result will be saved to EXCEL CSV format
• When test result data are excess 32000 data, it will be separated  automatically during transfer to EXCEL file
• The maximum test procedures you can set are up to 100.

• Charge Test
• CP-Charge Test
• Discharge Test
• Capability Test (AH)
• Power Consumption Test (KWH)
• Cycle Life Test

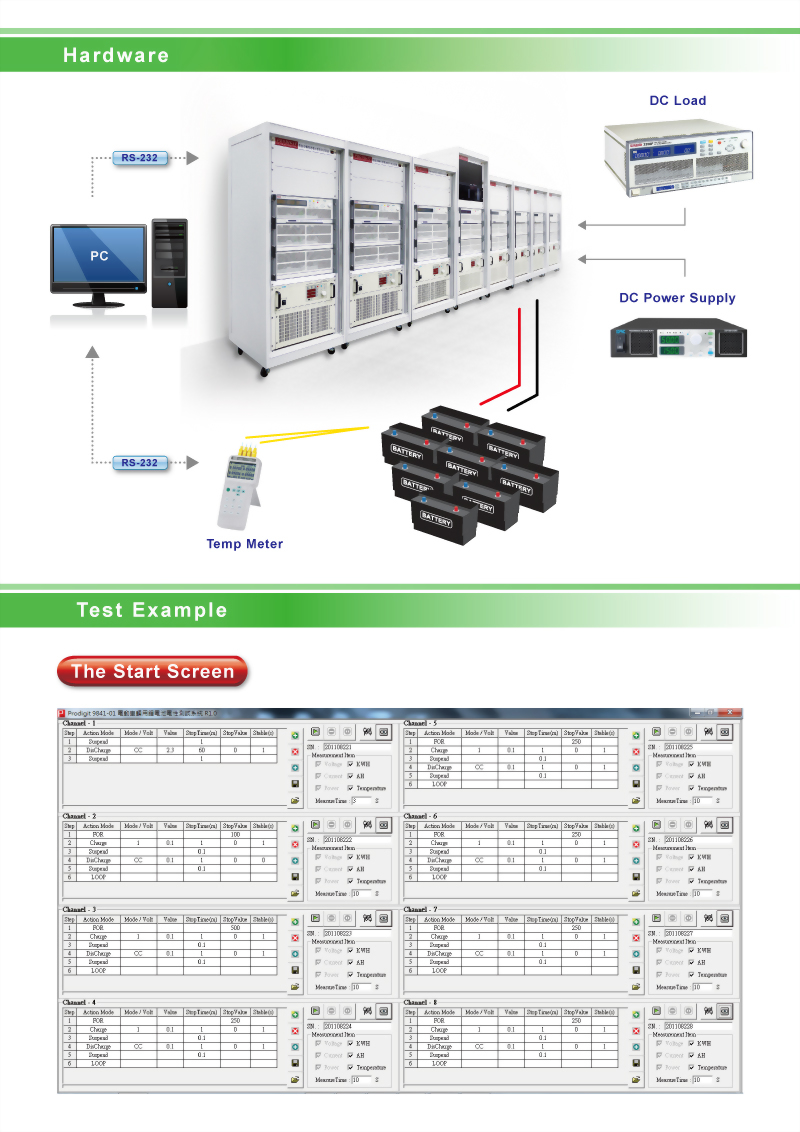

Hardware

Test Example

The Start Screen

Additional Test Procedure

System Setup

Connection Setup

Start Test

Review test data

Review test records

Real time monitoring the test waveform
