• 4 sets of U.U.T can be tested at the same time to improve test efficiency and save test time and cost
• Select the required device configuration version ( Basic / Standard / Value / Complete version ) according to product testing requirements
• Multi - function test capability for charger, adapter, LED driver power
• Highly cost-effective, fully functional modular design test system
• Operating environment of Windows 7 or higher (included)
• Accept customized
• Open architecture software platform

1. Support related hardware expansion

2. Edit test item function

3. Edit test program function

4. Edit statistical analysis report function

5. Online instrument control function

6. User authorization settings

7. Support Bar Code Reader

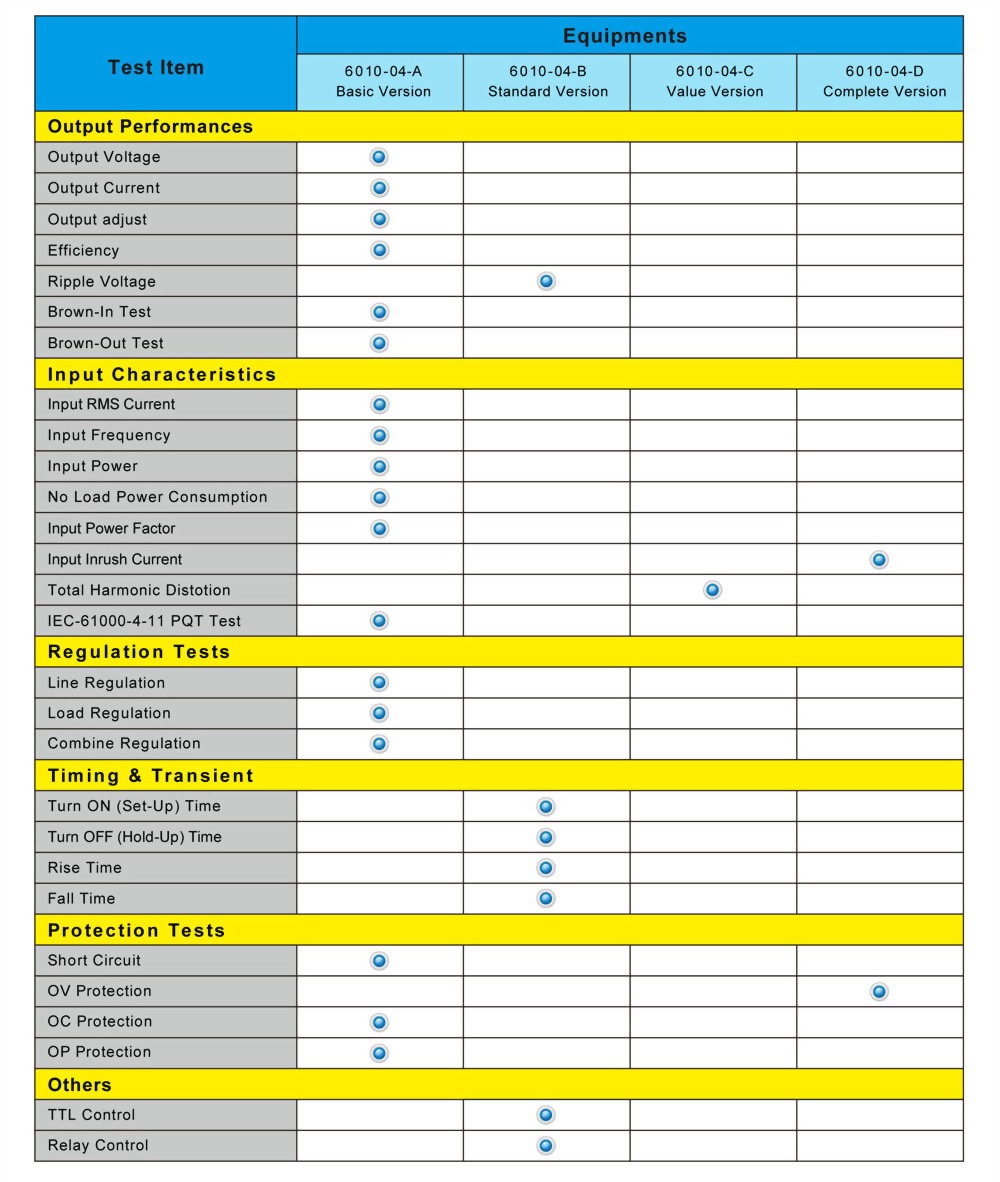

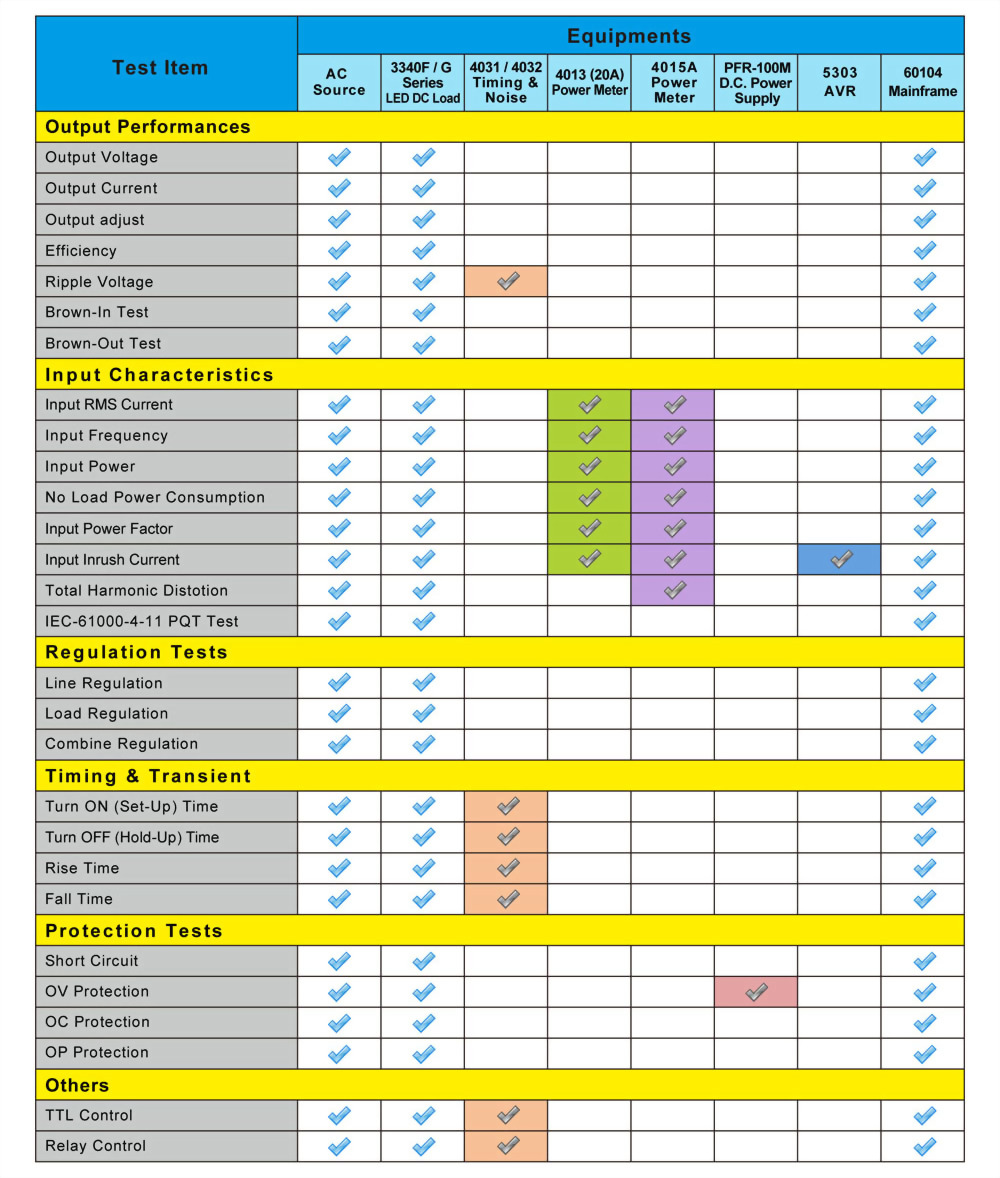

6010 Charger/Adapter/LED Driver Test item and equipment list

6010-04  4 Channel Test System Quickly Selection Table

6010-04-A  4 Channel LED Driver test system Basic version configure need to APS-7000 series

AC Power Sources , 4013A 4 Channel Power Meter and LED DC Load (3342G Series)

The Configure Diagram as below

6010-04-A 4 Channel Test System Basic Version System Diagram

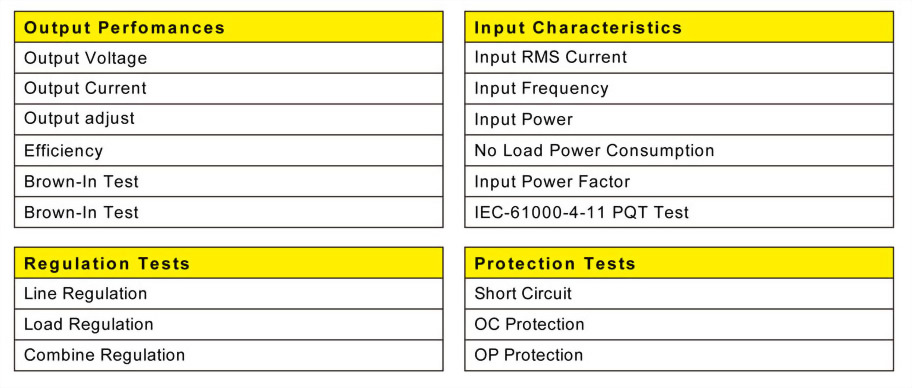

6010-04-A  4 Channel Test System Basic Version test item list

6010-04-A  4 Channel Test System Basic version equipment list

6010-04-B  4 Channel Standard Version (Basic Version + 4034 Noise & Timing Analyzer), The Configure Diagram as below

6010-04-B  4 Channel Test System Value Version System Diagram

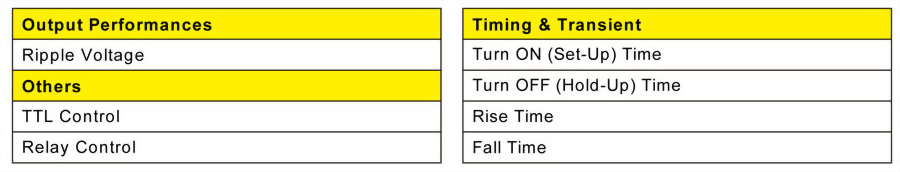

6010-04-B  4 Channel Test System Value Version added test item list

6010-04-B  4 Channel Test System Value Version added test item list

6010-04-C  4 Channel Value Version (Standard Version + 4013A Change to 4015A 4 Channel Power Meter with Harmonic),

The Configure Diagram as below

6010-04-C  4 Channel Test System Complete Version System Diagram

6010-04-C  4 Channel Test System Value Version added test item list

6010-04-C  4 Channel Test System Value version equipment list

6010-04-D   4 Channel Complete Version (Value Version + 5PFR-100M D.C. Power Supply  & 5030 Inrush Source)

The Configure Diagram as below

6010-04-D  4 Channel Test System Complete Version System Diagram

6010-04-D  4 Channel Test System Complete Version added test item list

6010-04-D  4 Channel Test System Complete version equipment list
