6050-1 USB PD Single Test System

Model : 6050-1

APS-7000 Series Programmable Linear AC Power Sources Suitable test item & Specifications

For IEC-61000-4-11

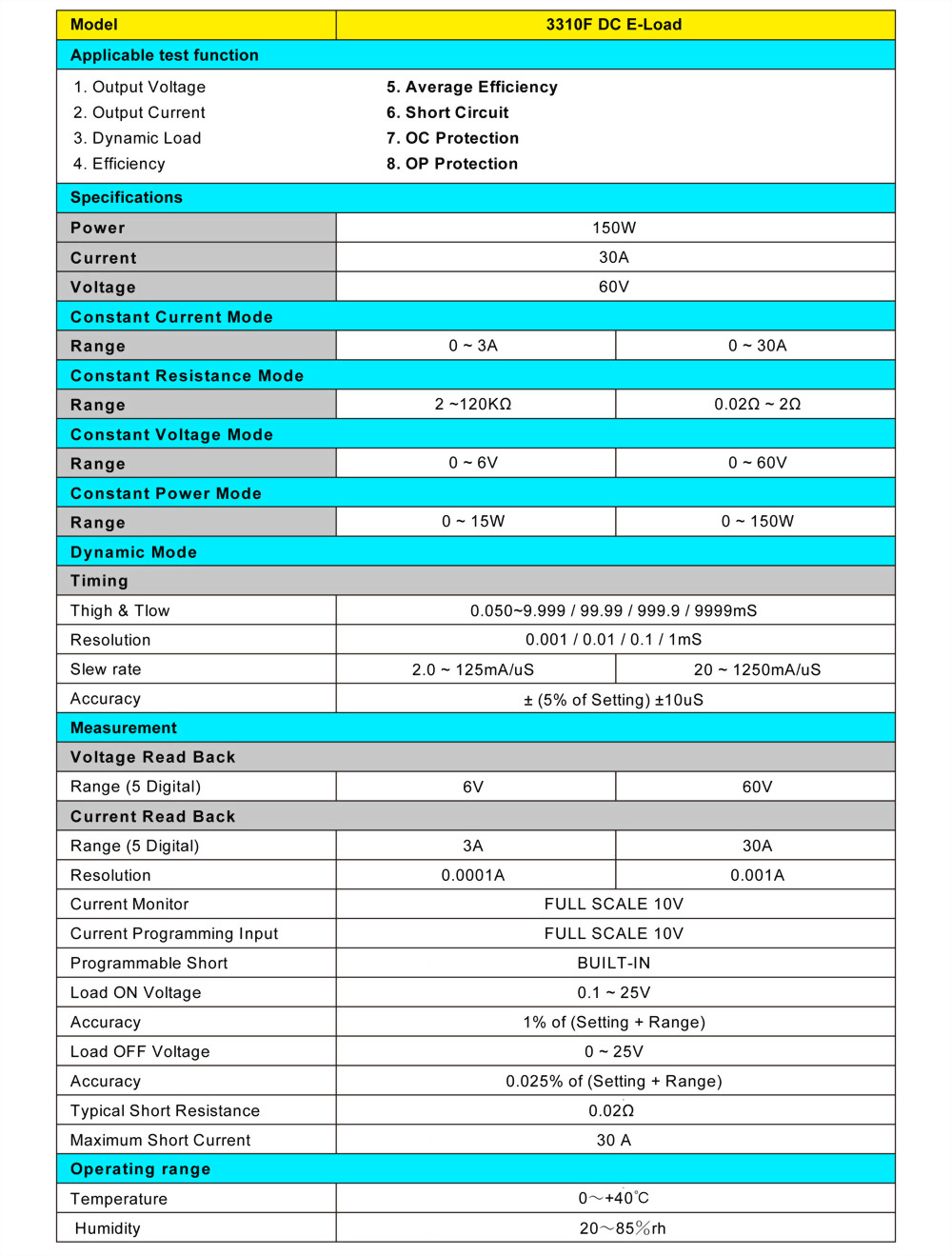

3310F DC E-Load List of Specification and applicable features

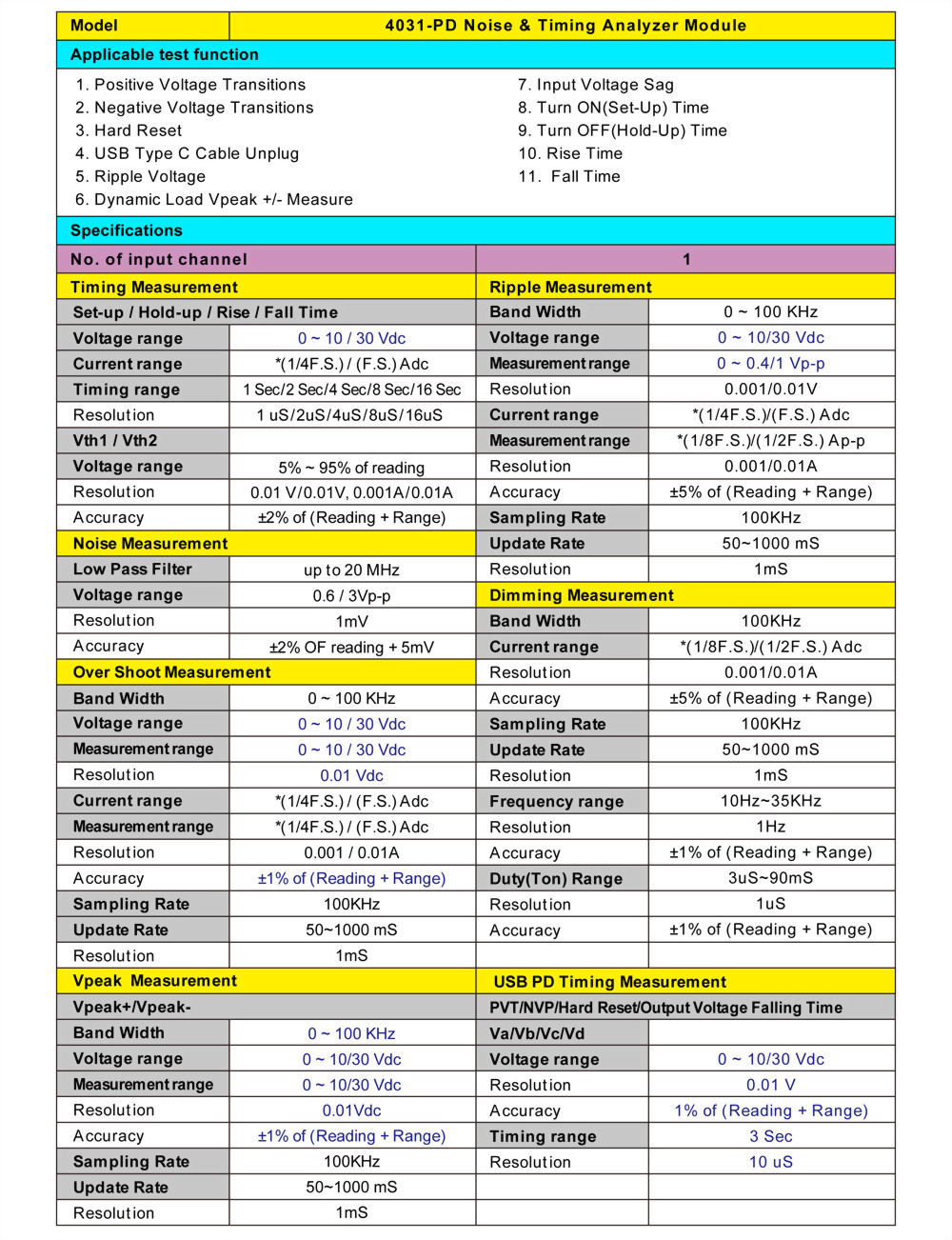

4031-PD List of Specification and applicable features

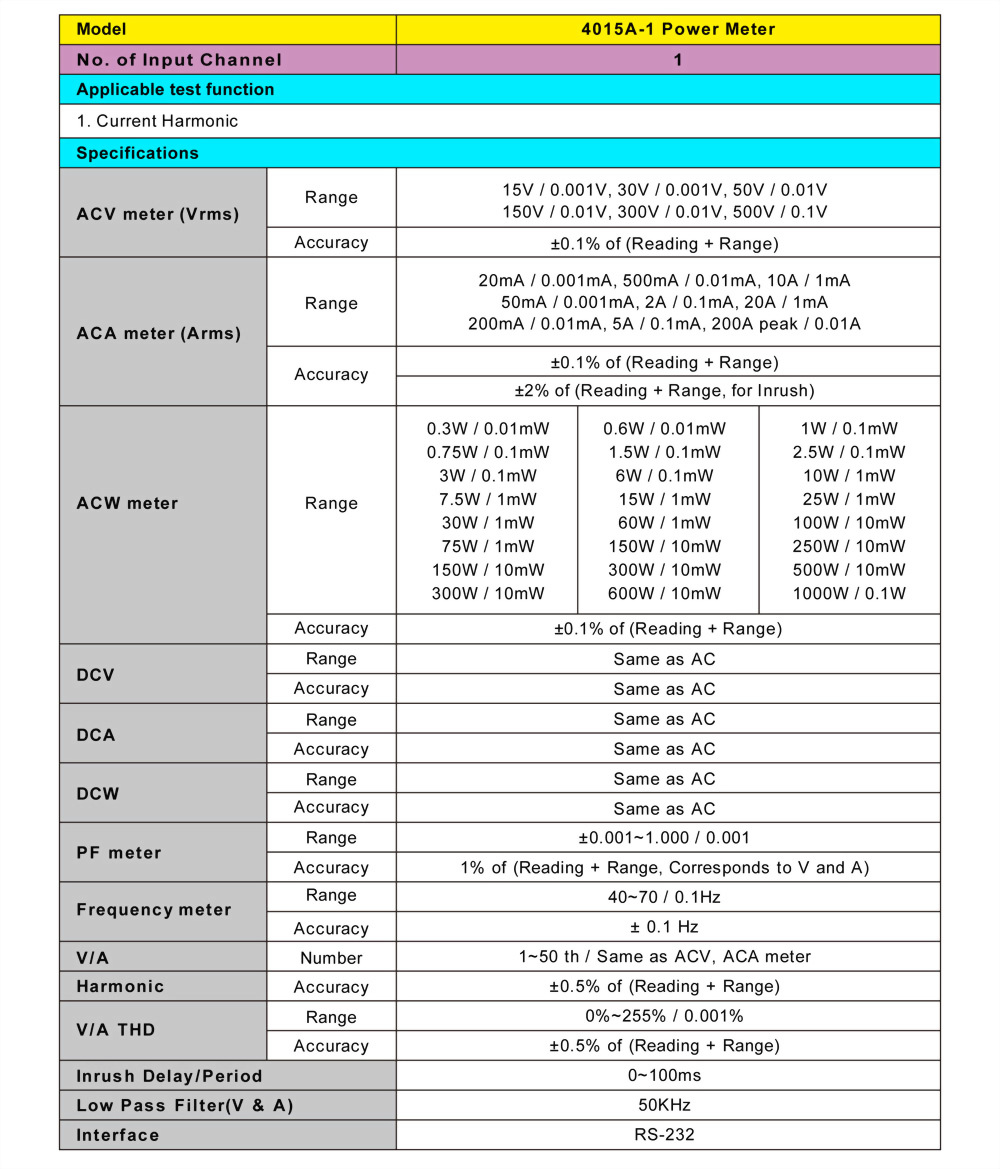

4015A-1 List of Specification and applicable features

5303 AVR Suitable test item & Specifications

PFR-100L/100M Suitable test item & Specifications

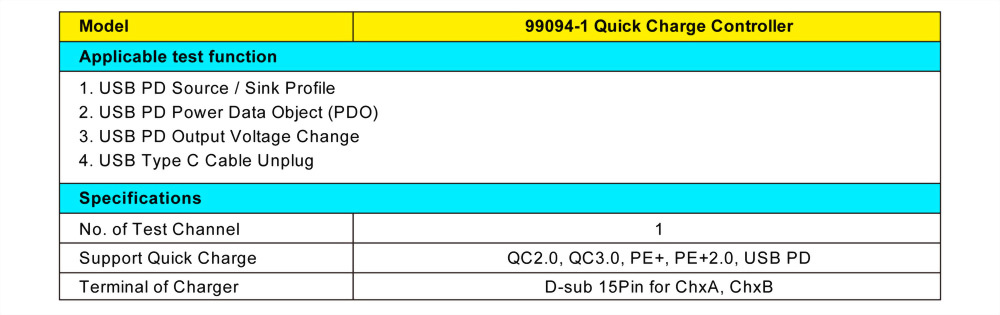

99094-1 List of Specification and applicable features

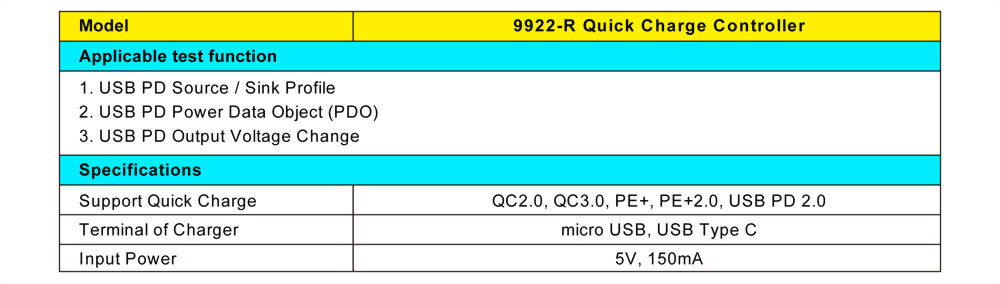

9922-R List of Specification and applicable features

Select the required device configuration version ( Basic / Standard / Value / Complete version ) according to product testing requirements
In addition to supporting USB PD, also supports QC2.0 / QC3.0 / PE+ / PE+2.0
Highly cost-effective, fully functional modular design test system
Operating environment of Windows 7 or higher (included)
Open architecture software platform

1. Support related hardware expansion

2. Edit test item function

3. Edit test program function

4. Edit statistical analysis report function

5. Online instrument control function

6. User authorization settings

7. Support Bar Code Reader

6050 USB PD ATE Test System

USB PD Test items and equipment configuration table

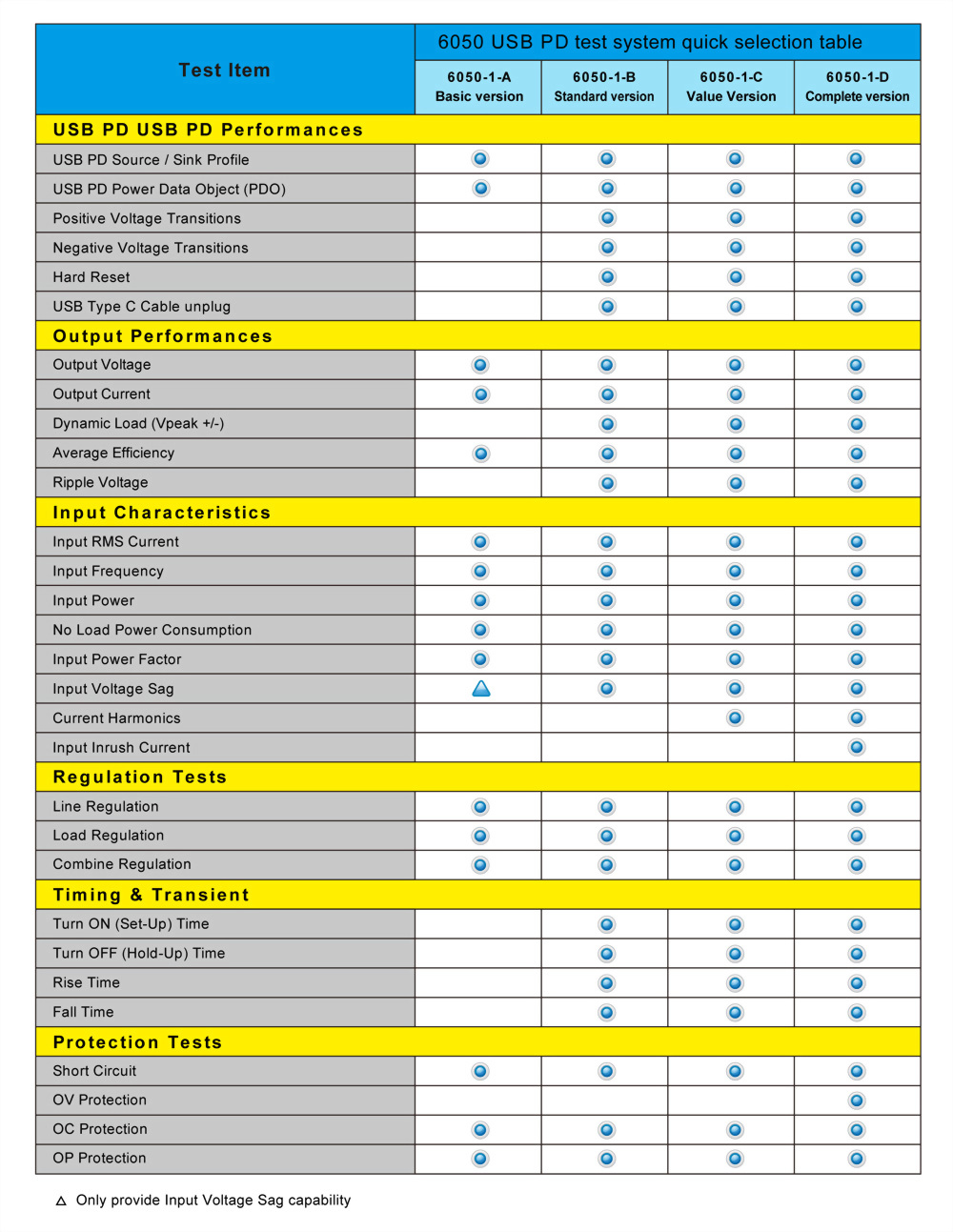

USB PD Single test system quick selection table

6050-1-A Single Output USB PD USB PD basic version：the single-group test system architecture is as shown in the table, APS-7000 Series AC Source, 3302F + 3310F series and 9922-R Quick Charge Controller.

The composition is shown below.

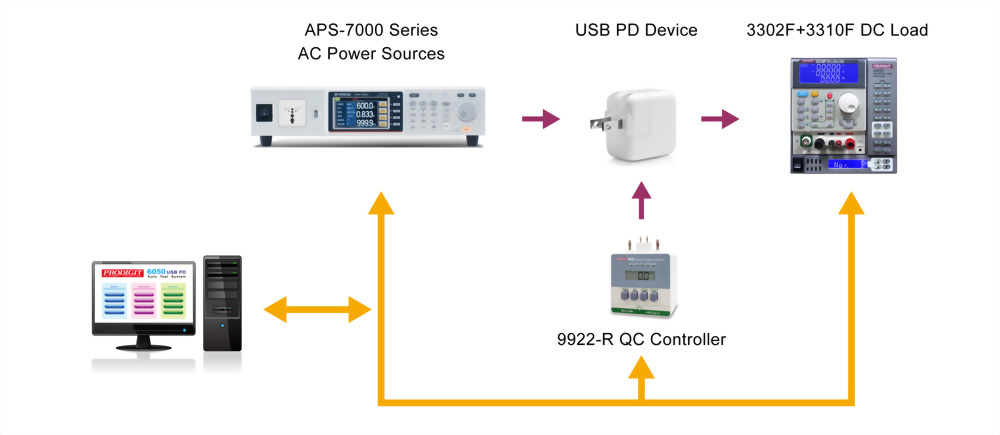

6050-1-A Block diagram of 6050-1-A system

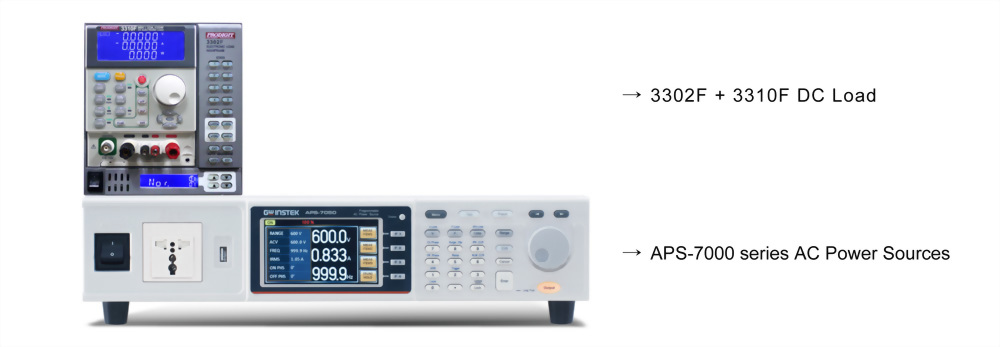

6050-1-A Single Channel Test System Configuration

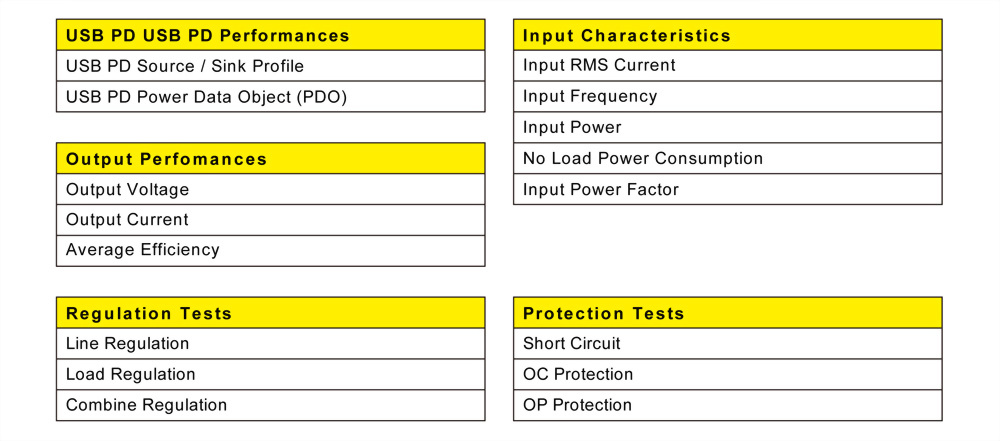

6050-1-A The testable items of basic version is as follows

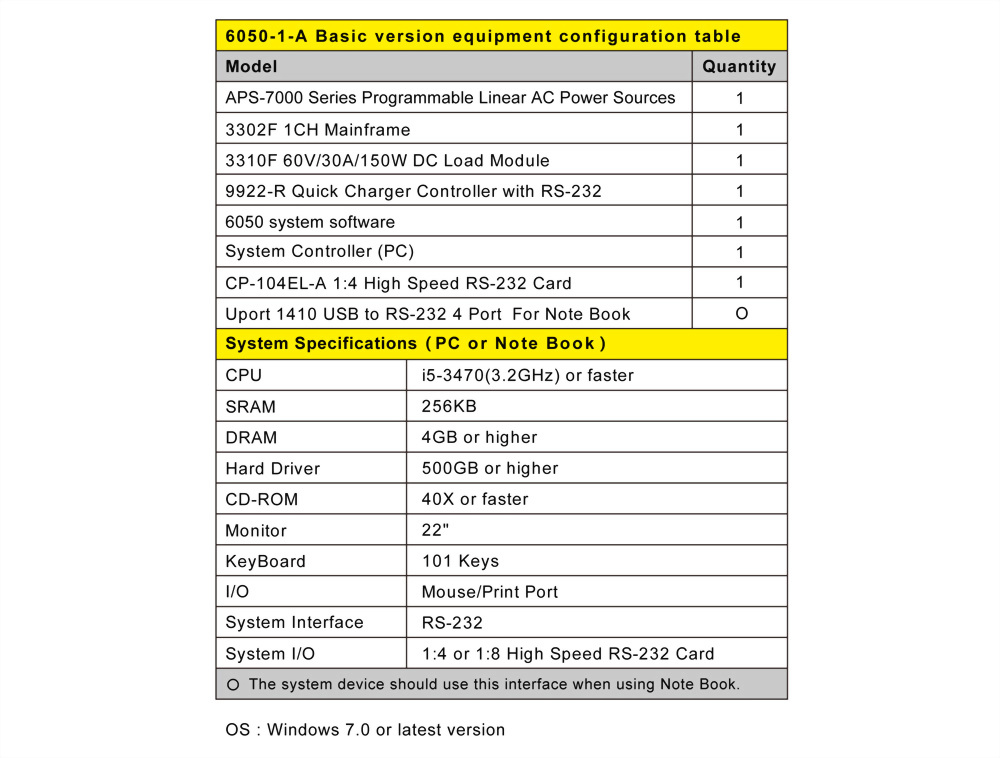

6050-1 Basic version equipment configuration table

6050-1-B Standard version (Basic version + USB PD characteristics and timing and transient testing + input and output characteristics)：adding 4031-PD Timing & Noise Meter and 99094-1 Single Channel Quick Charger Controller can increase USB PD characteristics and timing and transient testing + input and output characteristics test.

The composition is shown below.

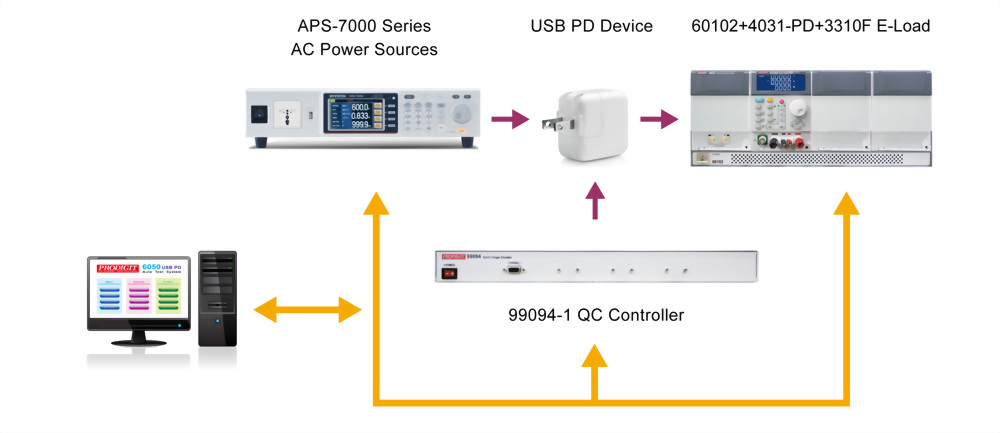

6050-1-B Block diagram of standard version

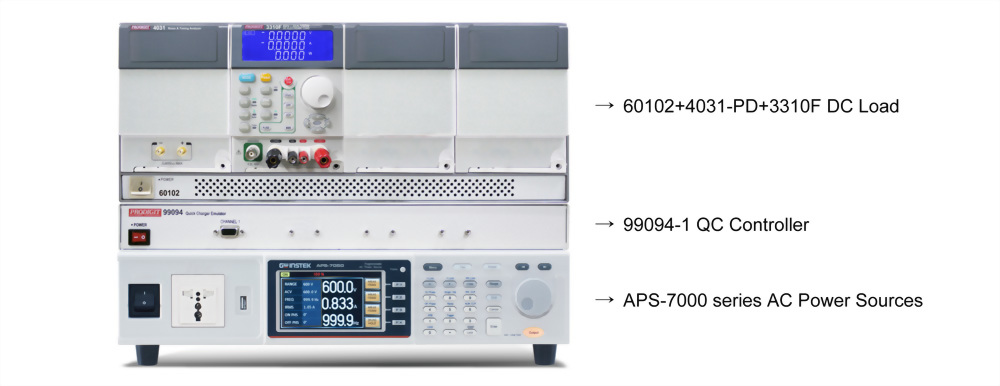

6050-1-B Single Channel Test System Configuration

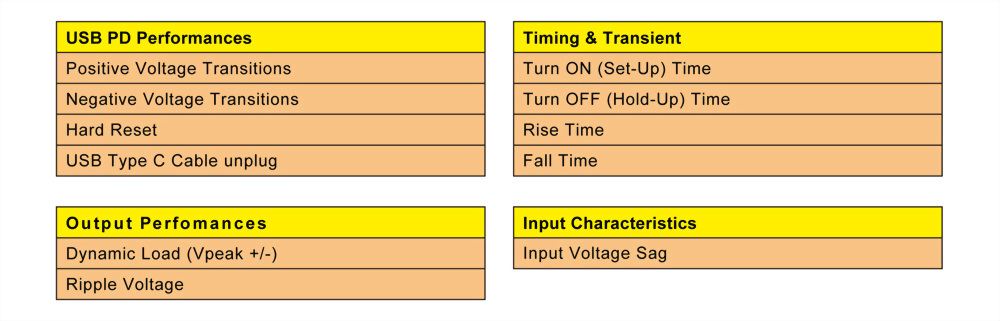

6050-1-B Standard version adding 4031-PD and 99094-1 can increase the test items

as shown in the orange block below.

6050-1-B Standard version equipment configuration table

6050-1-C Value version (Standard version + Input current harmonic) ：adding 4015-1 single channel power meter can increase the current harmonic Harmonics test.

The composition is shown below.

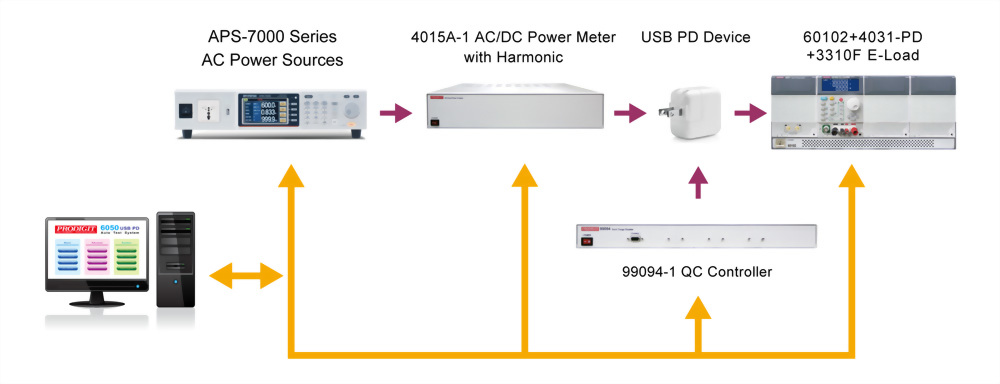

6050-1-C Block diagram of Value version

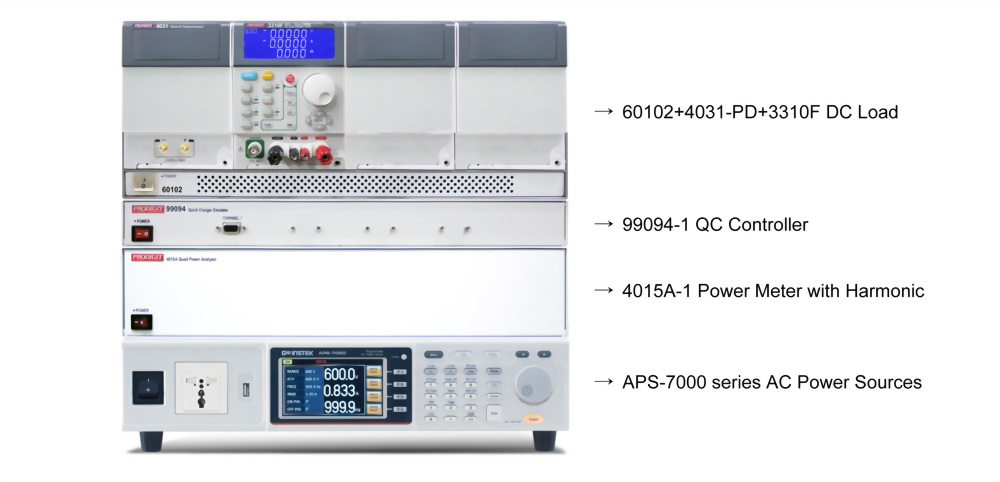

6050-1-C Single Channel Test System Configuration

6050-1-C Value version adding 4015A-1 can increase the test items

as shown in the following green block

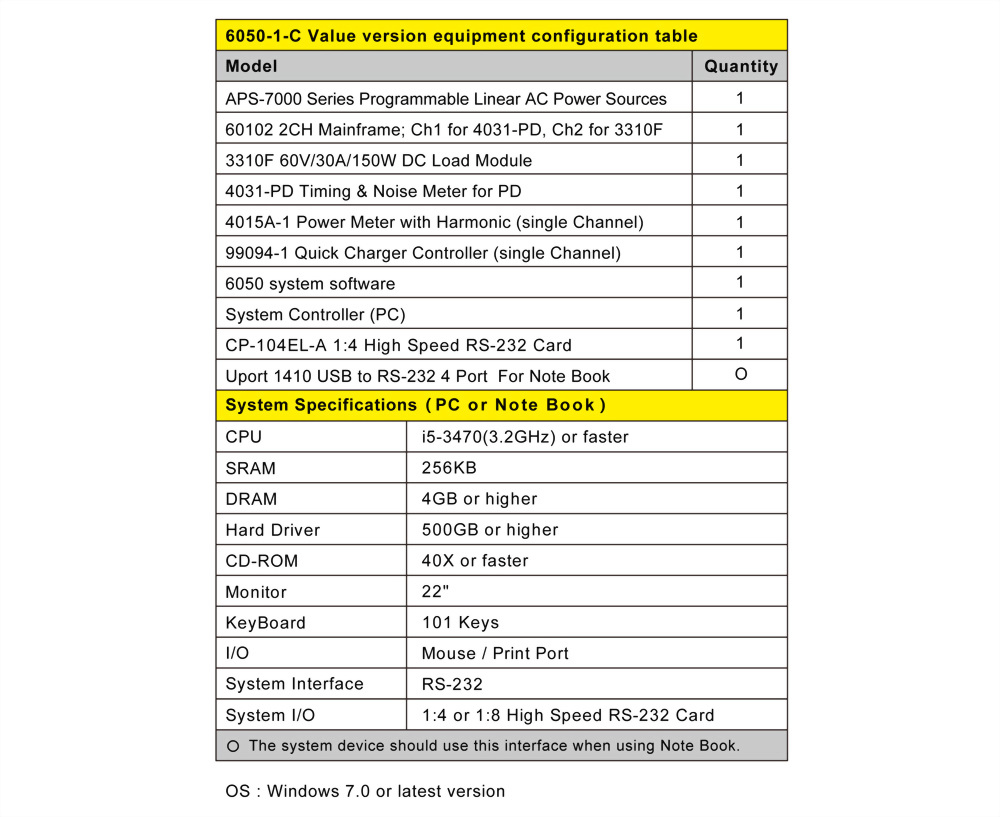

6050-1-C Value version equipment configuration table

6050-1-D The Complete version (standard version + input inrush current + over voltage protection) ：adds 5303 AVR and PFR-100L-1 to increase Input Inrush Current and over voltage protection tests.

The composition is shown below.

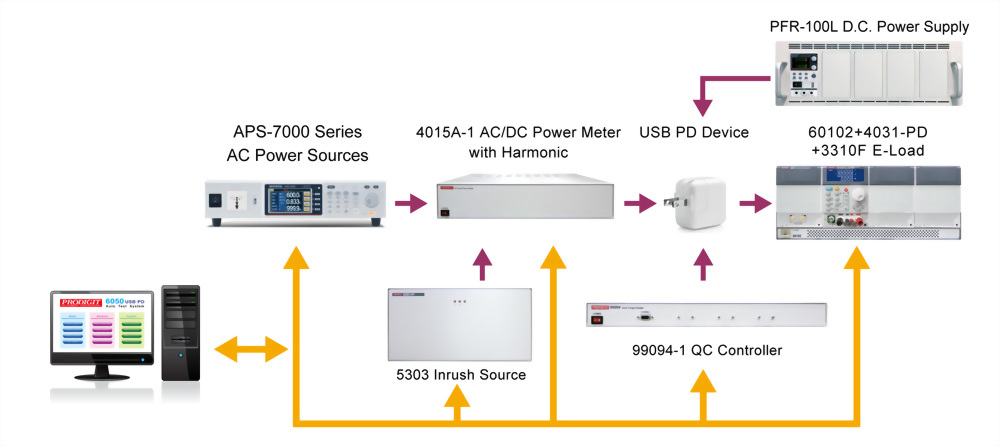

6050-1-D Block diagram of complete system

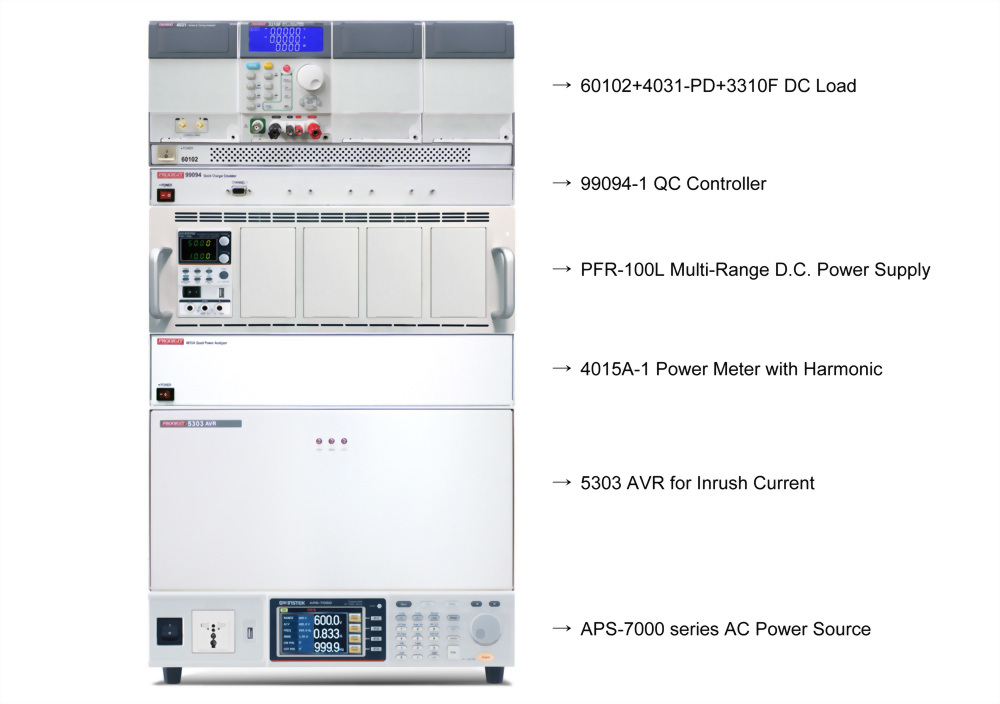

6050-1-D Single Channel Test System Configuration

6050-1-D Complete added 5303 and PFR-100L-1 the test items

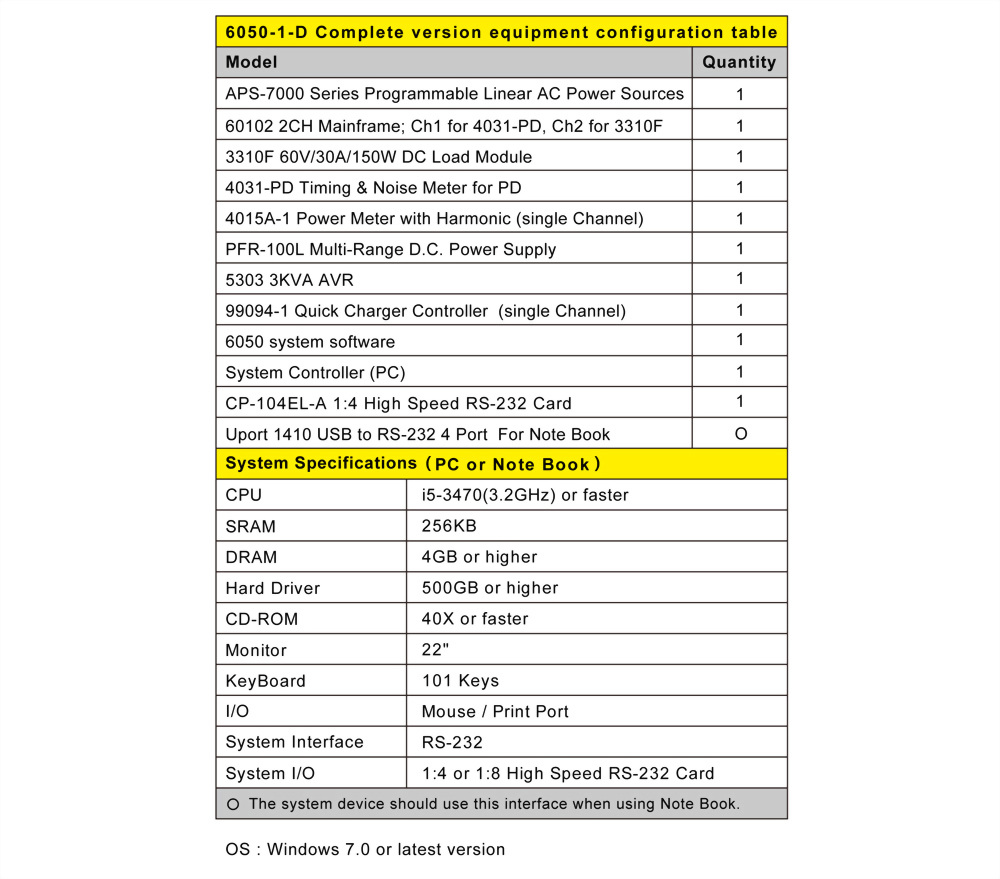

6050-1-D Complete version equipment configuration table

6050-1-A USB PD Single Test System（Basic version） 6050-1-B USB PD Single Test System（Standard version）
6050-1-C USB PD Single Test System（Value version） 6050-1-D USB PD Single Test System（Complete version）
