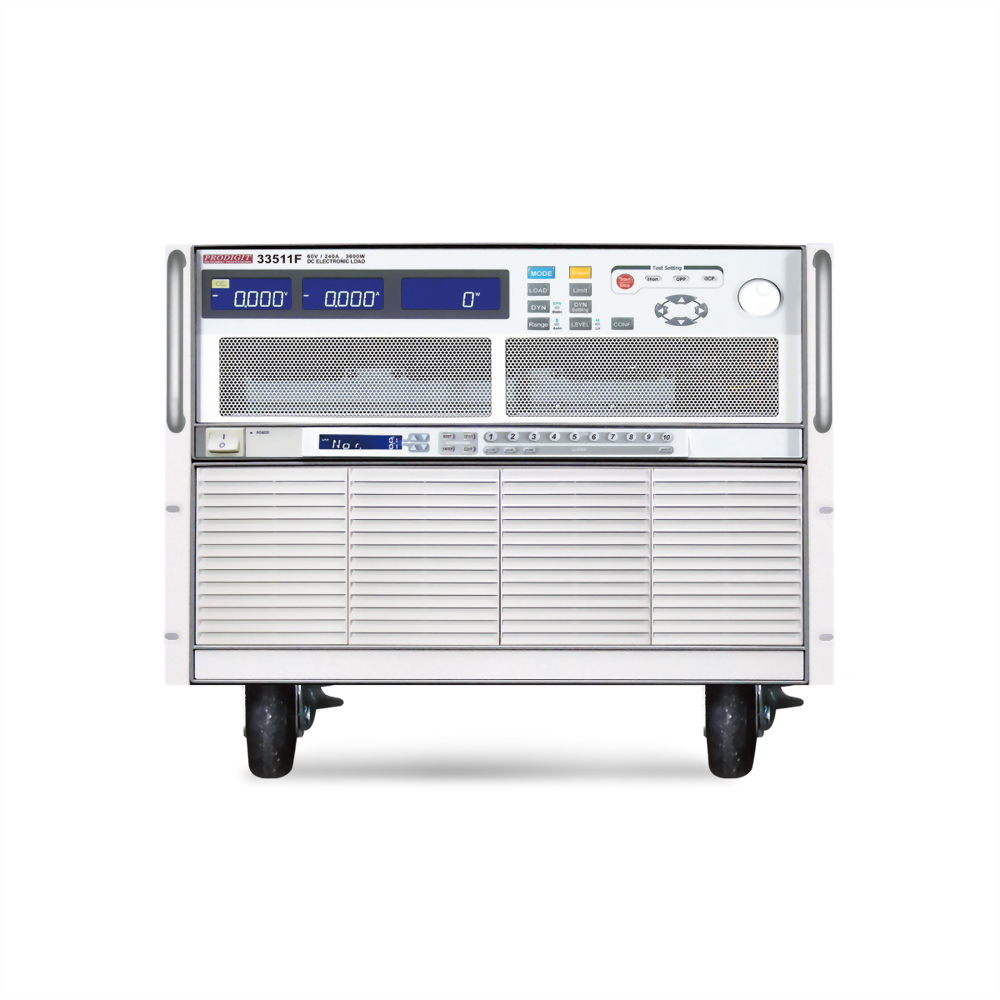

33511F High Power DC Electronic Load 60V,240A,3600W

60V,240A,3600W
Model : 33511F
  • 33500F Series has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and LAN interface.
  • SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
  • Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
  • Single key for OCP 、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
  • Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” +  “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.
  • 150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.

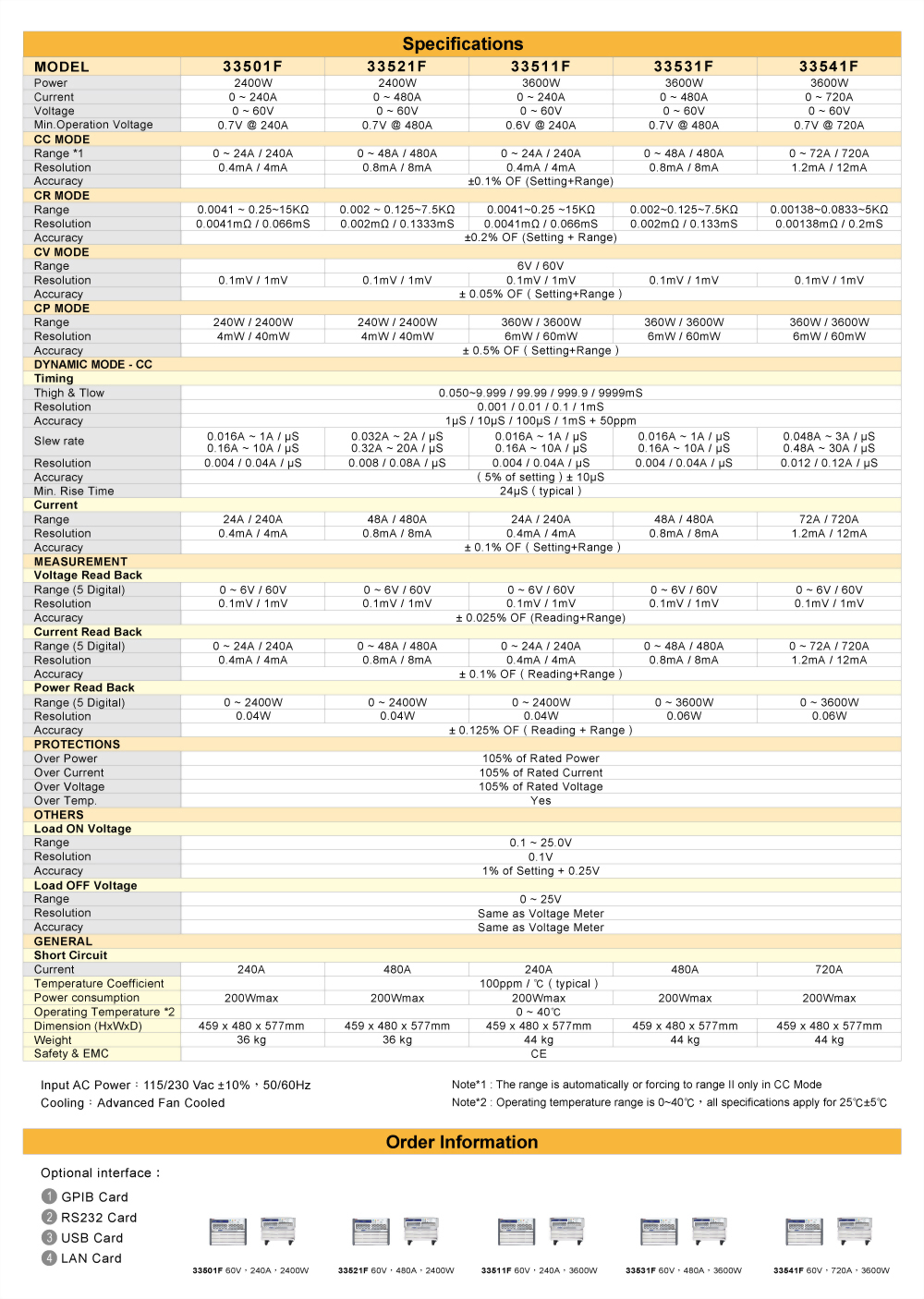

33500f-series-high-power-dc-electronic-load-specifications_01_en.jpg33500f-series-high-power-dc-electronic-load-specifications_02_en.jpg33500f-series-high-power-dc-electronic-load-specifications_03_en.jpg

  • 5 digit V/A/W Meter.
  • High-speed measurement and communication transmission.
  • Large LCD Display、setting values can be adjusted by rotary knob or push button.
  • Voltage、Current and Watt value can be displayed simultaneously.
  • OCP、OPP test function automatically.
  • Power ON status can be set.
  • CC, CR, CV, CP, Dynamic and Short operation mode.
  • SHORT time setting.
  • Protections against V,I,W, and °C.
  • Voltage meter display the polarity positive（”＋”）or negative（”－”）is selectable.
  • Optional Interface : GPIB、RS232、USB、LAN.
  • New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads



  • Voltage / Current source
  • SMPS transient response
  • CV/Current limit testing and battery emulation
  • Battery charger
  • Battery discharge
  • R&D Quality Control
  • ATE system
  • Production testing
33501F High Power DC Electronic Load  60V,240A,2400W33501F High Power DC Electronic Load  60V,240A,2400W（Desktop）
33511F High Power DC Electronic Load  60V,240A,3600W33511F High Power DC Electronic Load   60V,240A,3600W（Desktop）
33521F High Power DC Electronic Load  60V,480A,2400W33521F High Power DC Electronic Load   60V,480A,2400W（Desktop）
33531F High Power DC Electronic Load  60V,480A,3600W33531F High Power DC Electronic Load  60V,480A,3600W（Desktop）
33541F High Power DC Electronic Load  60V,720A,3600W33541F High Power DC Electronic Load  60V,720A,3600W（Desktop）
33512F High Power DC Electronic Load  60V,360A,5400W33532F High Power DC Electronic Load  60V,720A,5400W
33542F High Power DC Electronic Load  60V,1000A,5400W33513F High Power DC Electronic Load  60V,480A,7200W
33514F High Power DC Electronic Load  60V,600A,9000W33515F High Power DC Electronic Load  60V,720A,10800W
33516F High Power DC Electronic Load  60V,840A,12600W33517F High Power DC Electronic Load  60V,960A,14400W
33501F-05 High Power DC Electronic Load  120V , 240A , 2400W（Desktop）33501F-05 High Power DC Electronic Load  120V , 240A , 2400W
33501F-06 High Power DC Electronic Load  60V , 240A , 2500W（Desktop）33501F-06 High Power DC Electronic Load  60V , 240A , 2500W
33512F-05 High Power DC Electronic Load  120V , 360A , 5400W33513F-05 High Power DC Electronic Load   60V , 440A , 6600W
33521F-05 High Power DC Electronic Load  60V , 500A , 2500W（Desktop）33521F-05 High Power DC Electronic Load  60V , 500A , 2500W
33532F-05 High Power DC Electronic Load  150V , 720A , 5400W33532F-06 High Power DC Electronic Load  120V , 720A , 5400W
GPIB CardRS-232 Card
USB CardLAN Card
9923 Optional function：programmable DC load current waveformOptional function：BMS protection function test
