6050-4（3310F）USB PD 4 Channel ATE Test System

Model : 6050-4（3310F）

APS-7000 Series Programmable Linear AC Power Sources Suitable test item & Specifications

For IEC-61000-4-11

3310F DC E-Load List of Specification and applicable features

4034-PD List of Specification and applicable features

4015A-2 List of Specification and applicable features

4013A List of Specification and applicable features

5303 AVR Suitable test item & Specifications

PFR-100L/100M Suitable test item & Specifications

99094-4 List of Specification and applicable features

9922-R List of Specification and applicable features

Can test 4 UUT at the same time to improve test efficiency and save test time and cost

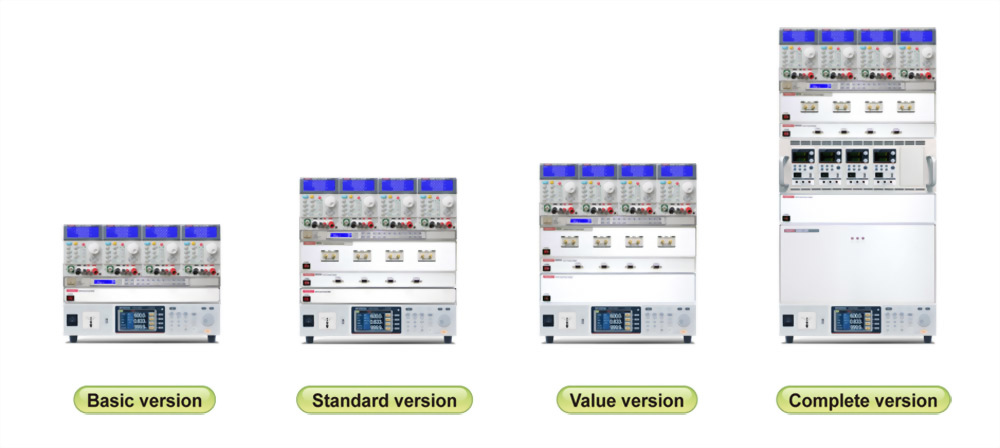

Select the required device configuration version ( Basic / Standard / Value / Complete version ) according to product testing requirements
In addition to supporting USB PD, also supports QC2.0 / QC3.0 / PE+ / PE+2.0
Highly cost-effective, fully functional modular design test system
Operating environment of Windows 7 or higher (included)
Open architecture software platform

1. Support related hardware expansion

2. Edit test item function

3. Edit test program function

4. Edit statistical analysis report function

5. Online instrument control function

6. User authorization settings

7. Support Bar Code Reader

6050-4（3310F）USB PD 4 Channel ATE Test System

USB PD Test items and equipment configuration table

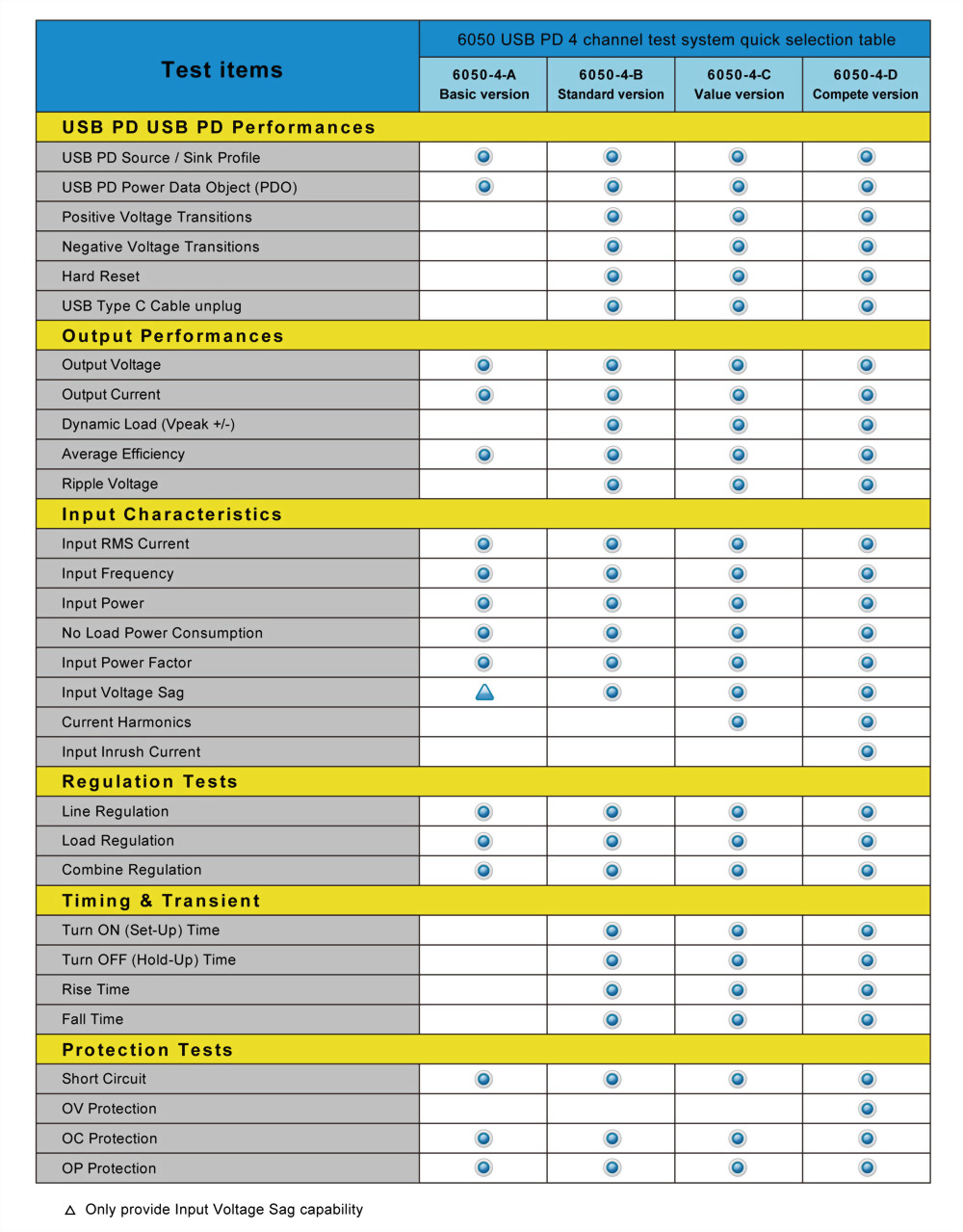

6050 USB PD 4 channel test system quick selection table

6050-4-A Single Output USB PD basic verion 4 channel + AB switch test system Configuration is as shown in the table, just needs APS-7000 series AC Power Source, 3300F + 3310F series + 9922-R Quick Charge Controller x 4 and 4013A Power Meter.

The basic version system configuration is shown below.

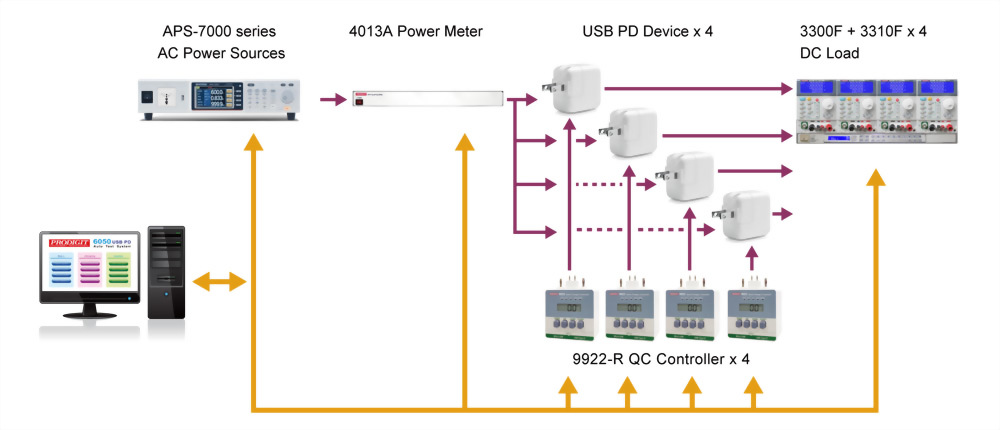

6050-4-A Basic version 4 channel test system block diagram

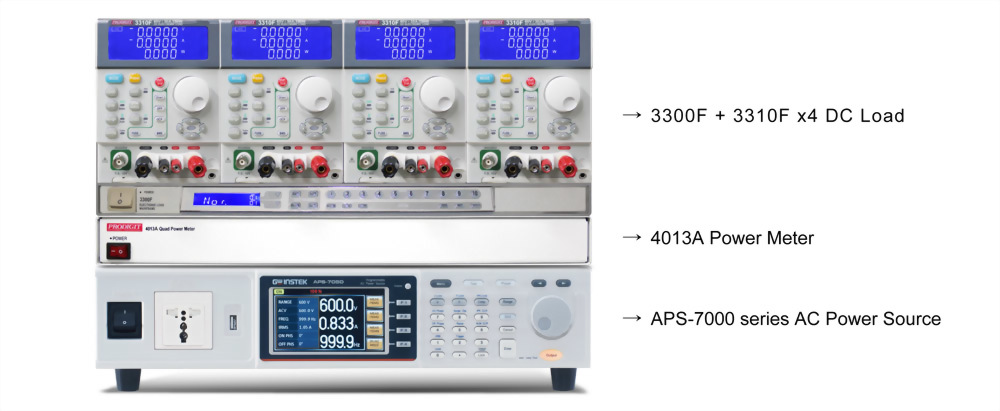

6050-4-A 4 Channel Test System Configuration

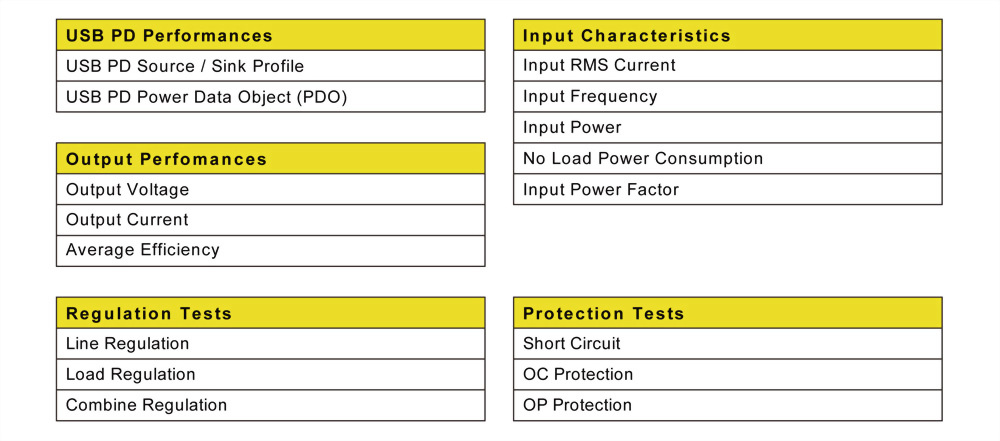

6050-4-A Basic version 4 channel test system test items are as follows

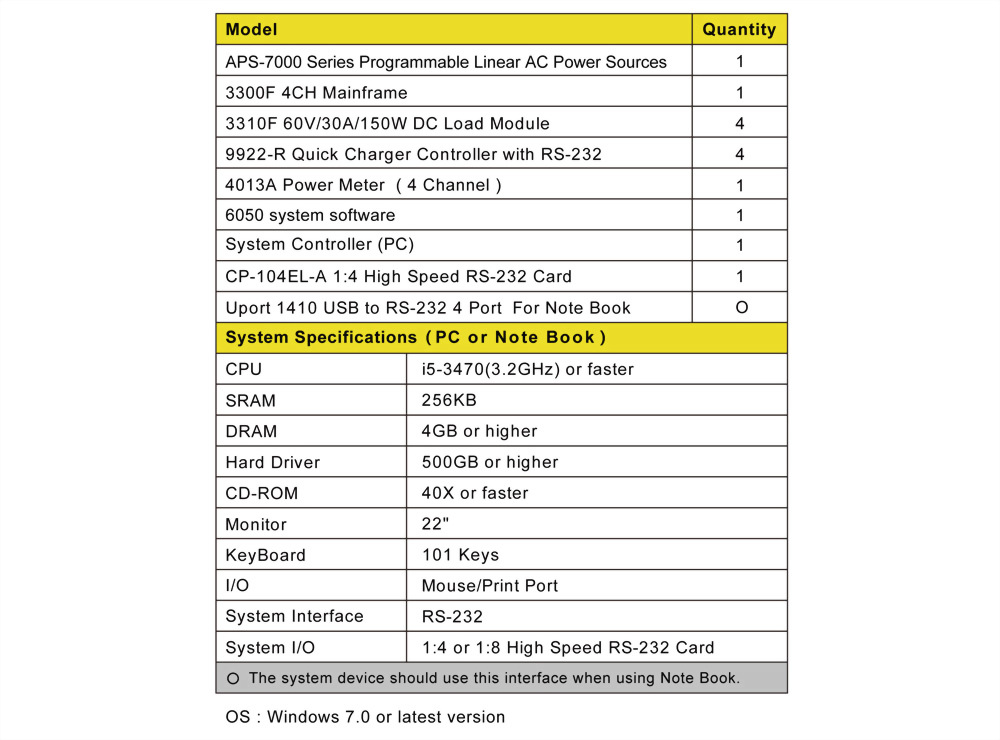

6050-4-A Basic version 4 channel test system equipment configuration table

6050-4-B Standard version 4 channel test system is consisted of basic version by adding 4034-PD Timing & Noise Meter and 99094 can increase USB PD characteristics and timing and transient testing

The standard version system configuration is shown below.

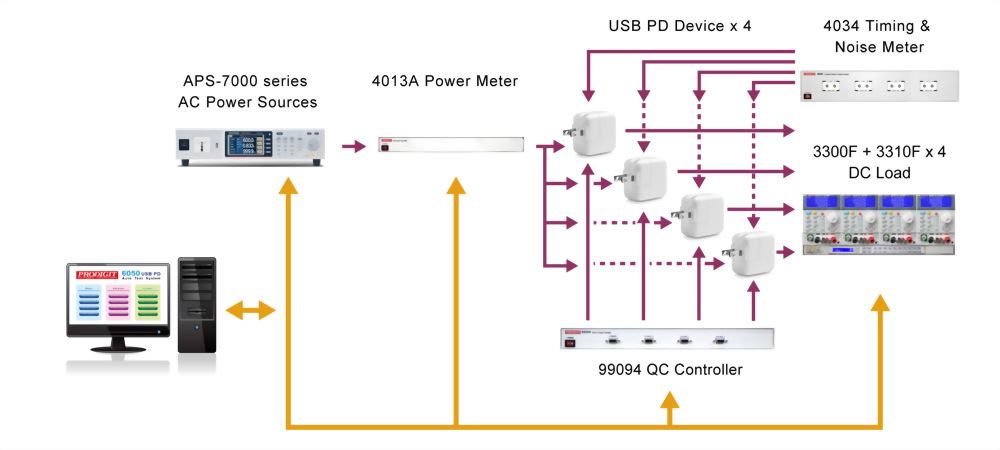

6050-4-B Standard version 4 channel test system block diagram

6050-4-B 4 Channel Test System Configuration

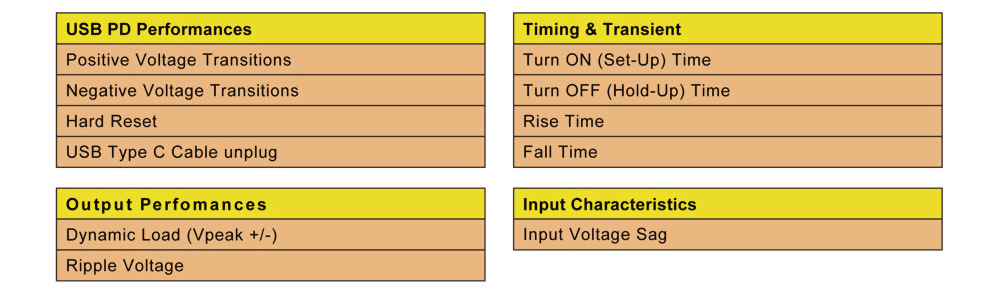

6050-4-B Standard version 4 channel by adding 4034-PD and 99094 can increase the test items as shown in the block below.

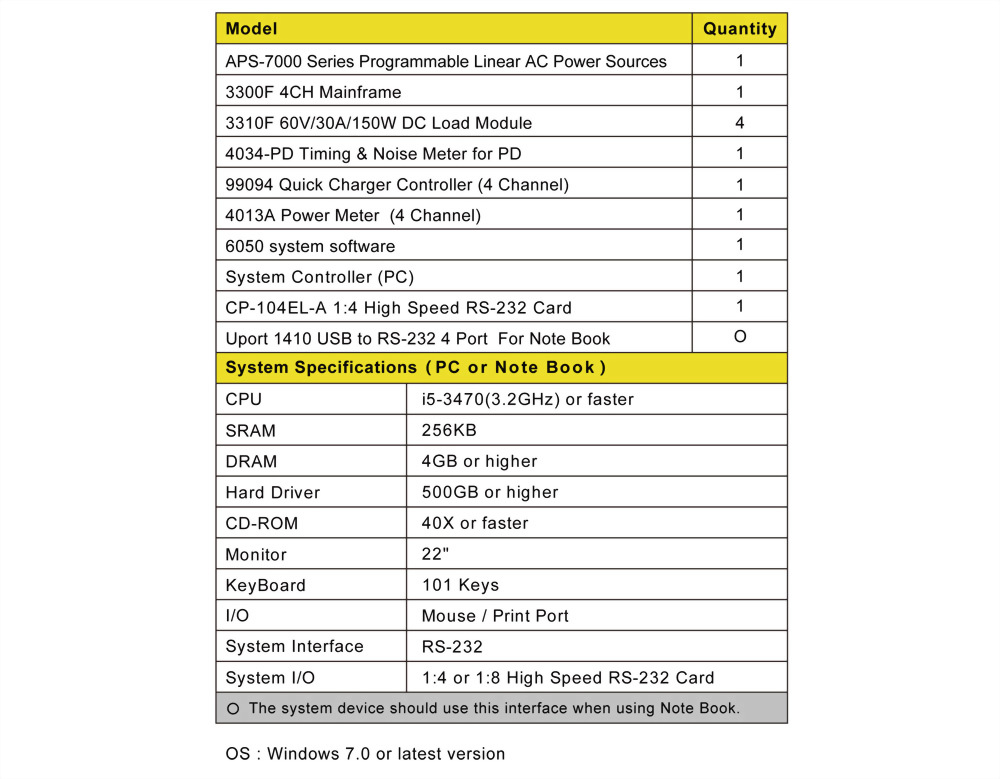

6050-4-B Standard version 4 channel test system equipment configuration table

6050-4-C Value version (Standard version + Input current harmonic) 4 channel changing 4013A to 4015A power meter with Harmonic can increase the current harmonic Harmonics test.

The value version system configuration is shown below.

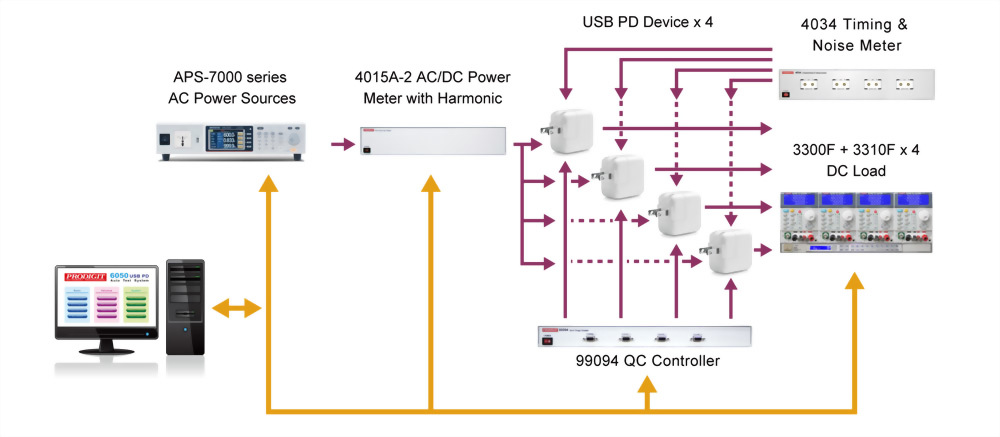

6050-4-C Value version 4 channel test system block diagram

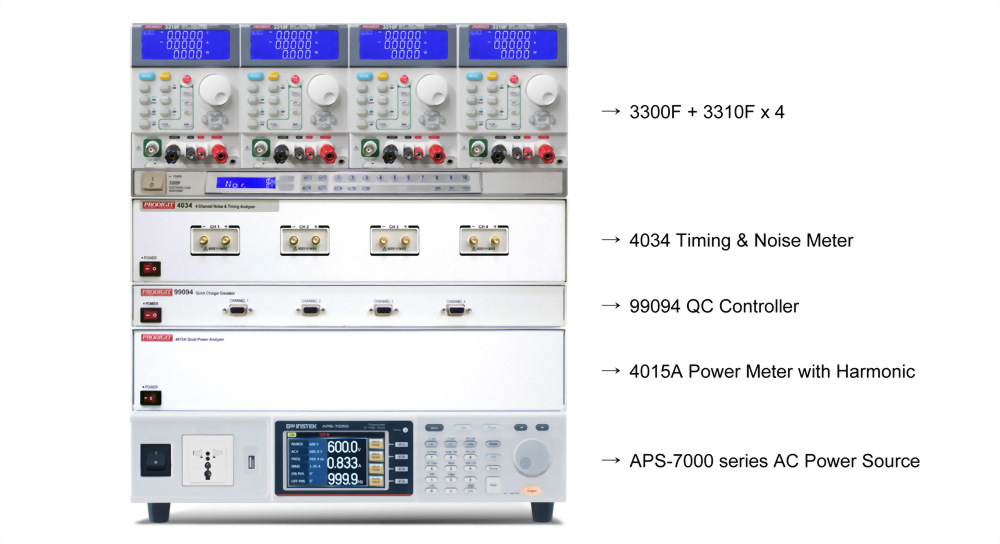

6050-4-C 4 Channel Test System Configuration

6050-4-C Value version 4 channel test system : Changing 4013A to 4015A power meter can increase the test items as shown in the following green block

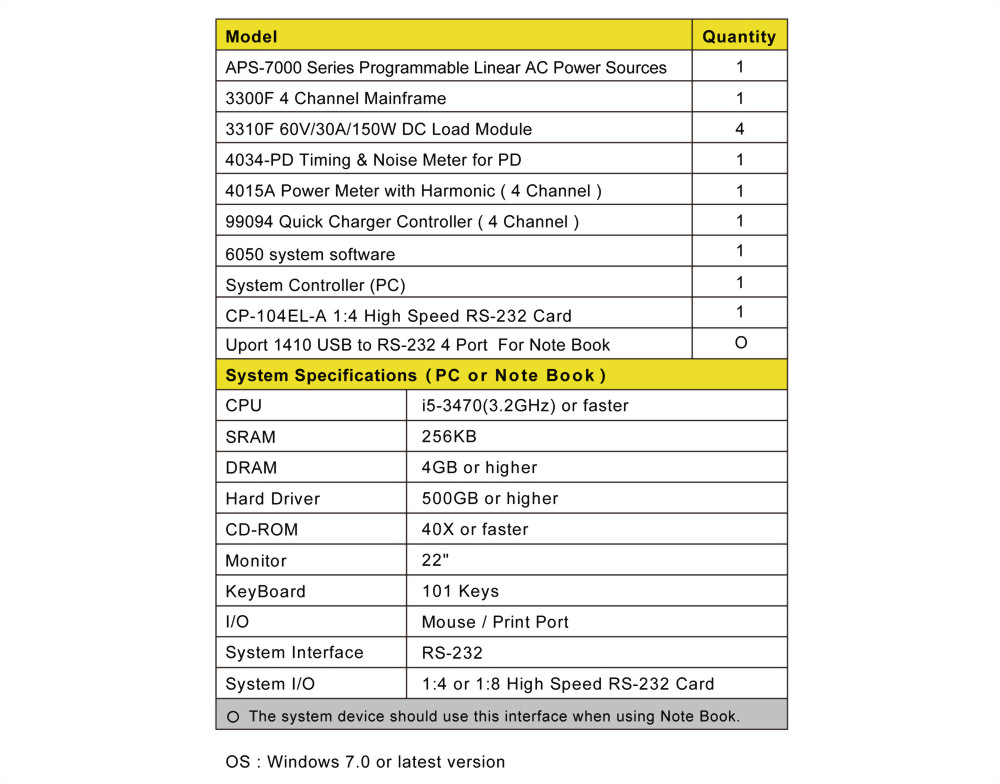

6050-4-C Value version 4 channel test system equipment configuration table

6050-4-D Complete version (Standard version + Input Current Harmonics + Input Inrush Current)

4 channel test system : adding 5303 AVR and PFR-100L D.C. Power Supply to increase Input Inrush Current and over voltage protection tests.

The Complete version system configuration is shown below.

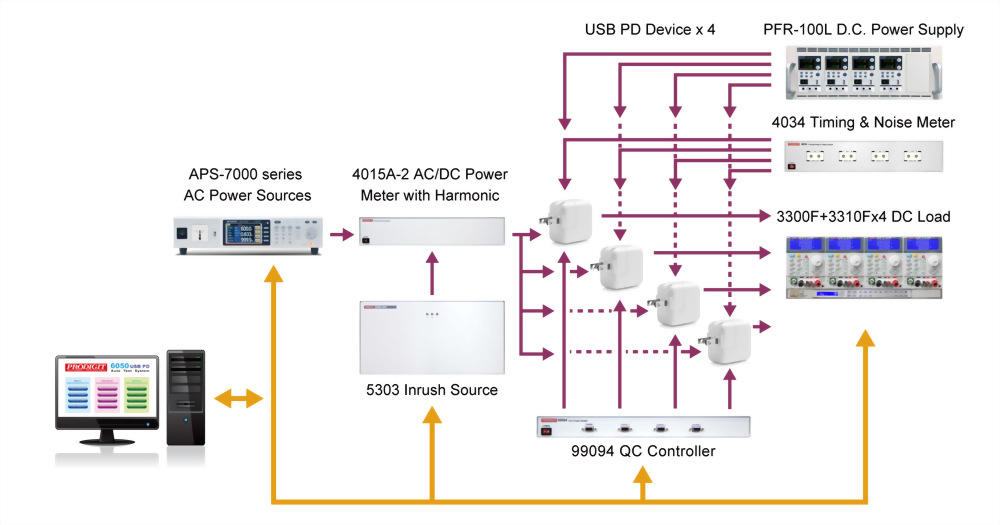

6050-4-D Complete version 4 channel test system block diagram

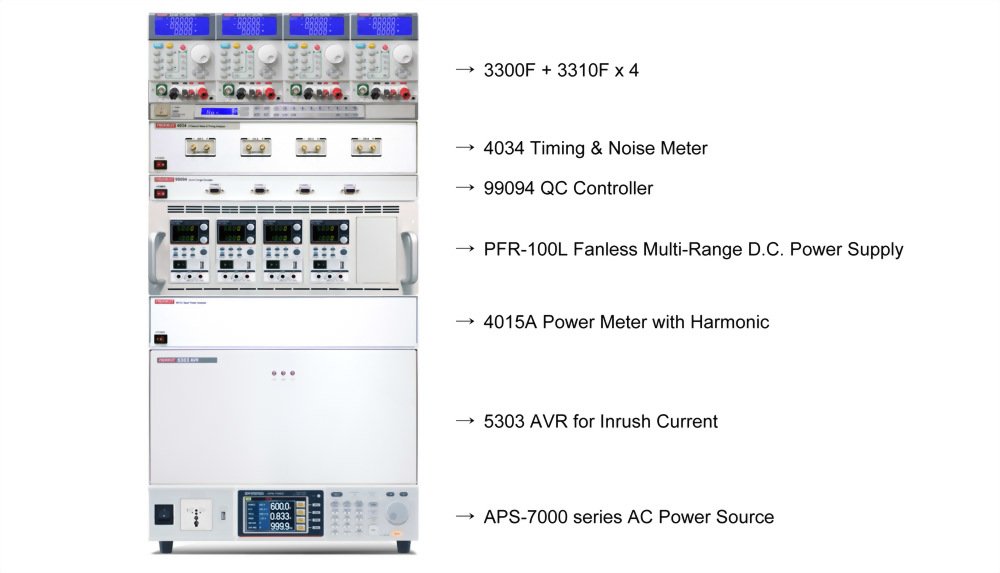

6050-4-D 4 Channel Test System Configuration

6050-4-D Complete version 4 channel test system by adding 5303 AVR and PFR-100L D.C. Power Supply can increase the test items

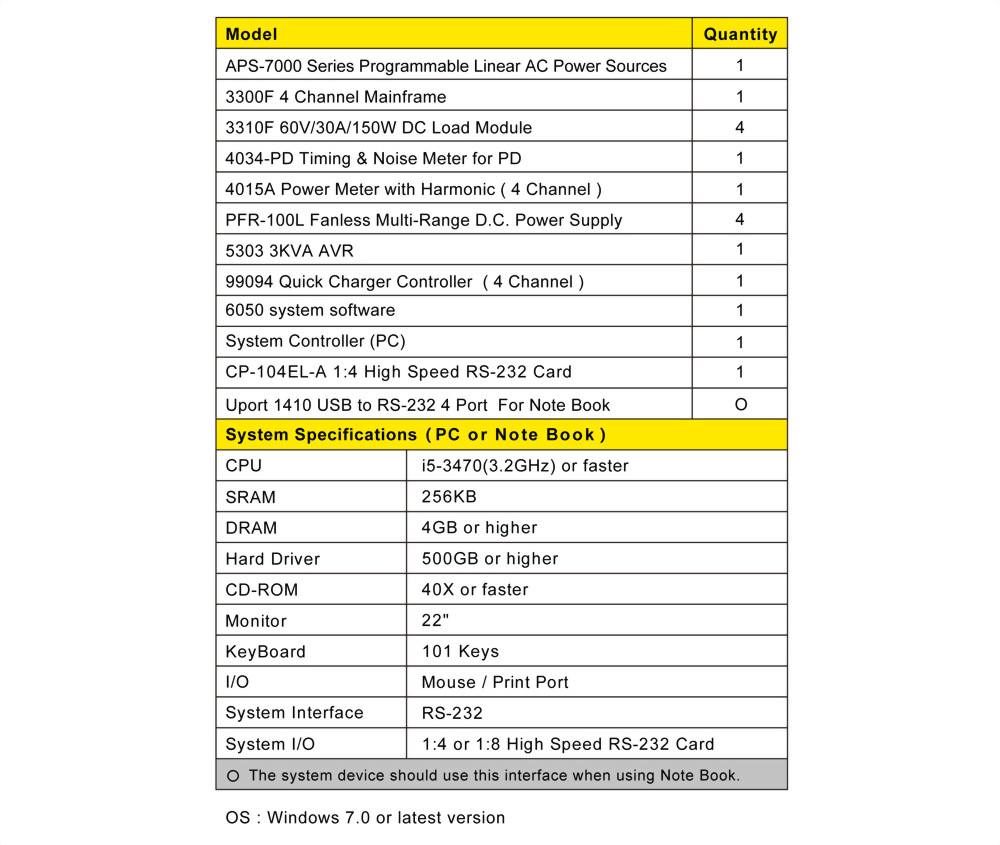

6050-4-D Complete version 4 channel test system equipment configuration table

6050-4-A（3310F）USB PD 4 Channel ATE Test System（Basic version） 6050-4-B（3310F）USB PD 4 Channel ATE Test System（Standard version）
6050-4-C（3310F）USB PD 4 Channel ATE Test System（Value version） 6050-4-D（3310F）USB PD 4 Channel ATE Test System（Complete version）
