• 6010 Charger / Quick Charger / Adapter / LED Driver Test System is able to meet multi-types power products test requirements，and its multi-U.U.T test simultaneously capability can significantly enhance the production line throughput. It also possess multi-modular combination that includes low noise analog AC source  with Triac to simulate output, four sets precision power meter, two or four sets ripple noise / timing measurement module, four sets OVP DC power supply, 3310F series & 3332F/3336F Electronic Load module and unique design 3340G series for LED power driver output test.


• Test items are included with five categories Power Test Features :

1. Output Performances -- the general performance of U.U.T
2. Input Characteristics -- the input power parameters of U.U.T
3. Regulation Tests -- the regulation of U.U.T when the change of the input power and load
4. Timing & Transient -- measuring the timing and transient of Turn ON, Turn OFF
5. Protection Tests -- trigger and test the protection circuit of U.U.T.

Comprehensive  Test  Items

LED Driver Test Items

–  Output Performances

• DC Output Voltage
• DC Output Current
• Ripple Current (RMS & Peak-to-Peak)
• Dimming Current (PWM & Triac mode)
• Dimming Frequency
• Dimming Duty
• Efficiency
• Hold ON adjustment
• Overshoot Voltage

• Input Inrush Current
• Input RMS Current
• Input Peak Current
• Input Power
• Input Power Factor
• Input Voltage RAMP
• Input Frequency RAMP
• Input Voltage Interrupt (AC cycle drop out)
• Input Power Line Disturbance Simulation

• Load Regulation
• Line Regulation
• Combine Regulation

• Set-up Time (Turn ON Time)
• Hold-up Time (Turn OFF Time)
• Rise Time
• Fall Time

• Short Circuit Test
• OV Protection
• OC Protection
• OP Protection

• TTL Signal Control
• Relay Control

Charger / Adapter Test Items

–  Output Performances

• DC Output Voltage
• DC Output Current
• Efficiency
• Hold ON adjustment
• Overshoot Voltage
• Overshoot Current
• Noise (RMS & Peak-to-Peak)

• Input Inrush Current
• Input RMS Current
• Input Peak Current
• Input Power
• Input Power Factor
• Input Voltage RAMP
• Input Frequency RAMP
• Input Voltage Interrupt (AC cycle drop out)
• Input Power Line Disturbance Simulation

• Load Regulation
• Line Regulation
• Combine Regulation
• Dynamic Load Regulation
• Sync. dynamic Load Regulation

• Set-up Time (Turn ON Time)
• Hold-up Time (Turn OFF Time)
• Rise Time
• Fall Time

• Short Circuit Test
• OV Protection
• OC Protection
• OP Protection
• Temperature Simulation

• Average Efficiency Test

• TTL Signal Control
• Relay Control

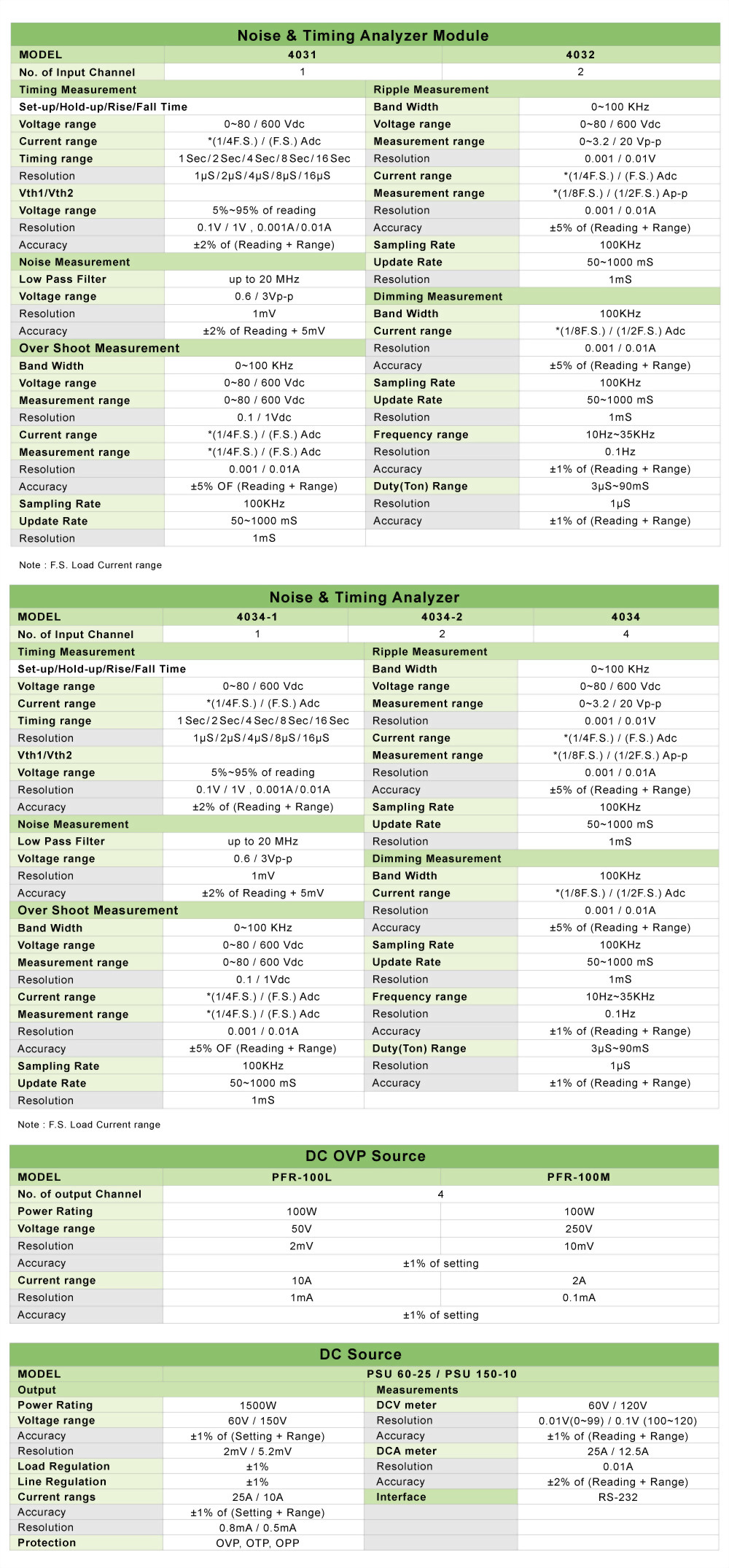

• Cost effective and full - featured modular design
• Multi - function test capability for charger, adapter, LED driver power
• Multi-U.U.T test simultaneously capability，significantly enhance the production line throughput
• Operating environment of Windows 7 or higher ( included )
• Open architecture software platform
• Support related hardware expansion

1. User editable test item
2. User editable test program
3. User editable report format & statistical report
4. On-line control function
5. User authority control
6. Support Bar Code Reader
