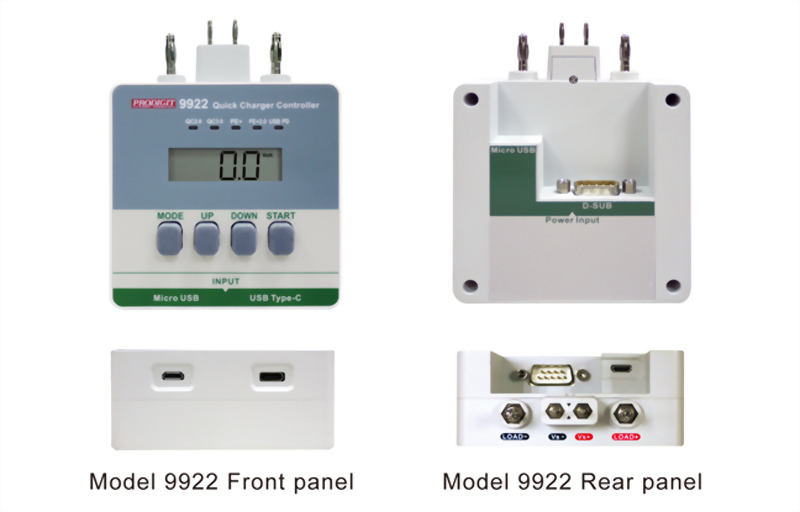

9922-R Quick Charger Controller

Built-in RS232
Model : 9922-R


  • Support quick charger:QC2.0 / QC3.0 / PE+ / PE+2.0 / USB PD
  • Suitable for all Electronic Load
  • Provide communication interface: RS232
9922-r-applications_01_en.jpg9922-r-applications_02_en.jpg9922-r-applications_03_en.jpg9922-r-applications_04_en.jpg9922-r-applications_05_en.jpg9922-r-applications_06_en.jpg9922-r-applications_07_en.jpg9922-r-applications_08_en.jpg9922-r-applications_09_en.jpg9922-r-applications_10_en.jpg9922-r-applications_11_en.jpg9922-r-applications_12_en.jpg9922-r-applications_13_en.jpg

9922-R Quick Charger Controller
