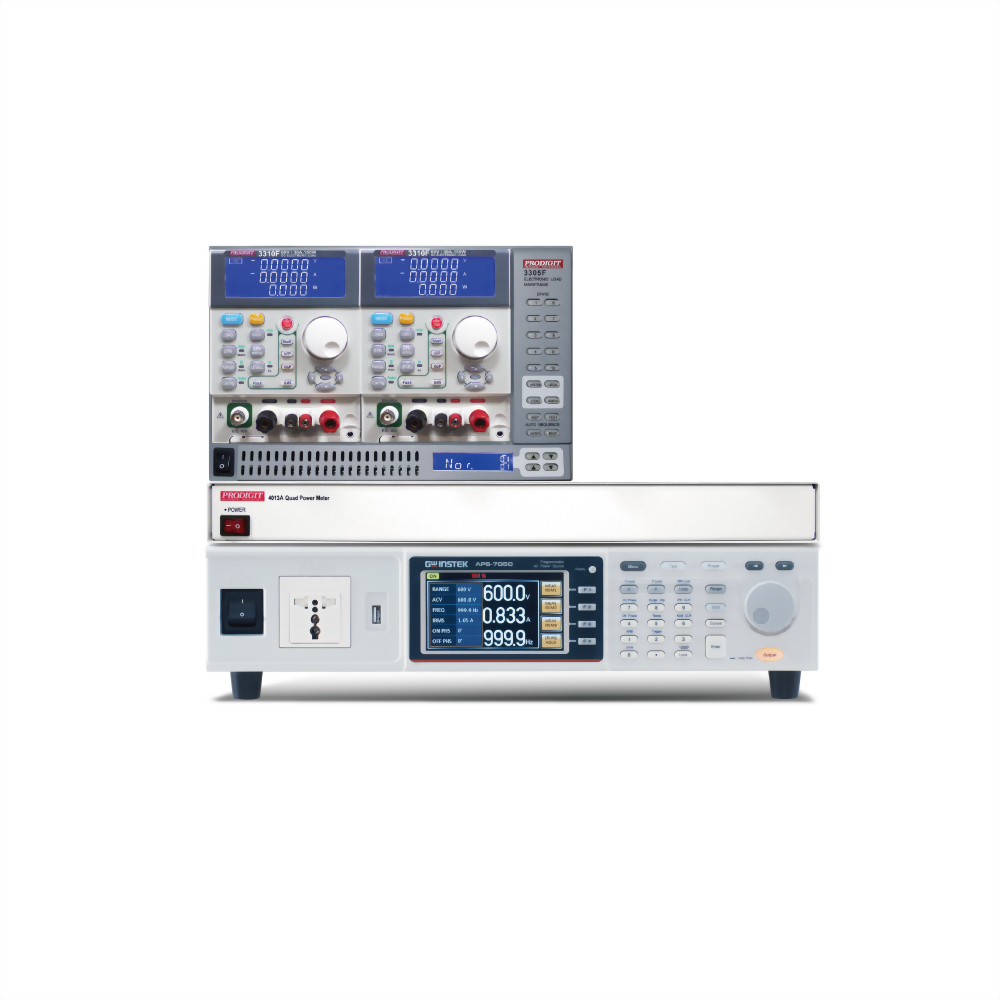

6050-2（3310F）USB PD Dual-channel Test System

Model : 6050-2（3310F）

APS-7000 Series Programmable Linear AC Power Sources Suitable test item & Specifications

For IEC-61000-4-11

3310F DC E-Load List of Specification and applicable features

4013A-2 List of Specification and applicable features

4015A-2 List of Specification and applicable features

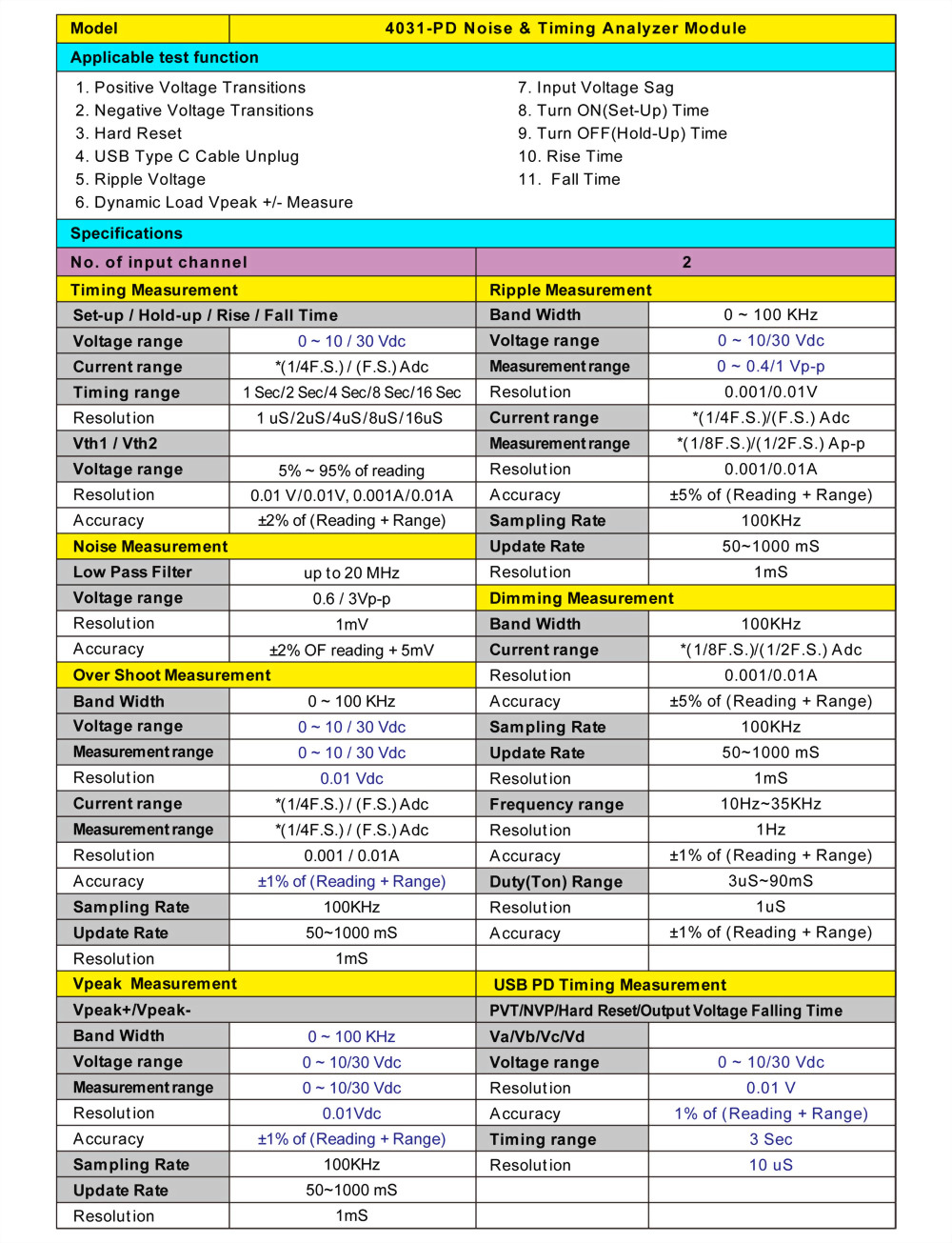

4031-PD List of Specification and applicable features

5303 AVR Suitable test item & Specifications

PFR-100L/100M Suitable test item & Specifications

99094-2 List of Specification and applicable features

9922-R List of Specification and applicable features

2 sets of U.U.T can be tested at the same time to improve test efficiency and save test time and cost
Select the required device configuration version ( Basic / Standard / Value / Complete version ) according to product testing requirements
In addition to supporting USB PD, also supports QC2.0 / QC3.0 / PE+ / PE+2.0
Highly cost-effective, fully functional modular design test system
Operating environment of Windows 7 or higher (included)
Open architecture software platform

1. Support related hardware expansion

2. Edit test item function

3. Edit test program function

4. Edit statistical analysis report function

5. Online instrument control function

6. User authorization settings

7. Support Bar Code Reader

6050-2（3310F）USB PD DUAL-CHANNEL TEST SYSTEM

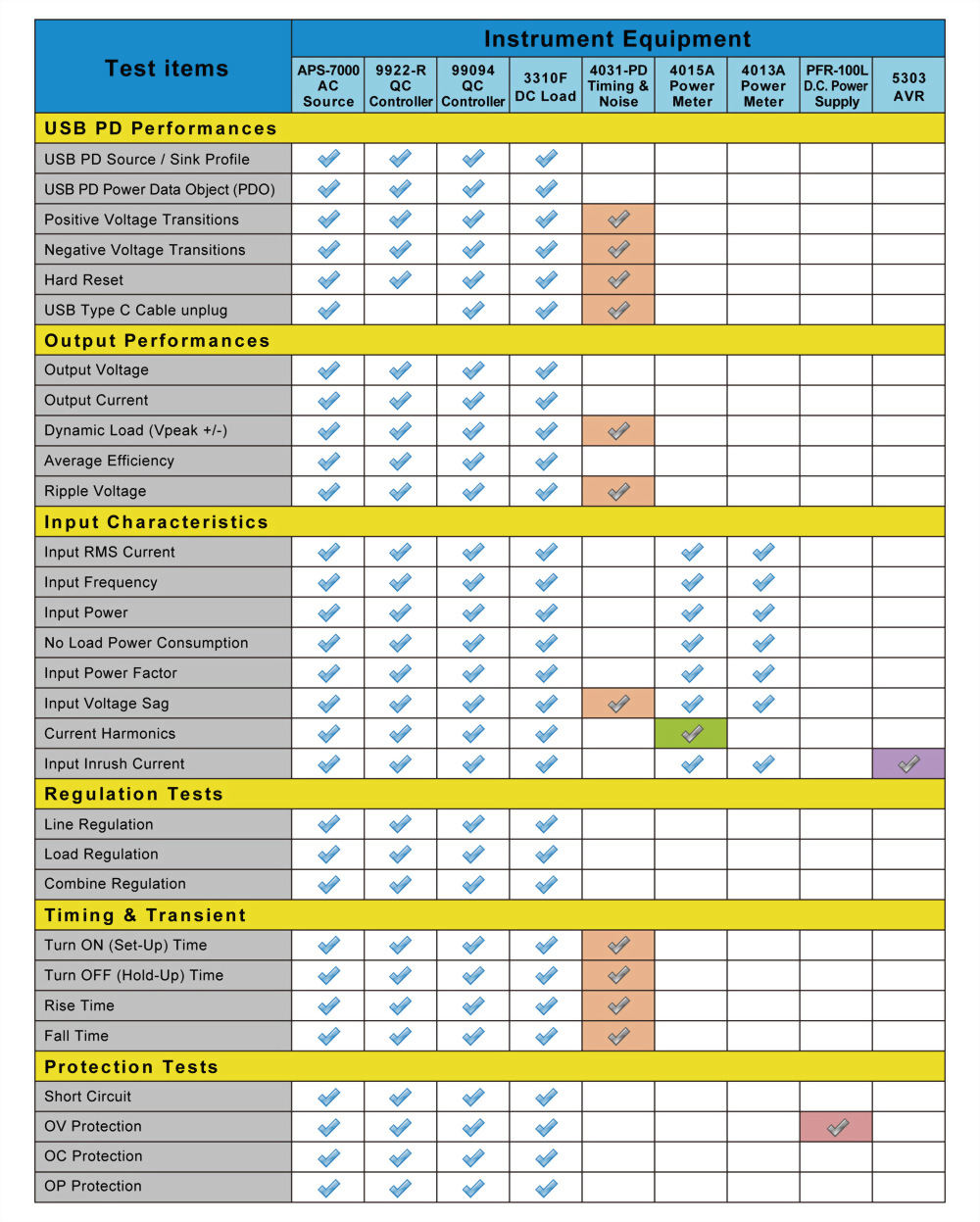

USB PD Test items and equipment configuration table

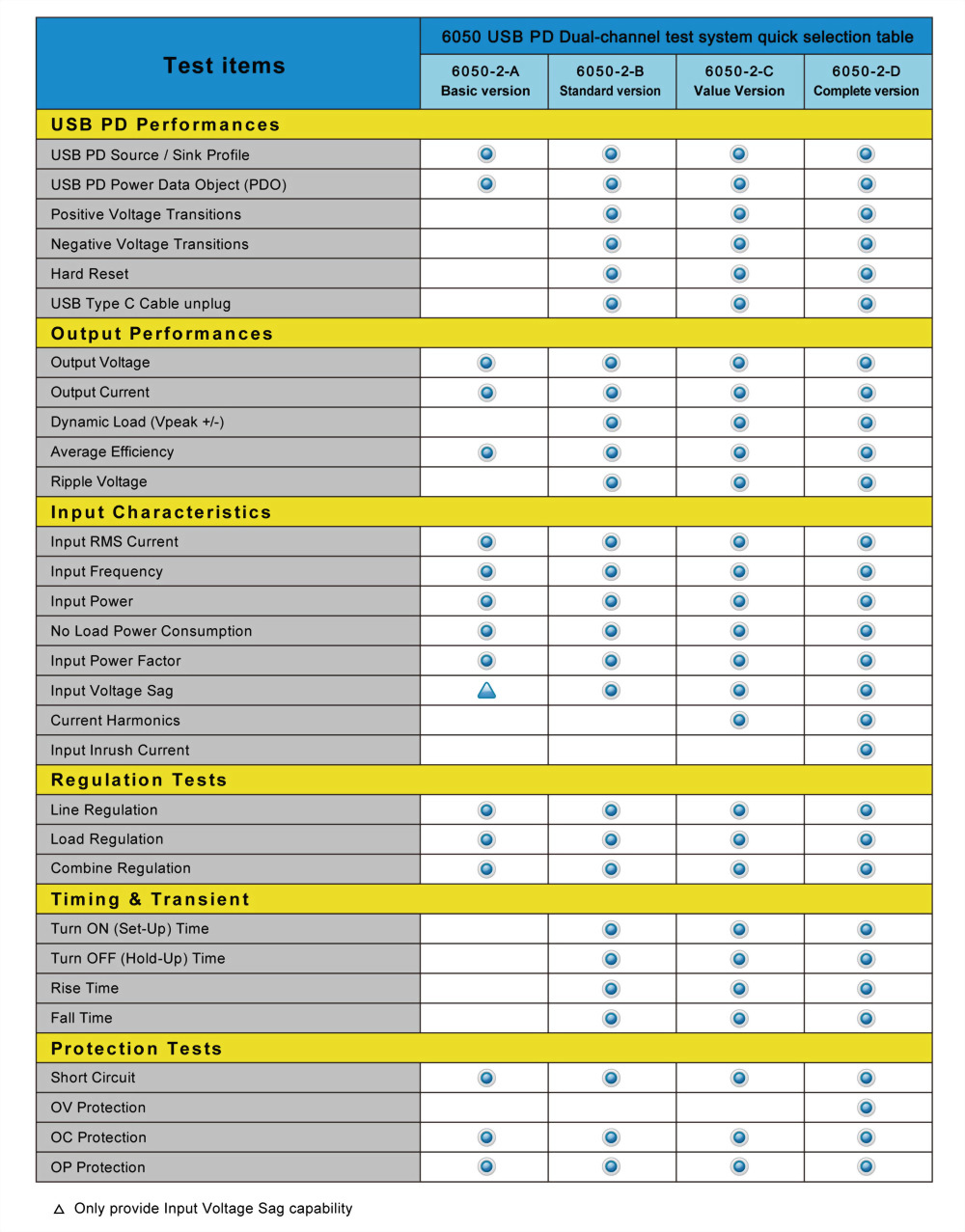

USB PD Dual-channel test system quick selection table

6050-2-A Single Output USB PD basic version：the dual-channel test system configuration is as shown in the table, just needs APS-7000 AC Source, 3305F + 3310F series and 9922-R Quick Charge Controller and 4013A-2 Power Meter.

The basic version system configuration is shown below.

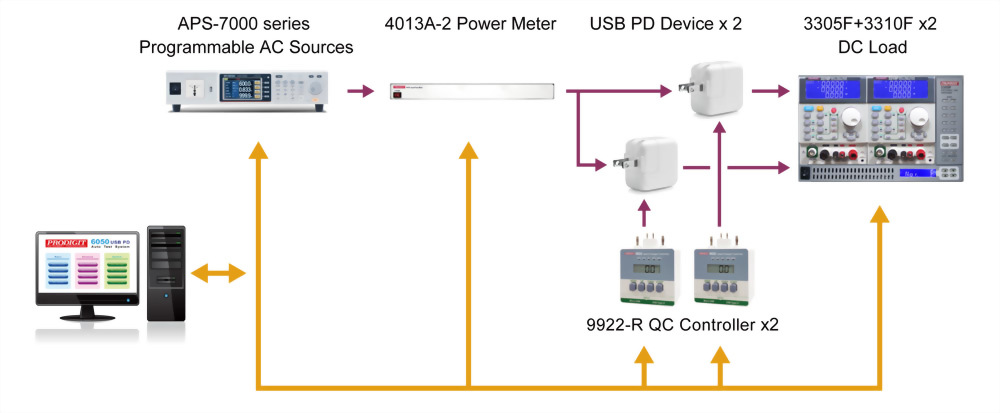

6050-2-A Basic version dual-channel test system block diagram

6050-2-A Dual Channel Test System Configuration

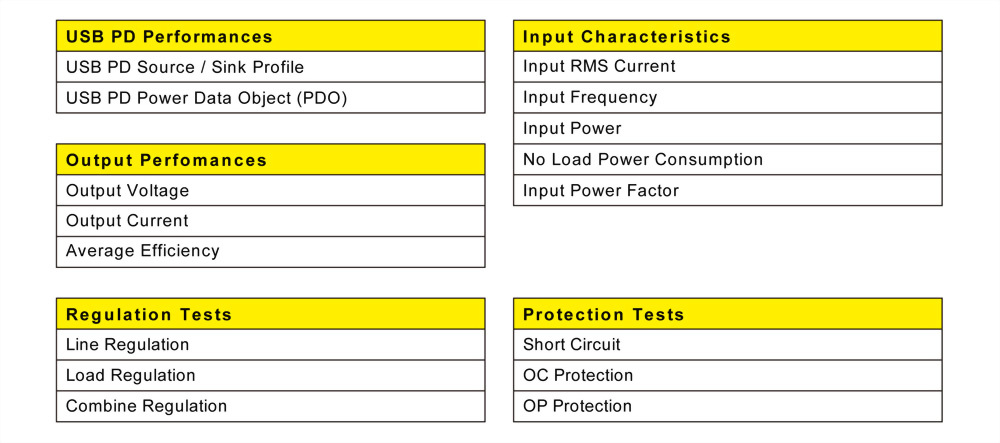

6050-2-A Basic version dual-channel test system test items are as follows

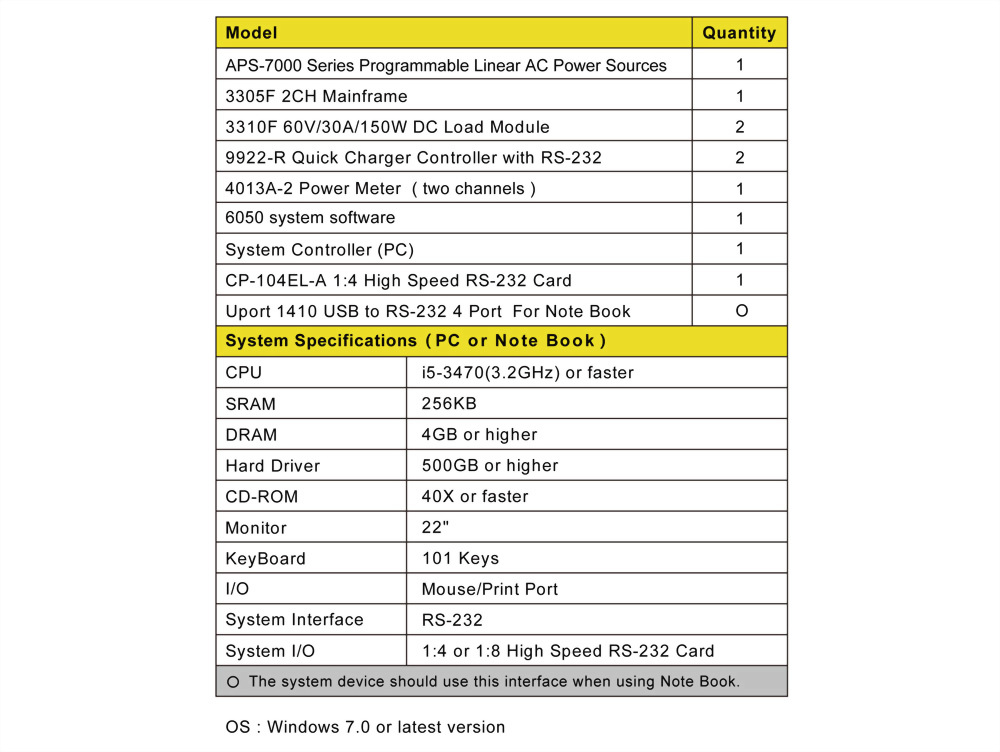

6050-2-A Basic version dual-channel test system equipment configuration table

6050-2-B Standard version dual-channel test system is consisted of basic version :

adding 4031-PD Timing & Noise Meter x 2 and 99094-2 two channels Quick Charger Controller can increase USB PD characteristics and timing and transient testing

The standard version system configuration is shown below.

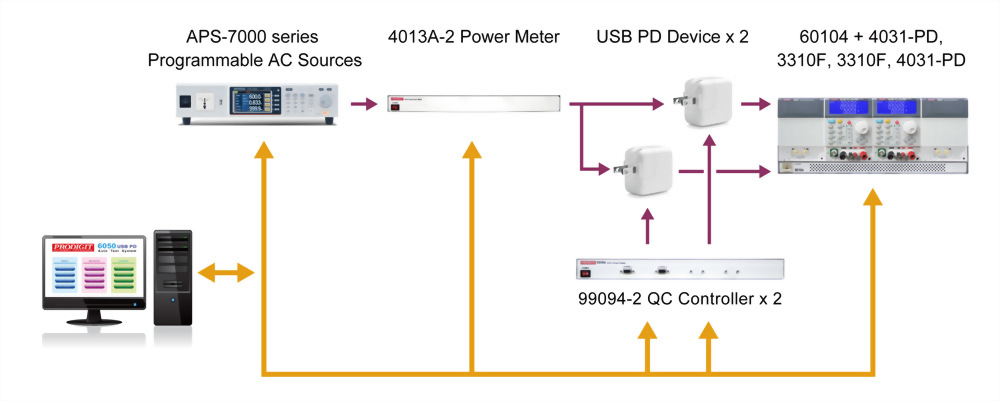

6050-2-B standard version dual-channel test system block diagram

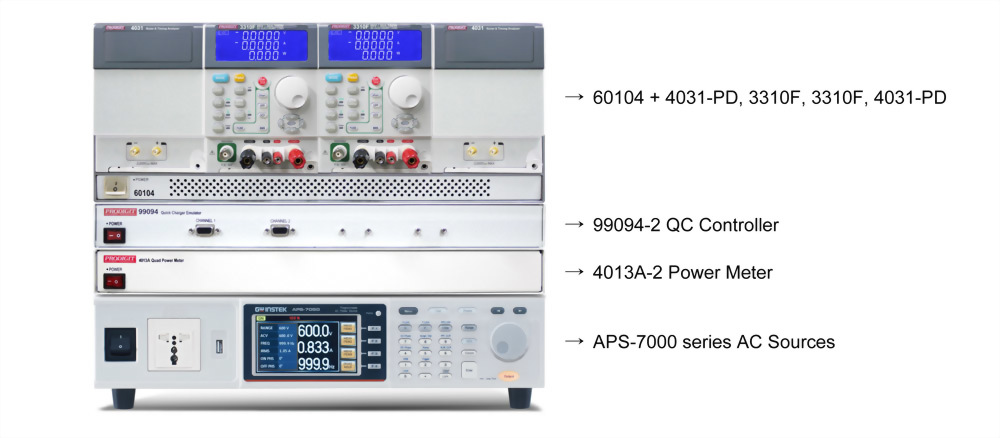

6050-2-B Dual Channel Test System Configuration

6050-2-B Standard version by adding 4031-PD x 2 and 99094-2 two channels

Quick Charger Controller can increase the test items as shown in the block below.

6050-2-B Standard version dual-channel equipment configuration table

6050-2-C Value version (Standard version + Input current harmonic) dual-channel test system :

changing 4013A-2 to 4015A-2 power meter with Harmonic can increase the current harmonic Harmonics test.

The value version system configuration is shown below.

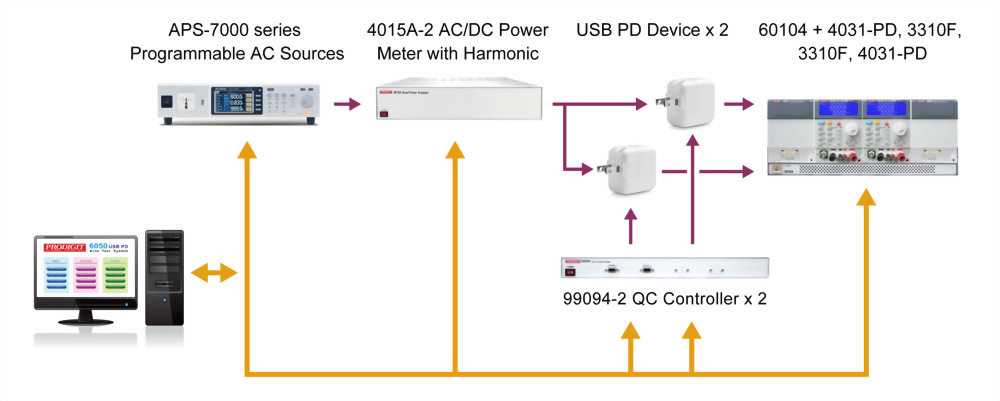

6050-2-C Value version dual-channel test system block diagram

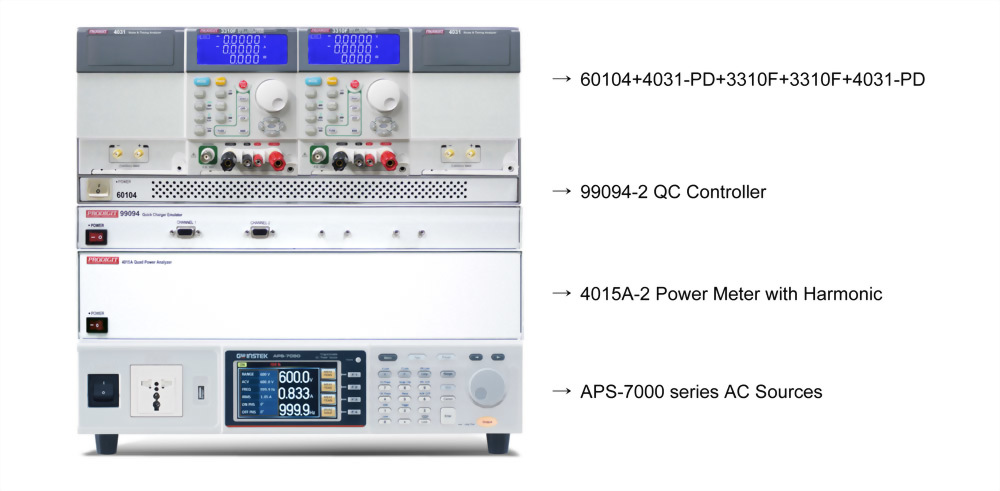

6050-2-C Dual Channel Test System Configuration

6050-2-C Value version dual-channel test system by adding 4015A-2 can increase the test items as shown in the following green block

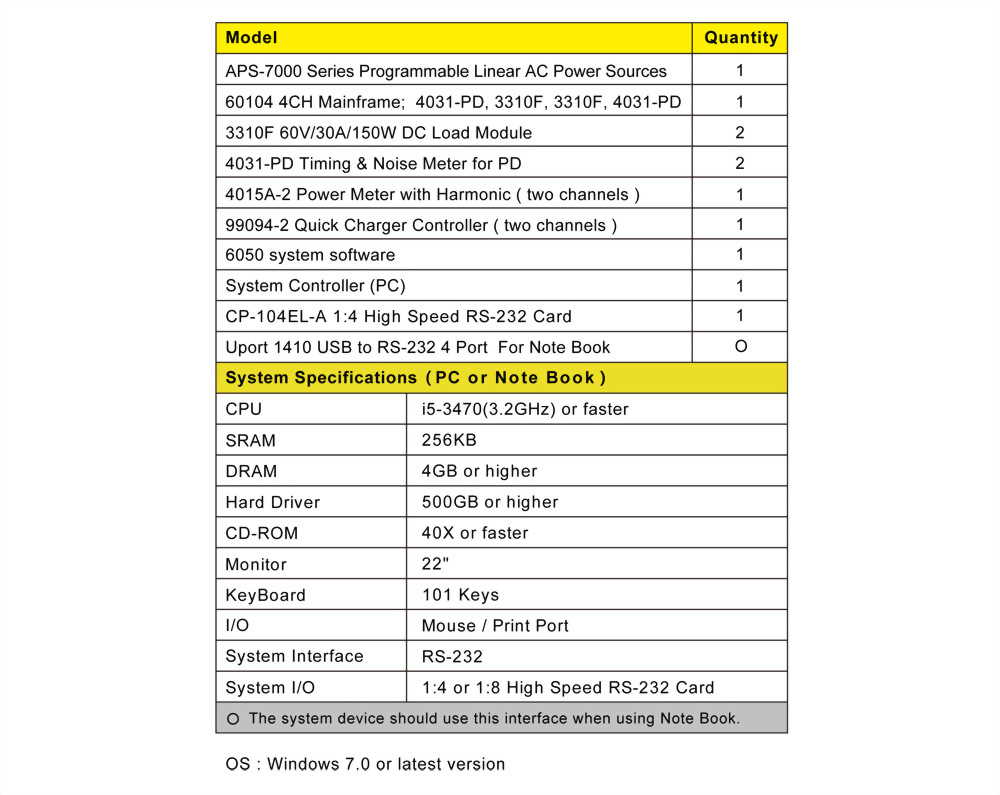

6050-2-C Value version dual-channel test system equipment configuration table

6050-2-D The Complete version (Standard version + Input Current Harmonics + Input Inrush Current) dual-channel test system : adds 5303 AVR and 5060-2 two channels OVP Source to increase Input Inrush Current and over voltage protection tests.

The Complete version system configuration is shown below.

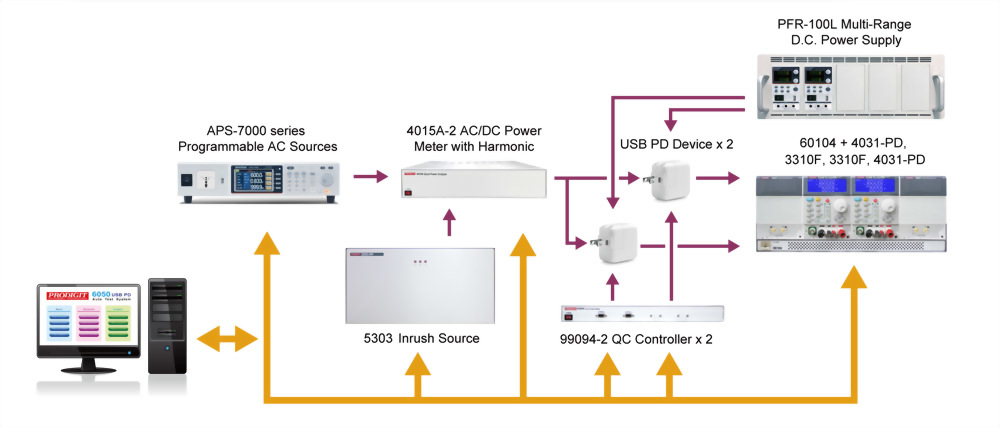

6050-2-D Complete version dual-channel test system block diagram

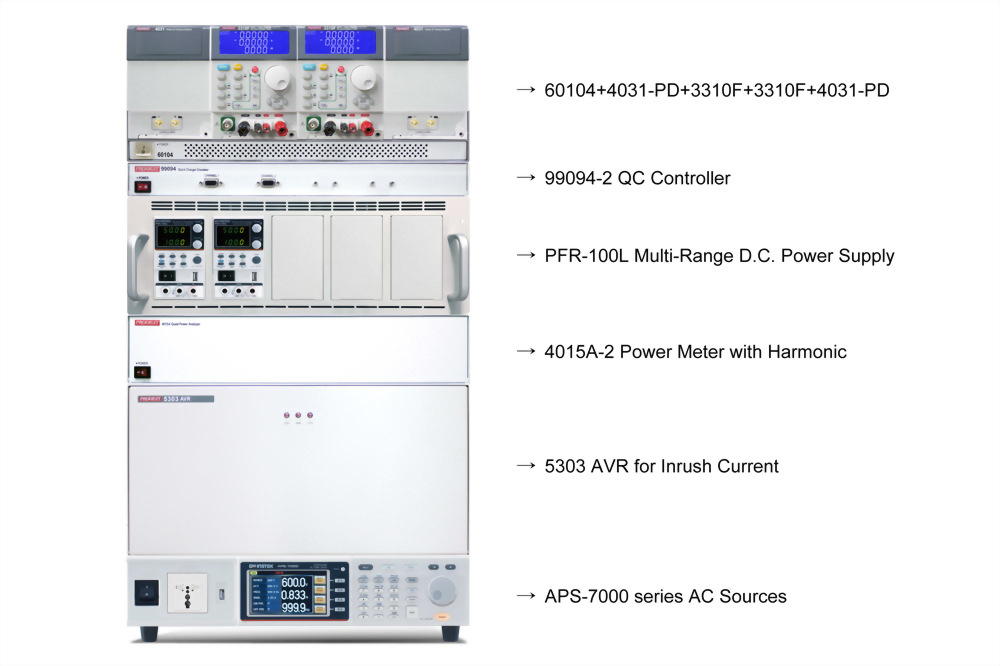

6050-2-D Dual Channel Test System Configuration

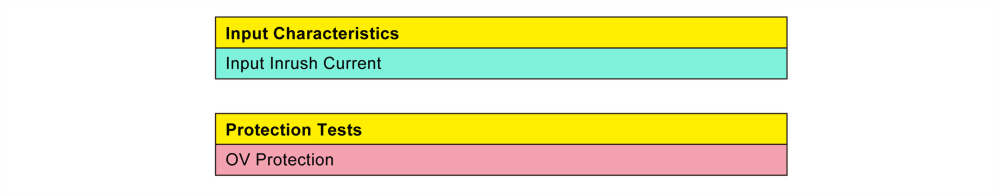

6050-2-D Complete version by adding 5303 and PFR-100L-2, the following items can be added to the test item

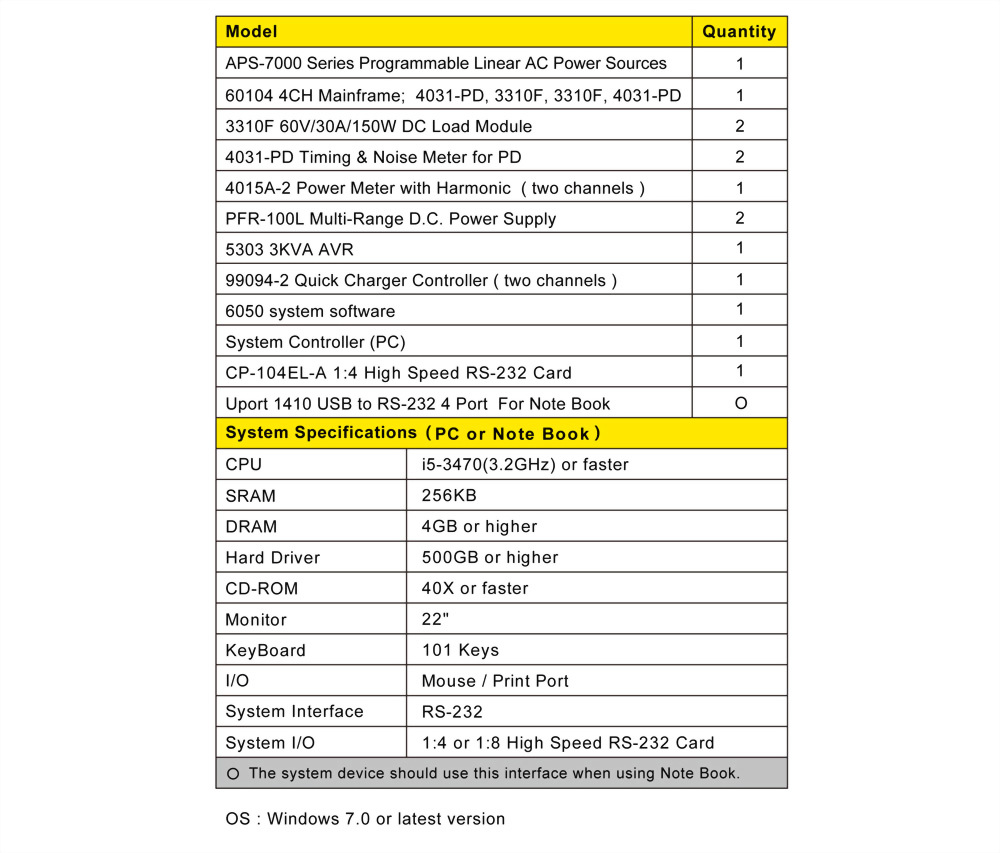

6050-2-D Complete version dual-channel equipment configuration table

6050-2-A （3310F）USB PD Dual-channel Test System（Basic version） 6050-2-B （3310F）USB PD Dual-channel Test System（Standard version）
6050-2-C （3310F）USB PD Dual-channel Test System（Value version） 6050-2-D （3310F）USB PD Dual-channel Test System（Complete version）
