4034 Noise and Timing Analyzer Module

Model : 4034




  • 4034-1 (1CH), 4034-2 (2CH), 4034 (4CH) can measure voltage noise and voltage and current ripple, and can be used for voltage and current overshoot measurement
  • For time (Set-up / Hold-up / Rise / Fall Time) and dimming measurement, 4034-1, 4034-2, and 4034 are also ideal test equipment

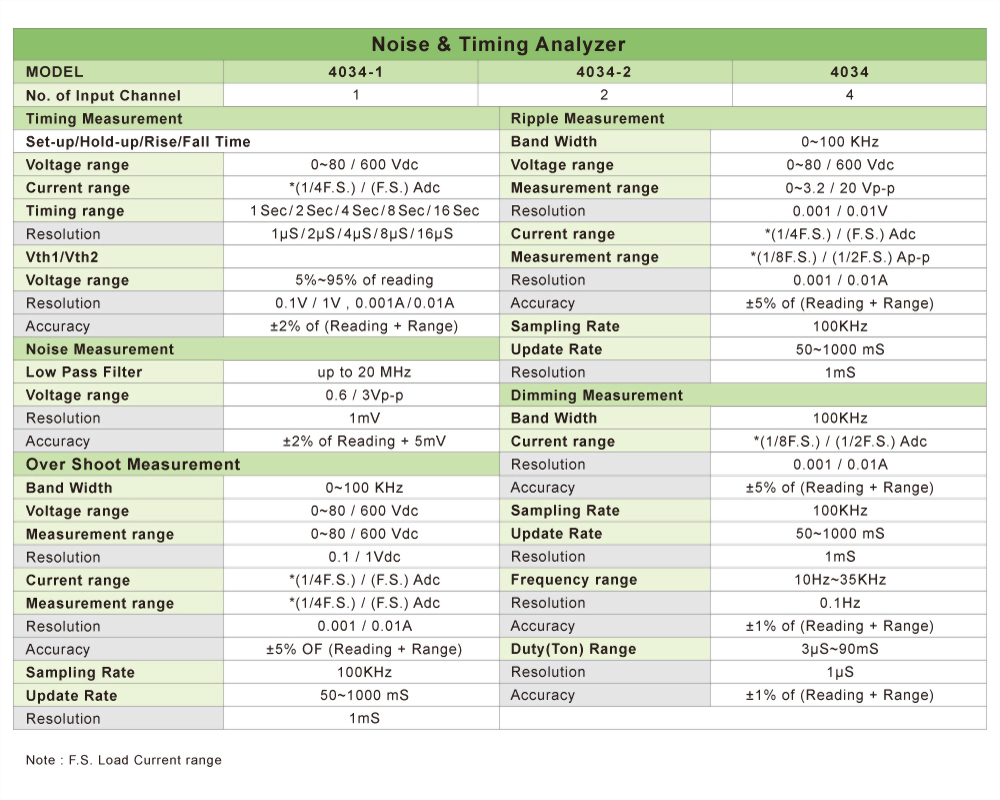

  • Set-up / Hold-up / Rise / Fall Time measurement
  • Noise measurement：up to 20MHz
  • Ripple measurement：0~100KHz
  • Ｏver-Shoot measurement：0~100KHz
  • Dimming measurement：100KHz

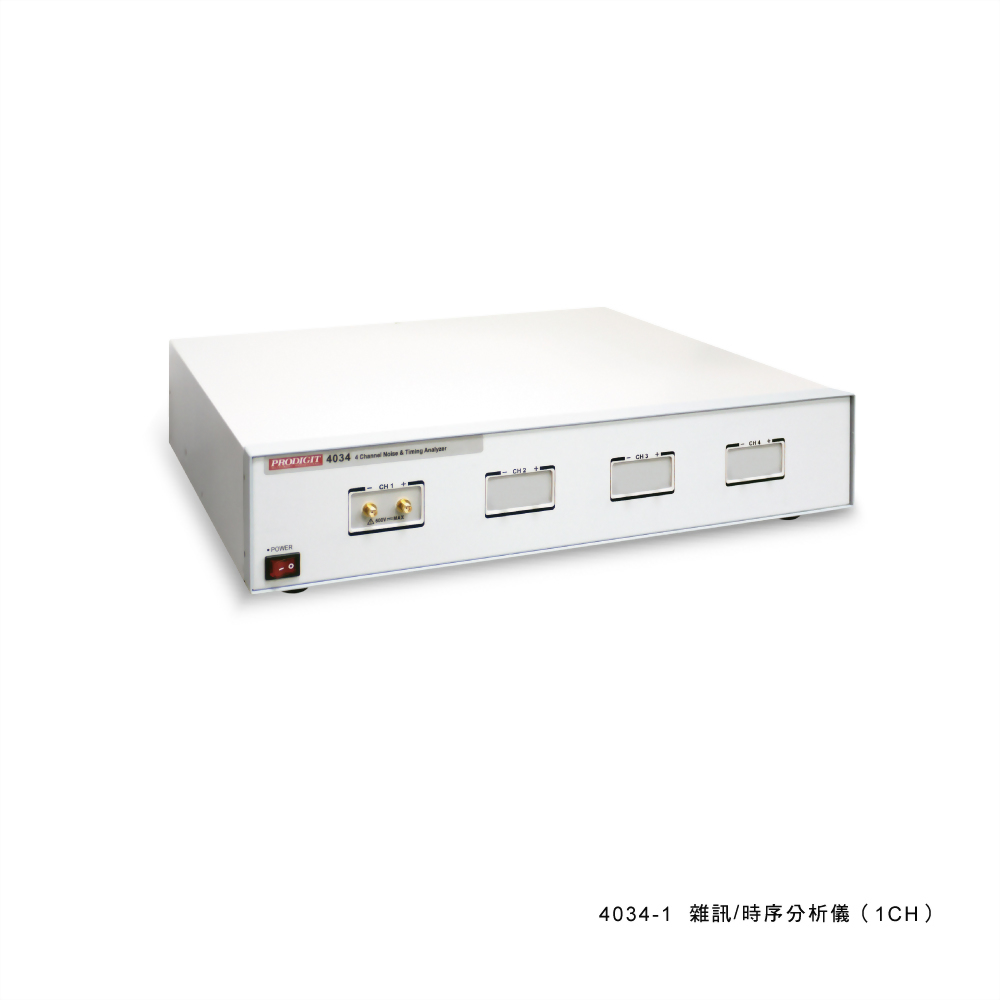

 4034-1  Noise and Timing Analyzer Module（1CH） 4034-2 Noise and Timing Analyzer Module（2CH）
 4034  Noise and Timing Analyzer Module（4CH）
