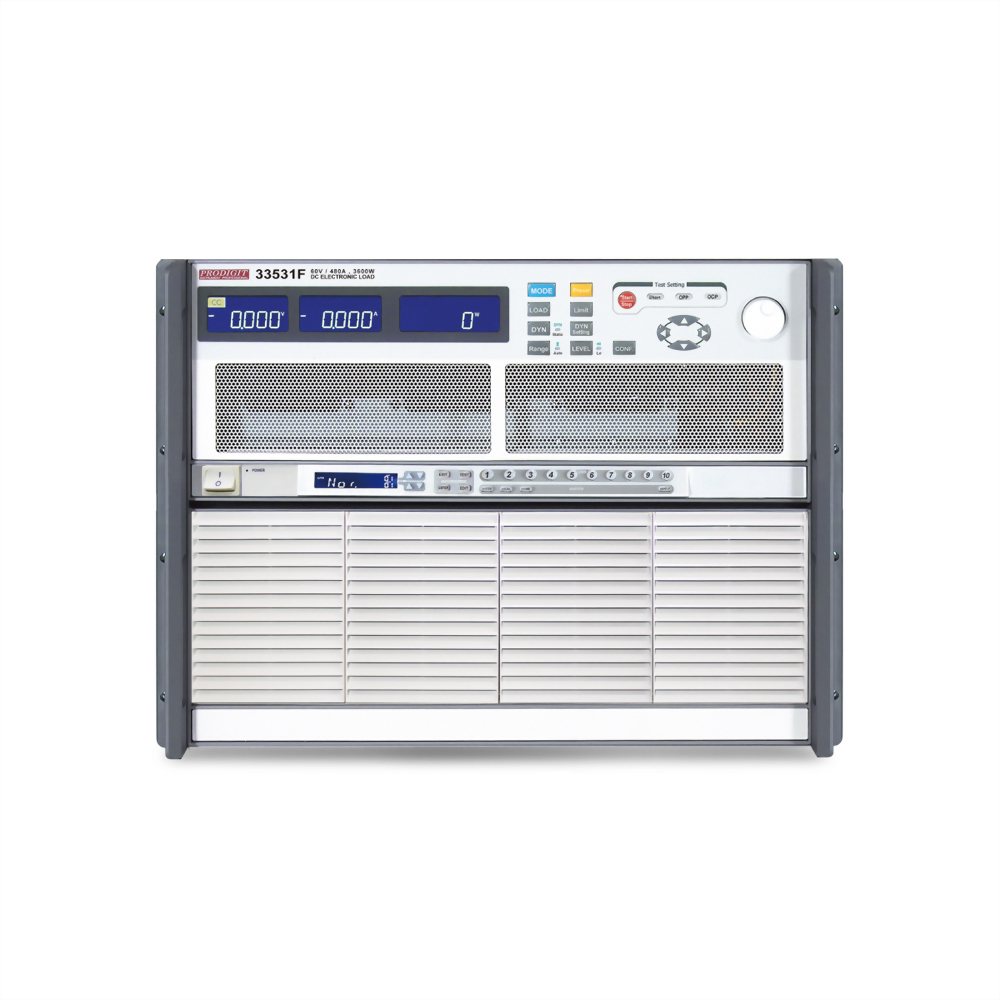

  • 33531F High Power DC Electronic Load_Desktop

33531F High Power DC Electronic Load 60V,480A,3600W

60V,480A,3600W
Model : 33531F

  • 33500F Series has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB、RS232、USB and LAN interface.
  • SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
  • Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.
  • Single key for OCP 、OPP test function will be more efficiency and accuracy on OCP、OPP testing.
  • Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ” +  “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.
  • 150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.
33500f-series-high-power-dc-electronic-load-specifications_01_en.jpg33500f-series-high-power-dc-electronic-load-specifications_02_en.jpg33500f-series-high-power-dc-electronic-load-specifications_03_en.jpg

  • 5 digit V/A/W Meter.
  • High-speed measurement and communication transmission.
  • Large LCD Display、setting values can be adjusted by rotary knob or push button.
  • Voltage、Current and Watt value can be displayed simultaneously.
  • OCP、OPP test function automatically.
  • Power ON status can be set.
  • CC, CR, CV, CP, Dynamic and Short operation mode.
  • SHORT time setting.
  • Protections against V,I,W, and °C.
  • Voltage meter display the polarity positive(”+”)or negative(”-”)is selectable.
  • Optional Interface : GPIB、RS232、USB、LAN.
  • New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads



  • Voltage / Current source
  • SMPS transient response
  • CV/Current limit testing and battery emulation
  • Battery charger
  • Battery discharge
  • R&D Quality Control
  • ATE system
  • Production testing
