4034A Noise and Timing Analyzer Module（Option：GPIB / RS-232 / USB / LAN）

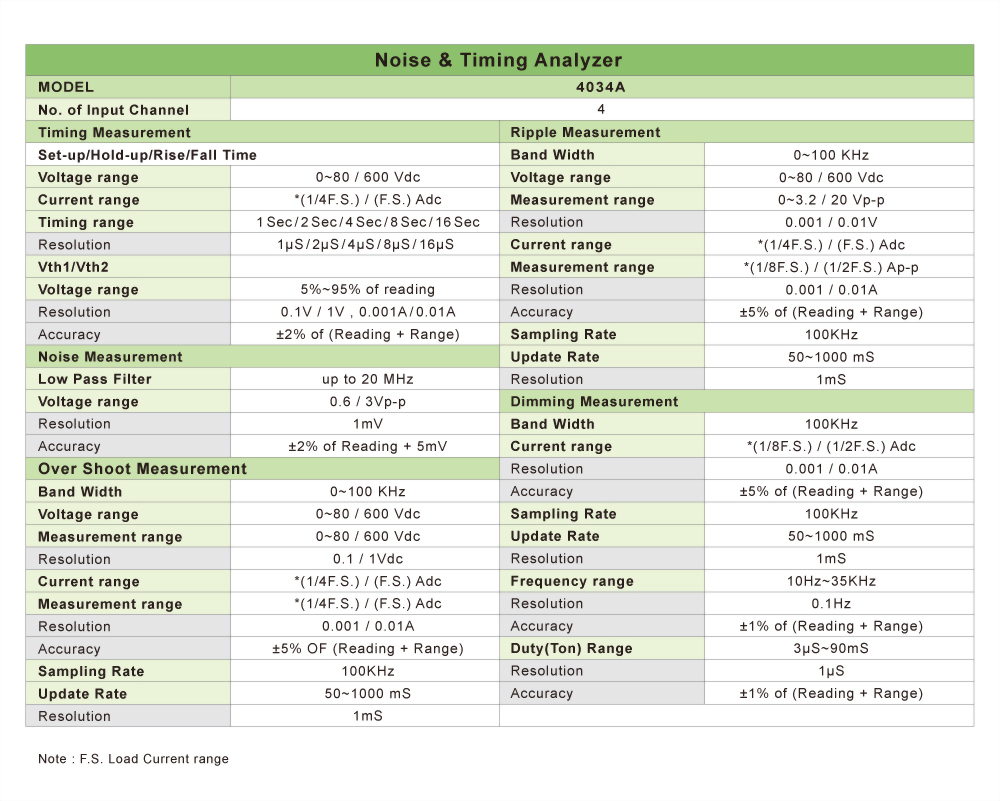

Model : 4034A


  • 4034A ( 4CH )  can measure voltage noise and voltage and current ripple, and can be used for voltage and current overshoot measurement
  • For time ( Set-up / Hold-up / Rise / Fall Time ) and dimming measurement, 4034A are also ideal test equipment




  • Set-up / Hold-up / Rise / Fall Time measurement
  • Noise measurement：up to 20MHz
  • Ripple measurement：0~100KHz
  • Ｏver-Shoot measurement：0~100KHz
  • Dimming measurement：100KHz
  • Option：GPIB / RS-232 / USB / LAN


 4034A  Noise and Timing Analyzer Module（4CH） GPIB Card
 RS-232 Card  USB Card
 LAN Card
